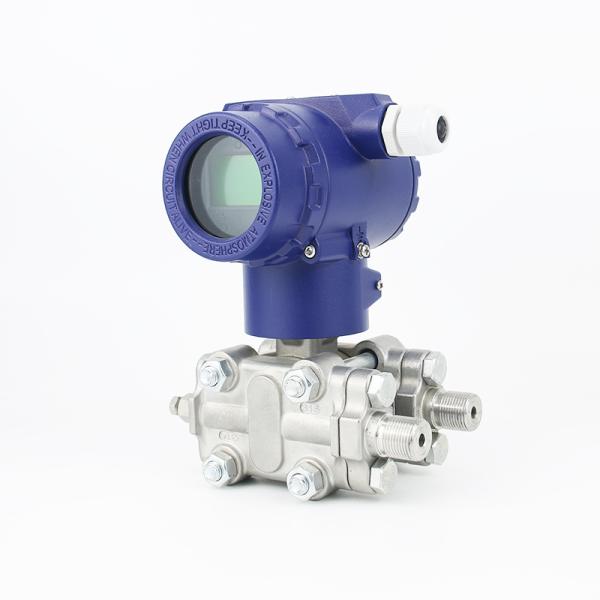

YD3051 Differential Pressure Transmitter featuring temperature compensation and Hart protocol communication for and accurate process control
YD3051 Differential Pressure Transmitter featuring temperature compensation and Hart protocol communication for and accurate process control
Specifications
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
MOQ :
10
Supply Ability :
5000 units per month
Place of Origin :
China
Pressure Range :
0- 0.1kPa...40MPa
Sensor :
ceramic capacitor
Price :
USD$192/UNIT
Packaging Details :
Standard export carton packing.
Power Supply :
DC 12V~36V
Certification :
CE,ROHS,Exd Ⅱ CT6，Exia Ⅱ CT4
Pressure port :
NPT1/4 + Φ14, OEM
Accuracy :
0.1%FS; 0.25%FS ;0.5%FS optional
Delivery Time :
15-60 days
Model Number :
YD-3051
Output :
4~20mA /4~20mA+Hart
Hart Protocol :
Available
Media Temperature :
40°C~120°C
Warranty :
1years
Brand Name :
YUNYI
Material :
stainless steel
Description
YD3051 series intelligent pressure/differential pressure transmitters, the central sensing unit adopts the world's leading high-precision silicon pressure and differential pressure sensor technology and packaging process. The single crystal silicon pressure and differential pressure sensor is located at the top of the metal body, away from the contact surface of the medium. To achieve mechanical isolation and thermal isolation; The sensor lead of glass sintering unit realizes high-strength electrical insulation with the metal substrate, which improves the flexibility of electronic circuits and the ability to withstand transient voltage protection. The circuit adopts a modular design with a microprocessor as the core and assisted by advanced digital isolation technology, so that the instrument has extremely high anti-interference and stability.
The Hart protocol is used for communication, which can be remotely operated through a Hart handheld communicator or a computer installed with Hart software to complete the measurement information configuration. At the same time, the digital compensation technology is used, and the transmitter is compensated through the built-in temperature sensor to improve the accuracy, temperature drift is reduced and features good long-term stability and high reliability. The most user-friendly design of the external one-key reset function meets the requirements of safe operation in hazardous situations. The shortcut menu is convenient for operation, and can complete all parameter settings, which comprehensively improves the performance of the transmitter.
Features
1.Advanced monocrystalline silicon pressure sensor technology and packaging technology adopted;
2.Modulariza on design with microprocessor as the core and assisted by advanced digital isola on technology, which makes it with high an -interference and stability;
3.Powerful 24-bit ADC achieves high precision;
4.Innovative dual compensa on technology, 0.05% high precision.
