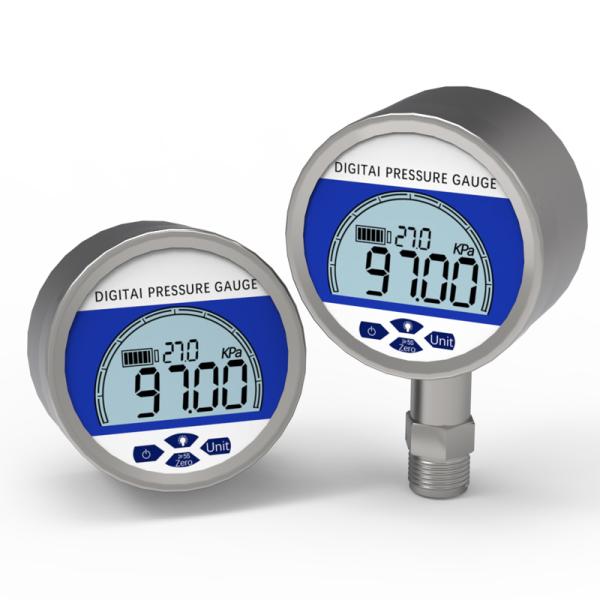

Digital Atmospheric Pressure Gauge
Digital Atmospheric Pressure Gauge
Specifications
Place of Origin :
CHINA
MOQ :
1 Piece
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Supply Ability :
1000pcs per month
Price :
negotiable
Brand Name :
YUNYI
Model Number :
YDW3051
Description

Overview

The XY3042 is an intelligent digital pressure gauge for online measurement. Built with a premium pressure sensor and a low‑power microcontroller, it delivers accurate, stable readings in harsh industrial environments – without external power.

Key Features at a Glance

  • Smart microcontroller design for high accuracy and stability

  • 3.6V / 3.0V battery powered – ultra‑low power, long working life

  • Corrosion & vibration resistant – ideal for demanding sites

  • Temperature compensation built‑in – no manual correction needed

  • Multi‑unit support – KPa, MPa, bar, Psi, mH₂O, mmHg, kgf/cm², and more

  • 5‑digit dynamic display with backlight and zero reset button

  • Easy installation – direct thread connection (standard M20×1.5)

Main Technical Data (No Tables)

  • Measurement range: 0 ~ 25 MPa (absolute / gauge / differential available)

  • Accuracy options: 0.2%FS or 0.5%FS

  • Media temperature: –20°C to +80°C

  • Working environment: –10°C to +60°C, ≤80% RH

  • Pressure types supported: gauge, absolute, differential

  • Available configurations: standard, explosion‑proof, diaphragm type

Typical Applications

  • Petroleum & gas pipeline monitoring

  • Chemical reactor and tank pressure control

  • Aerospace ground support

  • Food & pharmaceutical cleanroom pressure

  • HVAC, environmental monitoring, laboratory calibration
