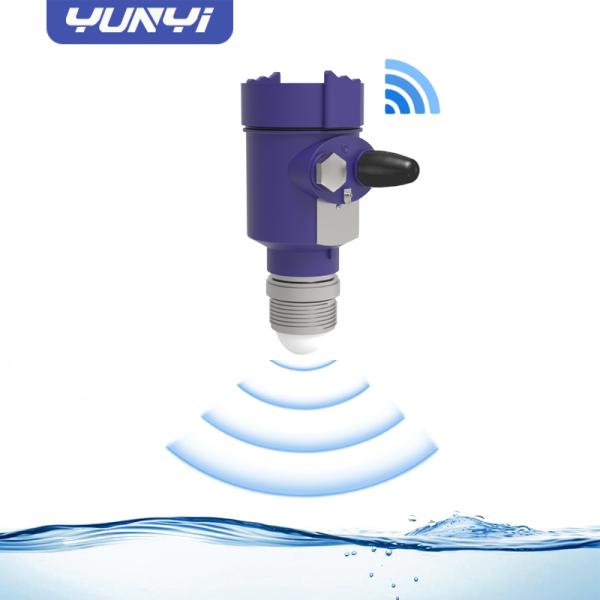

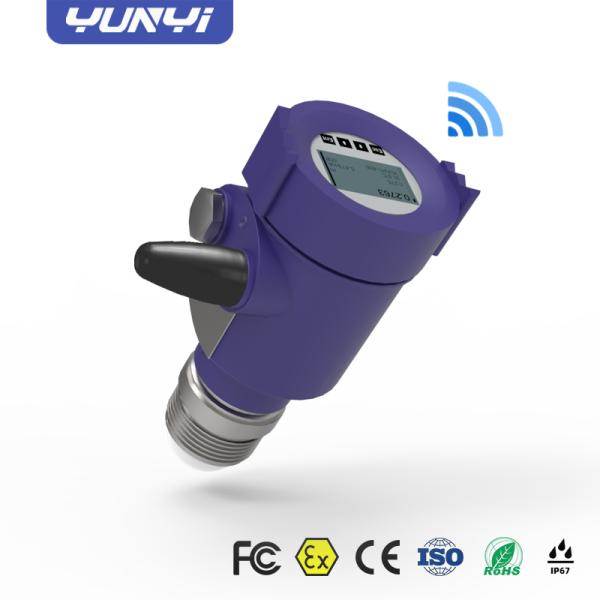

Wireless Anti-interference 80GHz FMCW Radar Level Meter Industrial Radar Level Transmitter for Harsh Working Condition Non-contact Level Transmitter Long Service Life
Wireless Anti-interference 80GHz FMCW Radar Level Meter Industrial Radar Level Transmitter for Harsh Working Condition Non-contact Level Transmitter Long Service Life
Wireless Anti-interference 80GHz FMCW Radar Level Meter Industrial Radar Level Transmitter for Harsh Working Condition Non-contact Level Transmitter Long Service Life
Wireless Anti-interference 80GHz FMCW Radar Level Meter Industrial Radar Level Transmitter for Harsh Working Condition Non-contact Level Transmitter Long Service Life
Wireless Anti-interference 80GHz FMCW Radar Level Meter Industrial Radar Level Transmitter for Harsh Working Condition Non-contact Level Transmitter Long Service Life
Wireless Anti-interference 80GHz FMCW Radar Level Meter Industrial Radar Level Transmitter for Harsh Working Condition Non-contact Level Transmitter Long Service Life
Wireless Anti-interference 80GHz FMCW Radar Level Meter Industrial Radar Level Transmitter for Harsh Working Condition Non-contact Level Transmitter Long Service Life
Wireless Anti-interference 80GHz FMCW Radar Level Meter Industrial Radar Level Transmitter for Harsh Working Condition Non-contact Level Transmitter Long Service Life
Wireless Anti-interference 80GHz FMCW Radar Level Meter Industrial Radar Level Transmitter for Harsh Working Condition Non-contact Level Transmitter Long Service Life
Wireless Anti-interference 80GHz FMCW Radar Level Meter Industrial Radar Level Transmitter for Harsh Working Condition Non-contact Level Transmitter Long Service Life
Wireless Anti-interference 80GHz FMCW Radar Level Meter Industrial Radar Level Transmitter for Harsh Working Condition Non-contact Level Transmitter Long Service Life
Wireless Anti-interference 80GHz FMCW Radar Level Meter Industrial Radar Level Transmitter for Harsh Working Condition Non-contact Level Transmitter Long Service Life
Specifications
Customized Support :
OEM, ODM, OBM
Cable Material :
PE, PU, PTFE
Display Accuracy :
1mm
Medium Temperature :
-40~120℃
Temperature :
-40~250℃ / -40~150℃
Mobile :
18878952222
Model Number :
Wireless Radar Level Transmitter
Place of Origin :
China
Resolution :
1mm
Environment Temperature :
-40~250℃
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500pcs/week
Delivery Time :
15·30days
Packaging Details :
Satndard packing
Procession Connection :
Thread, Flange
Smart App :
Tuya App
Brand Name :
YUNYI
MOQ :
10
Price :
$230/unit
Measurement Accuracy :
3mm or 0.1%
Protection :
IP68
Measure Range :
60m
Warranty :
1 year
Process Connection :
Flange / Thread / Clamp
Certification :
CE,RoHs,Explosion-proof
Description

Profiles

The wireless radar level gauge utilizes 80GHz high-frequency frequency-modulated continuous wave (FMCW) technology, combined with industrial IoT architecture (LoRA/4G), to achieve high-precision non-contact measurement in dusty, steamy, and foamy environments. With millimeter-level wavelength penetration through interfering media, it captures level/material level changes with ±1mm resolution, completely eliminating measurement errors caused by compromises in traditional instruments due to operating conditions. With IP69K protection and intrinsically safe design, it provides a maintenance-free ultimate monitoring solution for industries such as chemicals, energy, and metallurgy.

Characters

  • 76GHz-81GHz FM wave radar
  • 5GHz ultra-large FM scanning frequency width, wide application
  • Support standard HART, RS485/MODBUS bus protocol
  • Support host computer setting software, tank side meter, etc. operation modes
  • 24Vdc power supply
  • Simple installation structure

Applications

  • The electromagnetic wave emission angle of the product is less than 3°, which is suitable for narrow space or guided wave pipeline measurement;
  • It can reach a measurement range of 120m, suitable for the measurement of large storage tanks;
  • The measurement blind area is in the range of 7-8CM, suitable for small storage tanks;
  • The the measurement accuracy is suitable for high-precision measurement;
  • It has a wealth of echo processing algorithms and data of various working conditions; it has unique advantages in storage tank applications that challenge other similar products in extremely harsh working conditions such as strong dust, steam, or special process storage tanks with stirring and heating rods.
