High Precision Digital Pressure Gauge Water Gas Pressure Manometer
High Precision Digital Pressure Gauge Water Gas Pressure Manometer
High Precision Digital Pressure Gauge Water Gas Pressure Manometer
High Precision Digital Pressure Gauge Water Gas Pressure Manometer
High Precision Digital Pressure Gauge Water Gas Pressure Manometer
High Precision Digital Pressure Gauge Water Gas Pressure Manometer
High Precision Digital Pressure Gauge Water Gas Pressure Manometer
High Precision Digital Pressure Gauge Water Gas Pressure Manometer
Specifications
Brand Name :
Yunyi
Model Number :
YK-60
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
49.9~59.9USD/PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs per week
Delivery Time :
10 work days
Packaging Details :
Carton Packaging
Name :
High Precision Pressure Meter Water Gas Manometer Digital Pressure Gauge
Measuring range :
-0.1 ~ 0 ~ 100 mpa
Accuracy class :
0.4%,0.2%
The stability : :
≤0.1% /year
Overload capacity : :
200%
Ambient temperature: :
- 20 °C ~ 70 °C
Description

High Precision Pressure Meter Water Gas Manometer Digital Pressure Gauge

Description

The digital pressure gauge is mainly composed of a housing, a pressure sensor and a signal processing circuit, and has the advantages of high precision, good corrosion resistance, impact resistance, shock resistance, small temperature drift, and good stability; the micro power processor can be used to continuously Use time

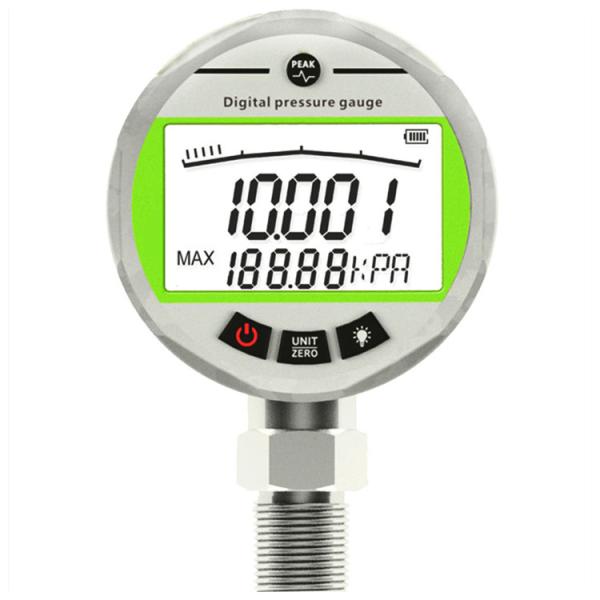

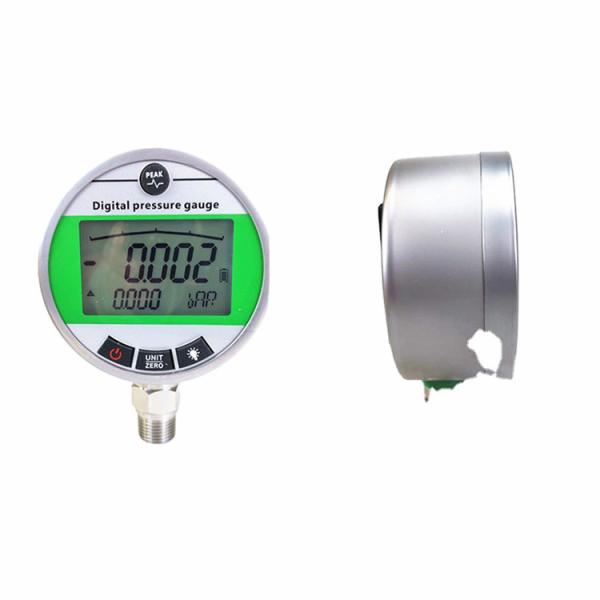

Detailed Image

High Precision Digital Pressure Gauge Water Gas Pressure ManometerHigh Precision Digital Pressure Gauge Water Gas Pressure ManometerHigh Precision Digital Pressure Gauge Water Gas Pressure Manometer


Specification

Range -0. 1~0~ 100MPa Accuracy 0. 1 ,0.2 ,0.25,0.4 ,0.5
Overload capacity 1.5 times full Pressure Type

Vacuum,Gauge,Absolute

Pressure
Response time: ≤50ms

Battery voltage

AAA 7 batteries

(3V),Lithium

battery,External 220V/24V

Display

up to 5 dynamic

pressure display

Measuring medium:

 water, gas, etc. compatible with stainless steel
Medium temperature: -20~80.C Relative humidity ≤ 80%
Connection size M20x1.5 Male or oem Pressure unit MPa/KPa/Bar/Psi/mBar
Case material ABS plastic Working temperature: - 10~60.C

Features
1. The keys are made of rubber conductive keys, which are gentle to touch, easy to rebound, and have a longer life span.
2 . The instrument interface use stainless steel, high hardness, impact resistance, anti-rust and anti-fouling
3. FSTN large LCD screen, clear display, easy to read, viewing angle and low temperature resistance performance is stronger than ordinary STN
4 . Using high-precision imported AD chip, low power consumption and fast processing speed
5. Optimized circuit design, reduce signal transmission loss, accurate sensing, accurate measurement
6. One-key zero calibration, long press the zero key under atmospheric pressure to calibrate the zero.
7 . The backlight time can be set freely. Long press the backlight to adjust the duration of the backlight.
8 .Muti dispaly unit likeMpa,kpa,bar,pa,mH2O,mmH2o,kg/cm2,psi,mmHg,mbar,in.Hg,in.WC based on different Range,default 3-5 type.

Application
Used to petroleum, chemical industry, power plant, water supply of town, Horologic exploration fields.

Contact US
Xi'an Yunyi Instrument Co., Ltd
E-mail: judy@369yb.com
Phone/WhatsApp:0086 17602903009
Add.: Room B11003, 10th Floor, Sihai Center, No. 424, Taihua North Road, Weiyang District, Xi'an 710021, Shaanxi,China
