5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
Specifications
Brand Name :
Yunyi
Model Number :
YD38
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
150~240USD/PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs per week
Delivery Time :
10 work days
Packaging Details :
Carton Packaging
Pressure range :
-0.1-100Mpa
Output :
4-20mA 2 wire, 0-10V,0-5V,1-5V 3 wire
Power :
10-30VDC
Thread :
1/2-20UNF ,custom
Temperature :
-40-300C
Vibration :
20HZ-1KHZ to mechanical vibration
Description

Pressure Sensor 200 to 400 Celsius Injection Machine High Temperature Melt Pressure Transducer

Product Description

Description of melt pressure transducer high temperature melt pressure sensor

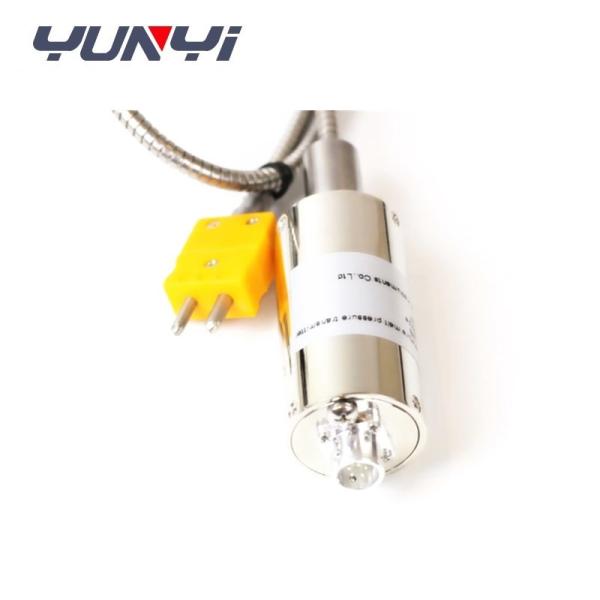

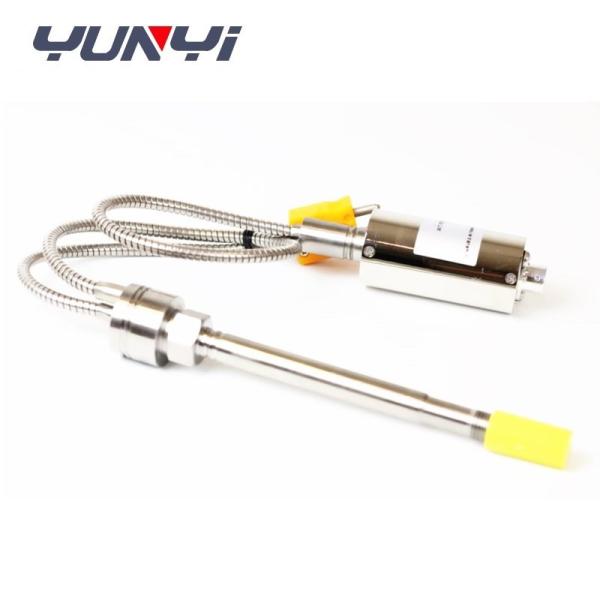

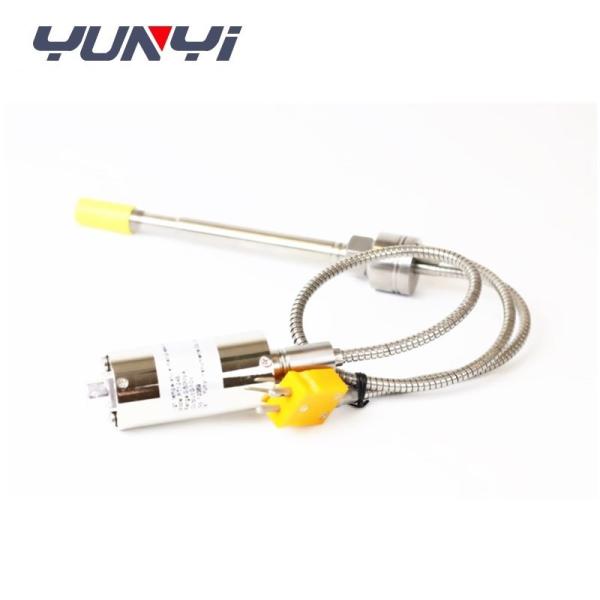

melt pressure transducer high temperature melt pressure sensor (Flexible stem) can measure the pressure and temperature in one point .The model PT124B-121T is with thermocouple. This melt pressure transducer can be utilized together with the PY Series Intelligent Digital Pressure Instrument. the melt pressure sensor Zero & full span can be adjustable, amplify signal output can be connected with PLC, with advantages of high precision and reliable pressure measuring and good quality and internal 80% calibration.

Detailed Images
5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
Specification
Item
melt pressure transducer high temperature melt pressure sensor
Range:
0....3.5Mpa to 0....150MPa
Overall accuracy:
±1%FS;±1.5%FS
Output:
0~5V; 0~10V; 4-20mA; 2mV/V; 3.33mV/V
Calibration signal:
80% FS calibration; zero and span adjustment
Excitation
24VDC; 10VDC
Repeatability
±0.2%
Construction
Wheatstone bridge
Bridge resistance
350 ohms±10%
Overload pressure
1.5×FSO
Supply voltage:
Sensor: 10VDC (6-12VDC) transmitter: 24VDC (9 ~ 36 V)
Long-term stability:
0.1% FS / year
Insulation resistance:
1000Megohms @50Vdc
Max Diaphragm Temp:
0~350℃
Thermocouple type
J,K,E,PT100 Optional(PT124B-121T)
Electric connector
5PIN, 6PIN
Process connector
1/2″-20UNF, M14×1.5, M18×1.5(Customer Design)
Product Keywords
high temperature melt pressure transmitter /melt pressure sensor
Features

Feature of melt pressure transducer

 Stainless steel welding
 Easy to install
 Zero and span adjustable
 Various amplified signals optional
 Internal 80% shunt calibration
 Good stability and anti-jamming capability
 Excellent stability and repeatability

5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
Application

Application of high temperature melt pressure sensor

 Chemical fiber Equipment
 Plastic and Rubber manufacturing equipment
 Medicine & Food process equipment
 Measurement and Control all kinds of melt fluid

5V High Temperature Melt Pressure Transducer 400 Celsius For Injection Machine
