Differential Piezoresistive Pressure Sensor Industrial Silicon 10KPa
Differential Piezoresistive Pressure Sensor Industrial Silicon 10KPa
Differential Piezoresistive Pressure Sensor Industrial Silicon 10KPa
Differential Piezoresistive Pressure Sensor Industrial Silicon 10KPa
Differential Piezoresistive Pressure Sensor Industrial Silicon 10KPa
Differential Piezoresistive Pressure Sensor Industrial Silicon 10KPa
Specifications
Brand Name :
Yunyi
Model Number :
YPS-19
Certification :
/
Place of Origin :
China
MOQ :
1
Price :
$16
Payment Terms :
T/T, Western Union
Supply Ability :
200 per week
Delivery Time :
10 works day
Packaging Details :
standard
Measurement range :
0~10KPa~100Mpa
Output impedance :
2.5KΩ~6KΩ
Input impedance :
3KΩ~6KΩ
Insulation resistance :
≥100MΩ/50VDC
Description

Description Industrial silicon differential Piezoresistive Pressure Sensor

YPS-19 is 316L SS Piezoresistive Silicon Pressure Sensor , the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensing element uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction. It has high reliability and stability.

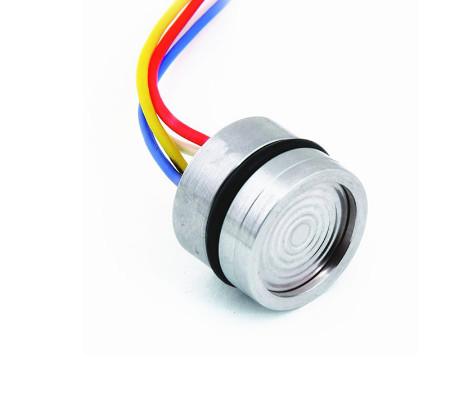

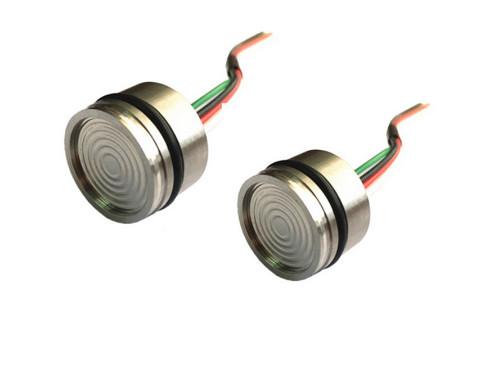

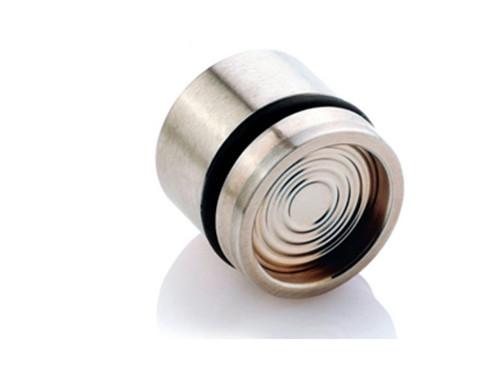

Detailed Images Industrial silicon differential Piezoresistive Pressure Sensor
Differential Piezoresistive Pressure Sensor Industrial Silicon 10KPaDifferential Piezoresistive Pressure Sensor Industrial Silicon 10KPa

Specification Industrial silicon differential Piezoresistive Pressure Sensor

Parameters

Range:0~10KPa,20KPa,35 KPa,70 KPa,100 KPa,200 KPa, 350 KPa,700 KPa,1MPa,2MPa,3.5 MPa,7 MPa,10 MPa,

20 MPa,35 MPa,60 MPa,70 MPa,80 MPa,90 MPa,100 MPa

Typical

Max.

Units

Pressure Non-linearity

±0.15 (0~2MPa)

±0.2 (3.5MPa ~100MPa)

±0.3

%F.S

Pressure Repeatability and Hysteresis

0.02

0.05

%F.S

Zero Output

0±1

0±2

mV

Span Output

≤20KPa

50±10

50±30

mV

≥35 KPa

100±10

100±30

mV

Temperature Error-Zero

≤20KPa

±1

±2

%F.S

≥35 KPa

±0.5

±1

%F.S

Temperature Error-Span

≤20KPa

±1

±2

%F.S

≥35 KPa

±0.5

±1

%F.S

Proof Pressure

3X Rated range or 120MPa, whichever is less

-------

Operating Temperature Range

-20~80

℃

Compensated Temperature Range

0~70, 0~50(Range≤20KPa)

℃

Storage Temperature Range

-40~125

℃


Features Industrial silicon differential Piezoresistive Pressure Sensor

Measurement range: 0~10KPa~100Mpa

O-ring mount

High Accuracy and stability

Piezoresistive silicon sensing element
Full 316L Stainless steel


Applications Industrial silicon differential Piezoresistive Pressure Sensor

Measurement pressure of gas and liquid

Petroleum exploitation
Water supply,warm supply of town

Process control system
Aviation and navigation inspection

Hydraulic pressure
