Adjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog Vacuum
Adjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog Vacuum
Adjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog Vacuum
Adjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog Vacuum
Adjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog Vacuum
Adjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog Vacuum
Adjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog Vacuum
Adjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog Vacuum
Adjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog Vacuum
Adjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog Vacuum
Specifications
Brand Name :
Yunyi
Model Number :
Differential Pressure Switch sensor
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
4.5~16.5USD/PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs per week
Delivery Time :
7 work days
Packaging Details :
Carton Packaging
Name :
Differential Pressure Switch
Pressure limit :
10KPa
Working temperature :
-20~ 85°C
Storage temperature :
-40~85°C
Electrical connections :
φ6.0mm plastic pipe, P1 high and P2 low pressure
Medium :
Air, non-combustible and non-corrosive gases
Description

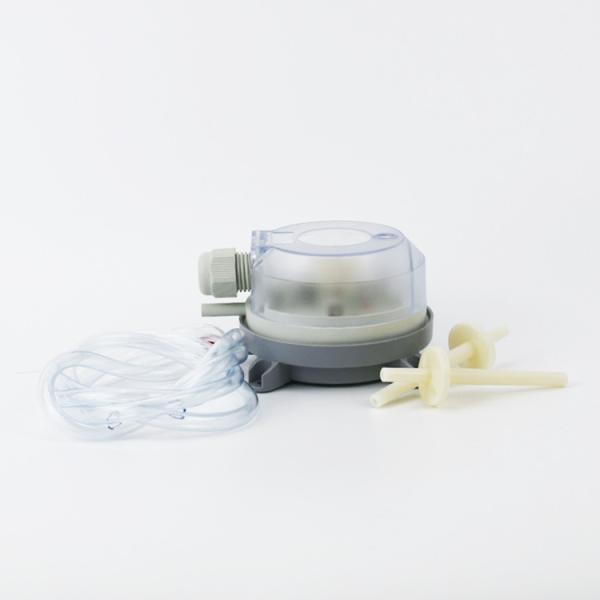

Diaphragm Analog Vacuum Adjustable Wind Air Differential Pressure Control Switch Sensor

Decription

The air differential pressure switch (sensor) is used to measure the air differential pressure in ventilation systems. For example, to monitor filter clogging or fan motor belt integrity. Includes mounting kit with the soft tube. It can be used to control the clogging of filters in the air purification sections, as well as to control the operation of the motor of the fan section.

Specification
Using a handle with a scale scale, the switching pressure of the differential pressure switch does not need to be displayed, but can also be adjusted with a screwdriver.

Model

Pressure switch adjustable upper limit from to U

Switch difference setting

Upper and lower limit switch hysteresis

930.931.80

20 200Pa

10Pa

± 15%

930.931.84

30 300Pa

20Pa

± 15%

930.931.83

50 500Pa

30Pa

± 15%

930.931.85

200 1KPa

100Pa

± 15%

930.931.86

0.5K2.5KPa

150Pa

± 15%

930.931.87

0.5K2.5KPa

250Pa

± 15%

The switch pressure should be specified for vertical installation, we recommend using the pipe connection facing down, if the switch is horizontal installation with AMP connector, the switch value may be 20Pa higher than the actual value

Detail image

Adjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog VacuumAdjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog VacuumAdjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog VacuumAdjustable Wind Air Differential Pressure Control Switch Sensor Diaphragm Analog Vacuum

Features & Application

Long life: Designed for 0.1 million switching cycles.
Can be used in cleanrooms.
Possesses high precision of setting and regulation.
Long-term stability of the switch-off setpoints.
Ease of installation
Widely used in the following occasions
Air conditioning and clean room
Fan and blower control
Intelligent Building
Filter and blower controls
Environmental protection
Fluid and level control, etc
