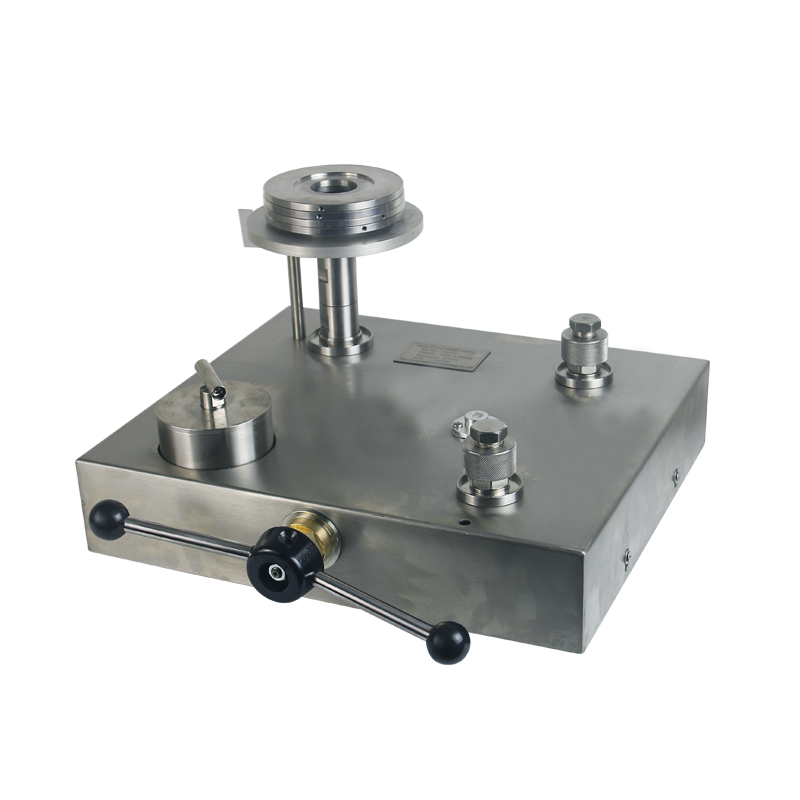

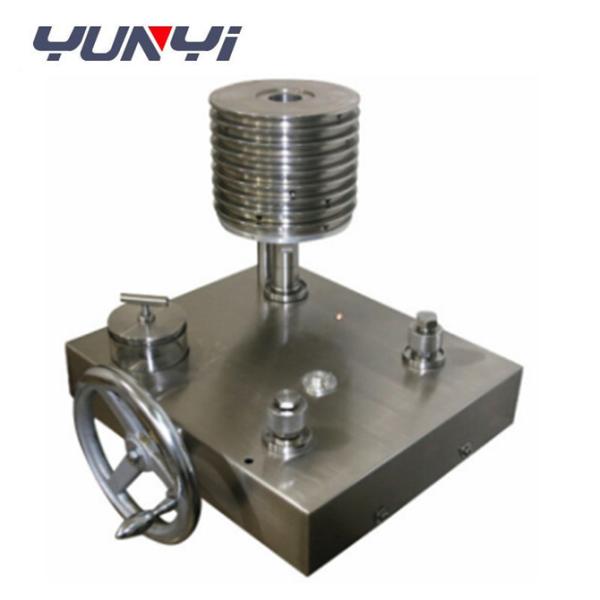

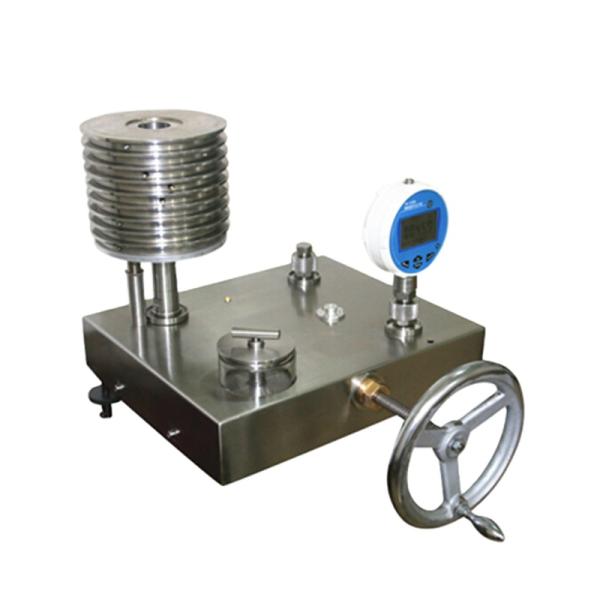

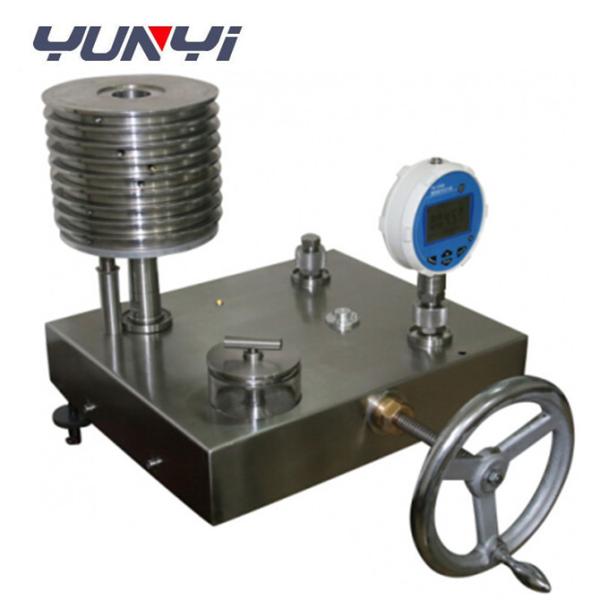

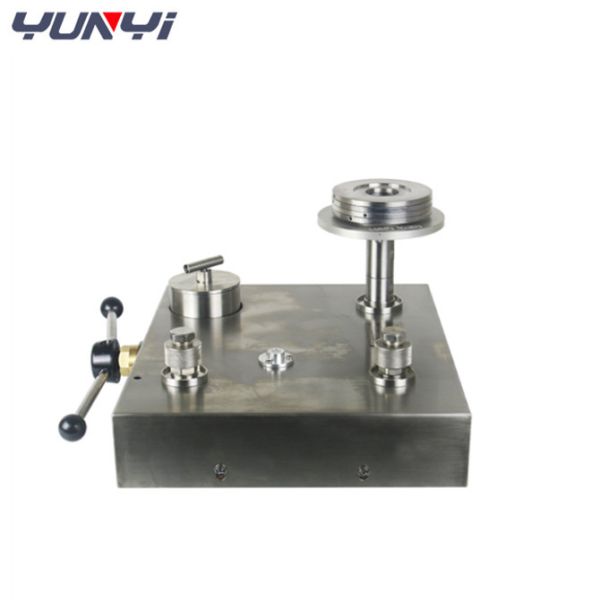

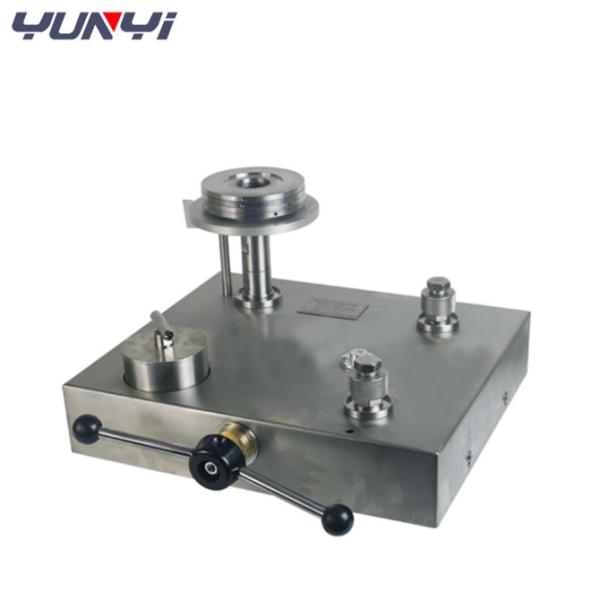

Hydraulic Pressure Dead Weight Tester Calibrator JQ Piston
Hydraulic Pressure Dead Weight Tester Calibrator JQ Piston
Hydraulic Pressure Dead Weight Tester Calibrator JQ Piston
Hydraulic Pressure Dead Weight Tester Calibrator JQ Piston
Hydraulic Pressure Dead Weight Tester Calibrator JQ Piston
Hydraulic Pressure Dead Weight Tester Calibrator JQ Piston
Hydraulic Pressure Dead Weight Tester Calibrator JQ Piston
Hydraulic Pressure Dead Weight Tester Calibrator JQ Piston
Specifications
Brand Name :
YunYi
Model Number :
JQ Series
Place of Origin :
China
MOQ :
1 piece
Price :
USD 860.0-USD2900.0 PER PIECE
Payment Terms :
T/T, Western Union, D/A, D/P
Supply Ability :
100 Unit/Units per Month JY Series Digital Piston Pressure Gauge Dead Weight Tester
Delivery Time :
10DAYS
Packaging Details :
Standard carton box
Warranty :
1 year
Power :
Hydraulic
UsageBalancing Machine :
Balancing Machine
Product name :
High Performance Piston Pressure Gauge Calibrator Dead Weight Tester
Model :
JQ-0.6 , JQ-6 JQ-25 , JQ-60
Nominal range :
0.04 ~ 0.6MPa ; 0.1~6 MPa ; 0.5~25MPa ;1~60 MPa
Accuracy :
0.02 grade(±0.02%) ;0.05grade(±0.05% )
Medium :
Transformer oil or mixed oil of transformer oil and kerosene
MOQ :
1 pc
Description

Description High Performance Piston Pressure Gauge Calibrator Dead Weight Tester

JQ piston Deadweight Tester is my company's fourth generation of products, this product is in the YS piston Deadweight Tester and KY piston Deadweight Tester based on the research and development made. Cost-effective, durable, piston system has a break-proof structure, greatly reducing the loss of piston rod rupture due to improper operationball.

Detailed Images High Performance Piston Pressure Gauge Calibrator Dead Weight Tester

Hydraulic Pressure Dead Weight Tester Calibrator JQ Piston Hydraulic Pressure Dead Weight Tester Calibrator JQ Piston

Hydraulic Pressure Dead Weight Tester Calibrator JQ Piston

Specification High Performance Piston Pressure Gauge Calibrator Dead Weight Tester

Measuring range: 0.04 ~ 0.6MPa 0.1 ~ 6MPa 0.5 ~ 25MPa 1 ~ 60MPa 2 ~ 100MPa

Accuracy level: 0.05 ,0.02

Function: Used to test digital pressure gauge, precision pressure gauge, pressure transmitter

Piston material: Piston rod: Tungsten carbide

Piston tube: tungsten carbide

Weight Material: non-magnetic stainless steel (0.02), carbon steel (0.05)

Feature High Performance Piston Pressure Gauge Calibrator Dead Weight Tester

1.Meet JJG59-2007 piston gauge test procedures and other national standards

2.Piston system using tungsten carbide structure

3.Piston system with a low center of gravity rotation more smoothly

4.Piston rod with anti-off structure, to avoid misuse caused by the loss

5.Modular design, light displacement indicator, electric pre-press system, embedded digital pressure gauge, etc., to meet different customer needs

6.The overall pipeline are welded, the pipeline pressure 250MPa use of the phenomenon of oil leakage and so there is no

7.For the use of production enterprises, the use of bearing plate structure, the use of more convenient.

8.Displacement instructions for the color lamp instructions, red low in the piston, piston balance position into a yellow light, the piston high into a green light.

9.Pressurization does not use pre-pressurization, lighter pressure, high calibration efficiency

10.0.02 level stainless steel floor, with the growth of useful life, the table is still very new.

Selection Guide High Performance Piston Pressure Gauge Calibrator Dead Weight Tester

Model Measuring range(Mpa) Accuracy
JQ-06 0.04--0.6 0.05%FS 0.02%FS 0.01%FS
JQ-6 0.1--6
JQ-60 1--60
JQ-100 1--100(2--200)
JQ-160 2--160
JQ-250 5--250

Hydraulic Pressure Dead Weight Tester Calibrator JQ Piston
