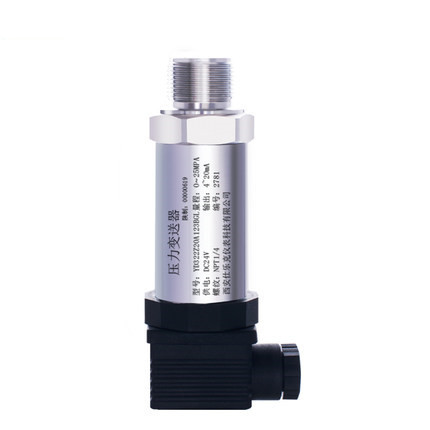

10V 316L SS Piezoresistive Liquid Pressure Transducer
10V 316L SS Piezoresistive Liquid Pressure Transducer
10V 316L SS Piezoresistive Liquid Pressure Transducer
10V 316L SS Piezoresistive Liquid Pressure Transducer
Specifications
Brand Name :
yunyi
Model Number :
YD series
Place of Origin :
china
MOQ :
2
Price :
38/pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100per week
Delivery Time :
5-8days
Packaging Details :
carton
name :
china hydraulic air 4-20ma pressure transducer Smart Water Pressure Sensor trasmitter
Material: :
Stainless Steel Case and Diffused silicon
Power supply: :
12~36VDC
Connection: :
1/4",1/2''NPT,G1/4, G1/2, M20*1.5
Pressure range: :
0.1Mpa...0Mpa~0.01Mpa...100Mpa
Output signal: :
4-20mA, 0-5V, or 0-10v
Warranty: :
1 year
Description

Descrption china hydraulic air 4-20ma pressure transducer Smart Water Pressure Sensor trasmitter

YD31 pressure transmitter is a series pressure transmitter of our standard transmitter.Imported chip assembly, reflecting a world-class pressure transmitter technology.Compact, rugged. Light weight, easy to install. Easy to use. Maintenance-free. Zero outside the range can be continuously adjusted, a wide range of migration. Suitable for a variety of occasions in harsh environments and corrosive media.


Features hydraulic air 4-20ma pressure transducer Smart Water Pressure Sensor trasmitter

Piezoresistive pressure sensor

Pressure range: -100kPa~0...0~10kPa...100MPa

Gas or dilute liquid compatible with 316LSS

High reliability and stability

Output signal optional

Connection mode of connector or lead direct

Can add adjustable zero and full function as customer’s request

A variety optional of pressure interface

Selection hydraulic air 4-20ma pressure transducer Smart Water Pressure Sensor trasmitter

Model YD31
Pressure Range
(0-X)KPa or MPa: -100kPa~0.....10kPa...100MPa
Pressure type
G Gauge D Differential A Absolute

Output signal
E 4-20mA F 0-5Vdc J 1-5Vdc

K 0-10Vdc V 1-10Vdc

Power Supply

A1 10~36VDC

Electrical Interface
B1 Hirschman connector

B2 Directly cable connection

B3 Pin aviation connector

Display

D1 No display

D2 LED display

Pressure Interface
C1 1/2NPTM C2 1/4NPTM

C3 M20x1.5M C4 G1/2M

C5 G1/4M Cx other customized

10V 316L SS Piezoresistive Liquid Pressure Transducer10V 316L SS Piezoresistive Liquid Pressure Transducer10V 316L SS Piezoresistive Liquid Pressure Transducer
