RS485 Split Air Temperature Humidity Controller IP65 10V Output
RS485 Split Air Temperature Humidity Controller IP65 10V Output
RS485 Split Air Temperature Humidity Controller IP65 10V Output
RS485 Split Air Temperature Humidity Controller IP65 10V Output
RS485 Split Air Temperature Humidity Controller IP65 10V Output
RS485 Split Air Temperature Humidity Controller IP65 10V Output
Specifications
Brand Name :
YUNYI
Certification :
ce
Place of Origin :
china
MOQ :
2
Price :
38/pcs
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
10000pcs/month
Delivery Time :
7days
name :
Split Air Temperature Humidity Controller Transmitter
Output :
4-20mA , 0-5V,0-10V, RS485
Humidity Range :
0-100% Rh (Relative Humidity)
Output Signal :
RS485, 4-20mA, 0-10VDC
Stability :
1% Rh Fs / Year
Protection Grade :
IP65
Description

Remote mount split Air temperature humidity controller transmitter is applicable to the measurement of temperature and humidity in pipes or boxes. It is the responsibility of the operator to verify that the equipment is suitable for the operating conditions of the application. If you have any questions, please contact our sales department to ensure the correct application of the transmitter. The company will not take any responsibility for the impact caused by improper selection.

Specification:

Item remote mount split Air temperature humidity controller transmitter
Application air temperature and humidity measure
Material ABS plastic
Output 4-20mA, 0-10V, RS485
Temperature -40~125C
Humidity range 0-100%RH
Power supply 24VDC
Protection IP65
Display LCD display optional
Dimensions 140x100x40mm

Parameter Description
Measuring medium Gas (compatible with contact material)
Overall material ABS engineering plastic for main shell
Filter (contact) Polyethylene (density 50 μm)
Cable locking head Nylon (locking wire diameter 5-8 mm)
Display LCD with backlight
Installation flange (contact) ABS engineering plastics
Insert bar (contact) ABS engineering plastics
Seal (contact) NBR / silicone
Temperature range -40 ~ 0 ~ 125 ºC
Humidity range 0-100% RH (relative humidity)
Supply voltage 24VDC (current/voltage output), 12-24VDC (RS485 output)
Output signal RS485, 4-20mA, 0-10VDC
Response frequency ≤2Hz
Response speed 10 ºC for temperature and 10% RH for humidity, gas flow rate of 0.1m/s
Working conditions Ambient temperature: -40 ~ 85 ºC, Ambient humidity: 5% - 95% RH (no condensation)
Stability ±1% RH FS/year, ±0.2 ºC/year
Seismic performance 5g (20-2000Hz)
Overall weight With display: ≈187g, No display: ≈162g
Protection grade IP65
Power range With display: Current mode ≤0.05Us(W), Digital type ≤0.015Us(W), Voltage type ≤0.015Us(W)
Load characteristics Current type load ≤ {(Us-12) ÷ 0.02 (Us = supply voltage)} Ω, Voltage type load ≥ 100k Ω

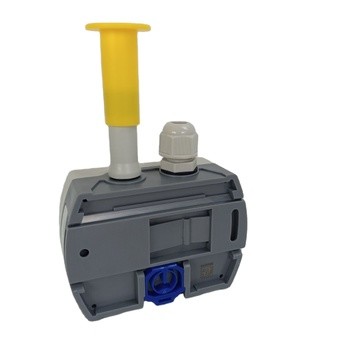

Details Image:

RS485 Split Air Temperature Humidity Controller IP65 10V Output
