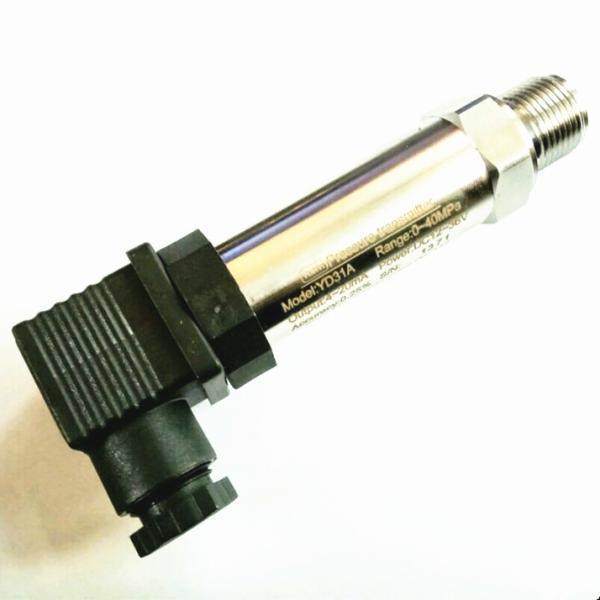

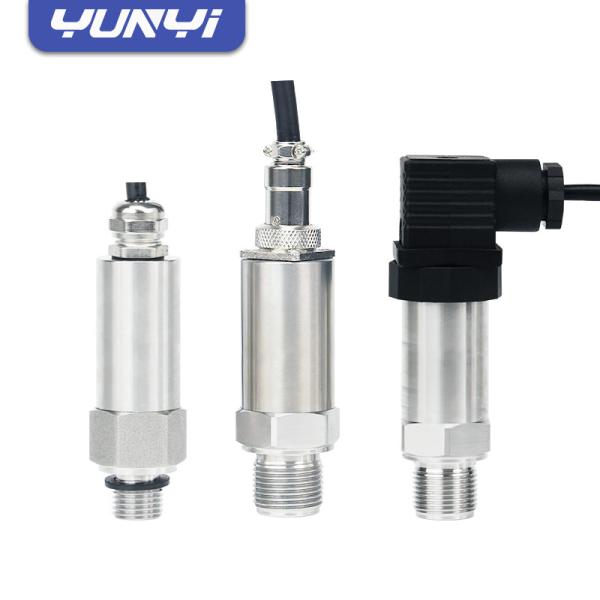

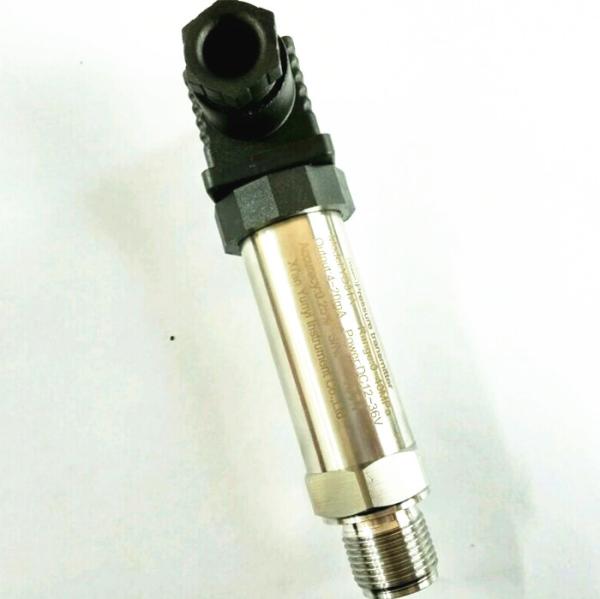

Diffuse Silicon 0.5%FS Stable Smart Water Pressure Sensor
Diffuse Silicon 0.5%FS Stable Smart Water Pressure Sensor
Diffuse Silicon 0.5%FS Stable Smart Water Pressure Sensor
Diffuse Silicon 0.5%FS Stable Smart Water Pressure Sensor
Diffuse Silicon 0.5%FS Stable Smart Water Pressure Sensor
Diffuse Silicon 0.5%FS Stable Smart Water Pressure Sensor
Specifications
Brand Name :
Yunyi
Model Number :
YD31
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
25-38usd
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000/month
Delivery Time :
5-7 days
Packaging Details :
carton
Item :
Smart Water Pressure Sensor Diffuse Silicon Pressure Transmitter
Pressure range :
0-60bar
Connector :
Hirschmann, directly wire, din connection
Thread :
1/4NPT, 1/2NPT, G1/4, G1/8
Output :
4-20mA, 0-10V, 0-5V
Sensor :
Diffuse silicon
Power supply :
12~36VDC, standard 24VDC
Case material :
SS304
Description

Smart Water Pressure Sensor Diffuse Silicon Pressure Transmitter

Parameter Description
Range -0.1...0~0.02...100Mpa (0-100Kpa)
Output signal 4-20mA, 1-5V, 0-10V, 0-20mA, 0-5V, RS485
Compensation temperature -10-70℃
Medium temperature -40-125℃
Ambient temperature -10-70℃
Pressure type Gauge pressure, absolute pressure, sealed pressure
Power supply 24VDC
Comprehensive accuracy 0.1, 0.3, 0.5 level (optional)
Overload pressure 200%FS
Feature Description
Multi-range, a variety of signal output options Provides multiple range options and various signal output choices for flexibility in different applications.
Imported diffused silicon core for enhanced stability Utilizes an imported diffused silicon core, offering 200% higher stability compared to ordinary diffused silicon sensors for reliable and accurate pressure measurements.
316L stainless steel isolation diaphragm for corrosion resistance Made of stainless steel with a 316L isolation diaphragm, ensuring corrosion resistance and suitability for harsh industrial environments.
Strong anti-interference and long-term stability Exhibits robust anti-interference capabilities and maintains good long-term stability for consistent and accurate pressure readings.
Triple protection for added safety Includes reverse connection protection, overvoltage protection, and overcurrent protection for comprehensive electrical safeguards.
International standard anti-damping design for impact resistance Adopts an international standard anti-damping design, enabling the sensor to resist 300% instantaneous impact for demanding applications.
Application Industries
Process control, aviation, aerospace Measurement and control of liquids and gases in industrial processes, aviation, and aerospace applications.
Automotive, medical equipment Pressure measurement and control in automotive systems and medical equipment.
HVAC (Heating, Ventilation, and Air Conditioning) Monitoring and regulation of pressure in HVAC systems.
Other industries Widely applicable in various industries requiring precise pressure measurement and control.

Range selectable between -0.1-30MPa
Accuracy 0.5% FS, 1.0% FS, 2.0% FS
Output signal 4-20mA, 0 / 1-5 / 10V, 0.5-4.5V
Supply voltage + 5VDC, + 12VDC, + 24VDC
Process connection 7 / 16-20UNF, G1 / 4, G1 / 8 (can be customized)
Electrical connection three-pin plug directly lead
Load capacity current-≤500Ω
Compensation temperature 0-85 ° C
Operating temperature -20-125 ° C
Safety overload 150%
Ultimate Overload 200%
Temperature drift 0.02% FS / ° C
Long-term stability 0.2% FS / Year

Diffuse Silicon 0.5%FS Stable Smart Water Pressure Sensor
