Highly Accurate Smart Water Pressure Sensor for Industrial Applications
Highly Accurate Smart Water Pressure Sensor for Industrial Applications
Highly Accurate Smart Water Pressure Sensor for Industrial Applications
Highly Accurate Smart Water Pressure Sensor for Industrial Applications
Specifications
Brand Name :
Clouds
Model Number :
YD36
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
50~70USD/PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs per week
Delivery Time :
10 work days
Packaging Details :
Carton Packaging
Weight :
<100g
Probe Type :
Precision glass bulb electrode
Material :
Stainless Steel
Accuracy Class :
± 0.5 ℃
Application :
Oil, Air, Gas, Water
Control Range :
-0.1~0~100Mpa
Output :
4-20mA, 0-5V, 0.5~4.5V, I2C etc
Shipping Weight :
121g
Description

Description

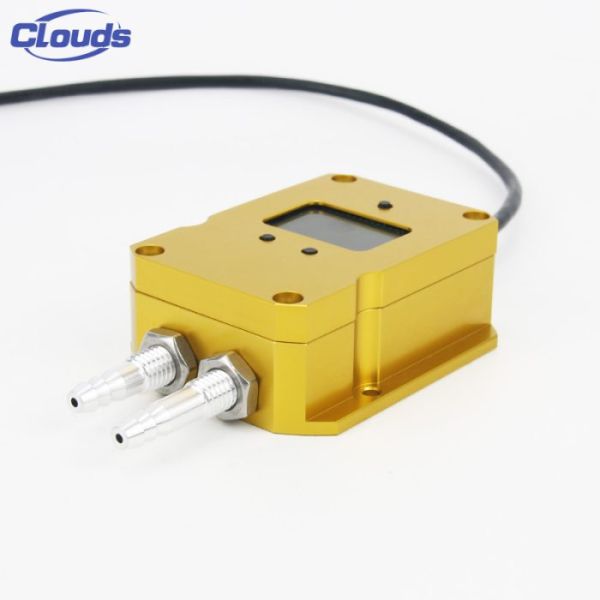

The YD36-4 differential pressure transmitter is purposely crafted for closely monitoring pressure or differential pressure in both industrial and OEM scenarios.

Specififications

Parameter YD36-4 Specification
Pressure Range 0-200kPa max or ±100kPa
Accuracy 0.5%F.S typical; 0.25%F.S (customized) optional
Medium Temperature -10℃ to 80℃ at 25℃ reference
Temperature Compensation -10℃ to 80℃
Medium Compatibility Dry and non-corrosive gases
Electrical Wires 2 Wires, 3 Wires, 4 Wires
Output Options 4-20mA, 0-5V, 0-10V, 0.5-4.5V, RS485 Modbus RTU
Power Supply 8-30V with potentiometer; 24-30V without potentiometer (for 4-20mA output); 8-30V with potentiometer; 5Vdc; 24-30V without potentiometer
Electrical Connection Fixed cable outlet
IP Rating IP65
Pressure Connect Port Φ8 gas port, Φ6 gas port, quick connector (optional)
Pressure Type Differential pressure
Housing Materials Aluminum

Features

  • Pressure sensitive
  • Digital temperature compensation
  • Imported chip assembled
  • Strong anti-humidity and water-resistance
  • IP65 enclosure
  • Advanced circuit linearity
  • Compact and easy to install
