Versatile Differential Pressure Transmitter for Fluid Medium Measurement
Versatile Differential Pressure Transmitter for Fluid Medium Measurement
Versatile Differential Pressure Transmitter for Fluid Medium Measurement
Versatile Differential Pressure Transmitter for Fluid Medium Measurement
Specifications
Brand Name :
Clouds
Model Number :
YD42
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
USD49-65/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
300PCS/week
Delivery Time :
7days
Packaging Details :
Carton box
Warranty :
12 months, 18 Months
Application :
Liquid, gas, steam
Accuracy :
±0.075% of span
Range :
20kPa-3.5MPa
Measuring Range :
0.125kPa-6890kPa
Output Singal :
4~20mA, 1-5V, 0.5-4.V, I2C
Measurement Range :
0-1000 kPa
Description

Description

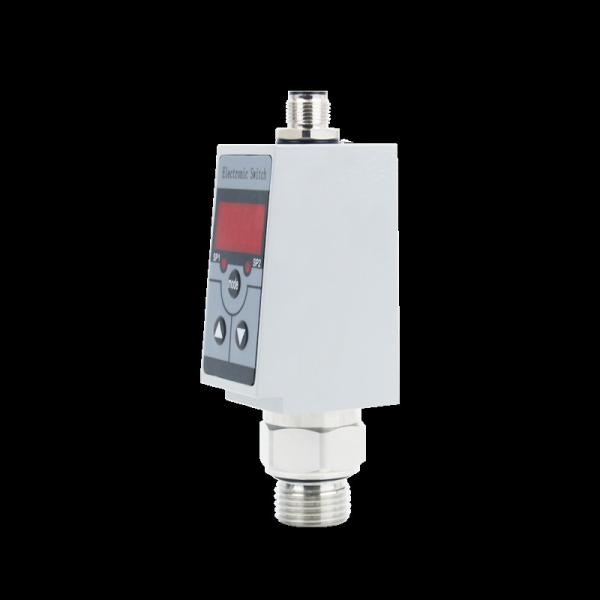

The YD42 LED display pressure controller is a comprehensive solution for pressure measurement, display, intelligent digital pressure sensing, and control output. This fully electronic device incorporates a front-end hydraulic resistance-type pressure sensor with baffle filling. The output signal undergoes processing by a high-precision, low-drift amplifier before being fed into a high-accuracy A/D converter. The resulting digital signals are then processed by a microprocessor, enabling precise control of switches and effective monitoring of the pressure control system.

The Digital Air Pressure Switch offers exceptional flexibility, straightforward operation, effortless debugging, and robust reliability. It finds widespread application in various industries, including hydropower, water supply, petroleum, chemicals, machinery, hydraulics, and more. Whether it's for fluid medium pressure measurement, display, or control, the YD42 LED display pressure controller is an ideal choice.

Specification

Parameter Model: YD42S/YD42M/YD42A1/YD42R
Pressure Range Bsr-1 Bar; 0-0.1 Bar to 1000 Bar / 0-2 Psi to 15000 Psi Optional
Pressure Type Gauge pressure, Absolute pressure, Sealed gauge pressure optional
Safe Overload 150% F.S.
Burst Pressure 300% F.S.
Accuracy ±0.5% F.S. (Including non-lin., rep. and hys. Optional)
Display Units Accuracy ≤ ±0.1% F.S.
Display Units Span -1999~9999
Total Error Band 0~50°C: ±0.5% F.S. - 10~70°C: ±1.0% F.S.
Long Stability Standard: 0.1% F.S. ± 0.05%
Working/Storage Temp -20°C~90°C
Medium compatible Compatible with 316 Stainless Steel or 1Cr18Ni9Ti stainless steel
Output Two switches output; One switch with 4~20mA or RS485 as output signal; Two switches with 4~20mA or RS485 as output signal optional
Power Supply 12~32V DC
Switch type PNP, NPN optional
Load Resistance <24Vdc 1.2A
Insulation Resistance >100MΩ @ 100V
Max power consumption <1W
Zero Temp. Drift 0.03% F.S./°C (≤100kPa), 0.02% F.S./°C (>100kPa)
Body materials 304 stainless steel, 1Cr18Ni9Ti stainless steel optional
Material of diaphragm 316 stainless steel
Filling oil Silicon oil; Fluorocarbon oil (Oxygen Services)
Plug M12 (4-poles) Type IP65; M12×1-5P; DIN43650 optional
Mechanical vibration ±20g
Pressure connect port See below drawing
Dimension -
Water Proof IP65
Response time ≤5ms
Endurance 21 million cycles, 0~100% F.S. at 25

Features

  • Accuracy: ≤±0.5%F.S
  • High stability and reliability
  • Pressure interface can rotate 330 °
  • Digital calibration system
  • 4 Bits LED display pressure value
  • Analog output (4~20 mA) or RS485 digital output
  • 2 channels switch output, load capacity of 1.2 A presupposed pressure switch point and
  • Switch point action delay function
  • Equipped with node action leds, convenient for observation
  • Key adjustment and the scene setting various parameters, easy to operate
