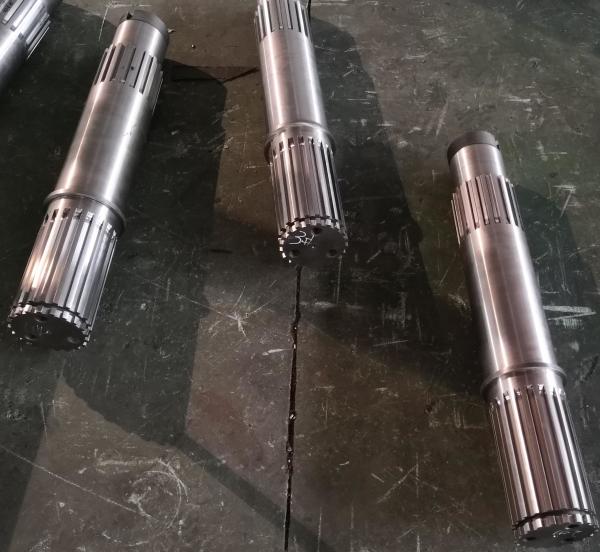

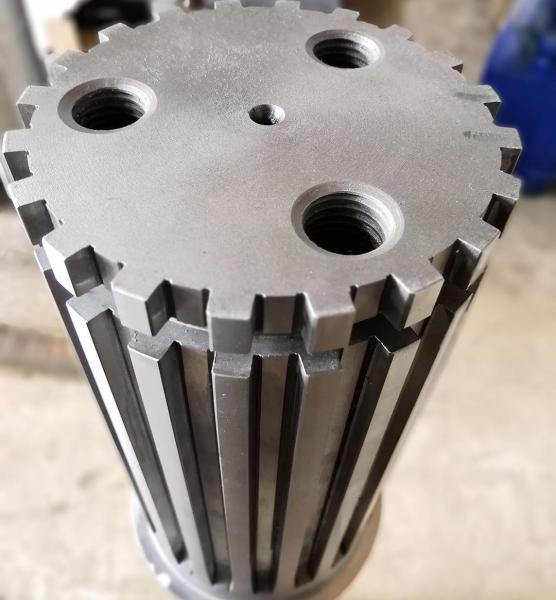

Custom Made Spline Gear Shaft with Cylindrical Gear Profile and Spline Milling and Grinding
Custom Made Spline Gear Shaft with Cylindrical Gear Profile and Spline Milling and Grinding
Custom Made Spline Gear Shaft with Cylindrical Gear Profile and Spline Milling and Grinding
Custom Made Spline Gear Shaft with Cylindrical Gear Profile and Spline Milling and Grinding
Custom Made Spline Gear Shaft with Cylindrical Gear Profile and Spline Milling and Grinding
Custom Made Spline Gear Shaft with Cylindrical Gear Profile and Spline Milling and Grinding
Specifications
Brand Name :
YIZGEAR
Place of Origin :
CHINA
MOQ :
2 Sets
Price :
300＄
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
60 Days
Packaging Details :
Plywood Crate
Size :
Customized
Spline Teeth Number :
18
Shape :
Cylindrical
Module :
Customized
Width :
10
Heat Treatment :
Carburizing
Description

1) Description of Spline Gear Shaft

The splined shaft is a transmission component that disperses loads through multi-tooth meshing

and can withstand combined radial, axial and torsional forces.

2) Characteristics of Spline Gear Shaft

  • Simultaneous contact of multiple teeth ensures more uniform load distribution and avoids single-point stress concentration.
  • Optional rectangular splines, involute splines, etc. are available. Different tooth profiles are suitable for different load requirements

3)Advantages of Spline Gear Shaft

  • High load-bearing capacity: The torque transmission capacity is several times higher than that of single-key connections (such as flat keys).
  • Strong fatigue resistance: Multi-tooth load sharing extends service life, suitable for frequent start-stop or impact loads.
Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Spline
Manufacturing Process Spline Milling & Spline Grinding
Teeth Grinding Included
Module (M) 10
Number of Teeth (Z) Custom
Pressure Angle (α) 0°
Lead Angle 0°
Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420

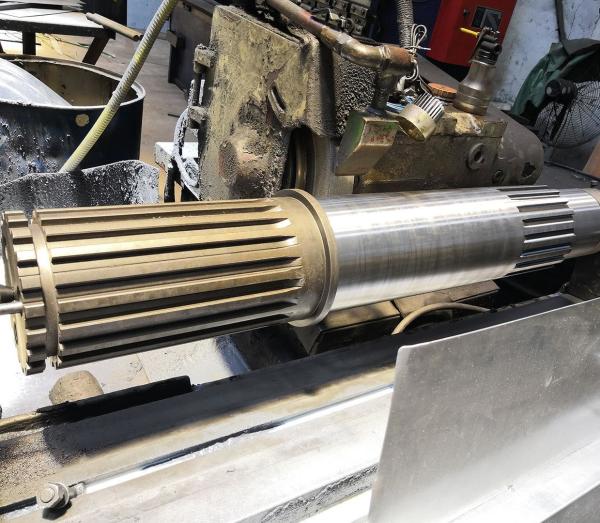

Production Equipment
