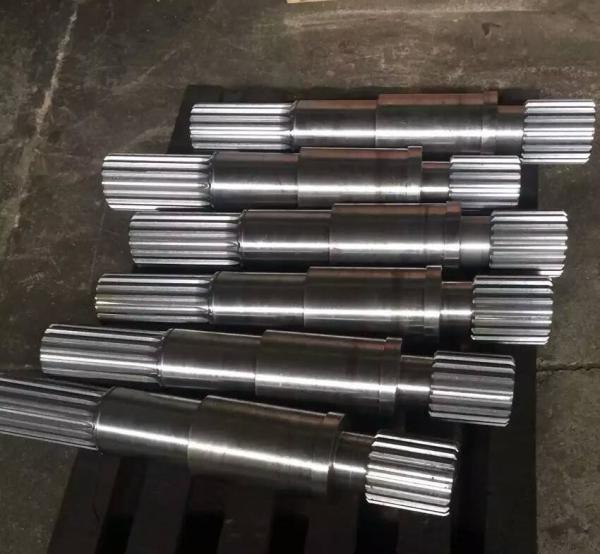

Spline Gear Shaft with Cylindrical Type for Precision Parts Machining in Mechanical Transmission
Spline Gear Shaft with Cylindrical Type for Precision Parts Machining in Mechanical Transmission
Specifications
Brand Name :
YIZGEAR
Place of Origin :
CHINA
MOQ :
2 Sets
Price :
300＄
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
60 Days
Packaging Details :
Plywood Crate
Material :
Steel
Width :
10
Manufacturing :
Spline Hobbing
Gear Module :
5
Spline Teeth Number :
18
Center Distance :
Customized
Description

1) Description of Spline Gear Shaft

The splined shaft is a core component in mechanical transmission and is used in situations

where torque and relative motion need to be transmitted simultaneously.

2) Characteristics of Spline Gear Shaft

  • It is widely used in automotive gearboxes, construction machinery, aero engines, machine tool spindles, etc.
  • It can be designed as a fixed connection or a sliding connection (such as the drive shaft of a four-wheel drive vehicle).

3)Advantages of Spline Gear Shaft

  • Versatility: It not only supports static high torque transmission but also ADAPTS to dynamic axial movement (such as clutch control shafts).
  • Compact design: Saves space compared to keyway connections and is suitable for lightweight and highly integrated devices.
Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Spline
Manufacturing Process Spline Milling & Spline Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

Spline Gear Shaft with Cylindrical Type for Precision Parts Machining in Mechanical Transmission

Manufacturing Process

Spline Gear Shaft with Cylindrical Type for Precision Parts Machining in Mechanical Transmission
