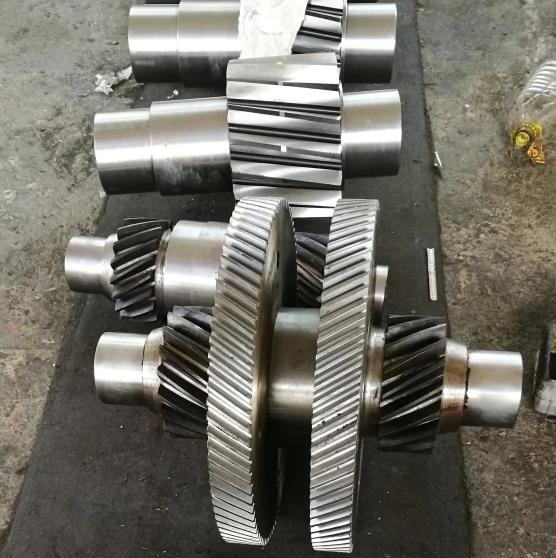

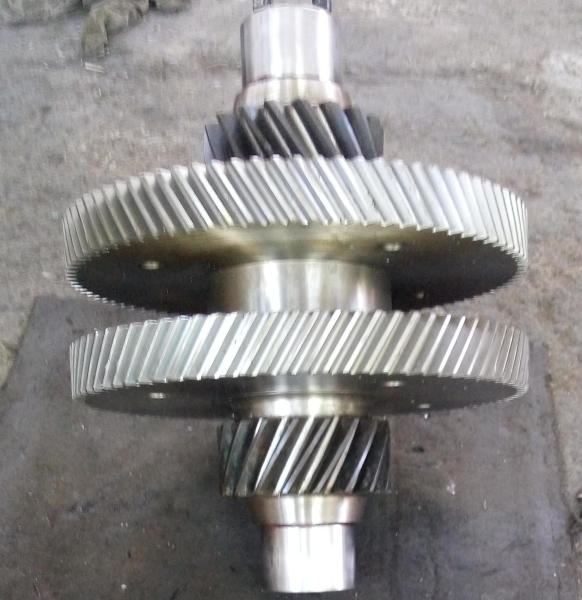

Transmission Gear Shaft Durable Alloy Steel And Triple Heat Treatment Process
Transmission Gear Shaft Durable Alloy Steel And Triple Heat Treatment Process
Transmission Gear Shaft Durable Alloy Steel And Triple Heat Treatment Process
Transmission Gear Shaft Durable Alloy Steel And Triple Heat Treatment Process
Transmission Gear Shaft Durable Alloy Steel And Triple Heat Treatment Process
Transmission Gear Shaft Durable Alloy Steel And Triple Heat Treatment Process
Specifications
Brand Name :
YIZGEAR
Place of Origin :
CHINA
MOQ :
20 Sets
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
60 Days
Packaging Details :
Plywood Crate
Manufacture :
Gear Hobbing
Quality Grade :
ISO 6-7 Grade
Size :
Customized
Surface Treatment :
Heat Treatment
Weight :
Customized
Teeth Profile :
Helical
Description

1) Descriptions of Transmission Gear Shaft

As a core component of mechanical transmission, the transmission gear shaft achieves efficient power transmission

(efficiency > 95%) through the integrated design of gears and shaft.

It features a compact structure, strong load-bearing capacity, and supports flexible speed variation.

Through precise processing (such as CNC gear grinding) and heat treatment techniques,

it ensures high precision and long service life, and is suitable for various industrial applications.

2) Features of Transmission Gear Shaft

a) In terms of energy efficiency: Through precise meshing, a power transmission efficiency of over 95% is achieved.

b) For scenarios with limited space: The integrated structure saves 40% of installation volume.

c) Performance under overload conditions: Special tooth profile design ensures a service life of over 2000 hours.

d) Application of the variable speed system: Supports two modes of continuous variable speed and stepped variable speed.

3) Advantages of Transmission Gear Shaft
a)Durability Advantage: Special alloy steel + triple heat treatment process, extending service life by 5-8 times
b)Precision Advantage: Five-axis linkage CNC machining, achieving μm-level transmission accuracy
c)Maintenance Advantage: Quick disassembly structure design, reducing maintenance time by 70%
d)Compatibility Advantage: One-axis multi-purpose, supporting seamless connection of 6 types of transmission systems

Products Transmission Gear Shaft
Custom Made √
Gear Profile Type Gleason
Gear Teeth Manufacturing Gear Grinding
Gear Teeth Grinding √
Module (M) 6
Number of Teeth (Z) 21
Pressure Angle (α) 20°
Lead Angle 15°
Accuracy Grade ISO 6 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　
