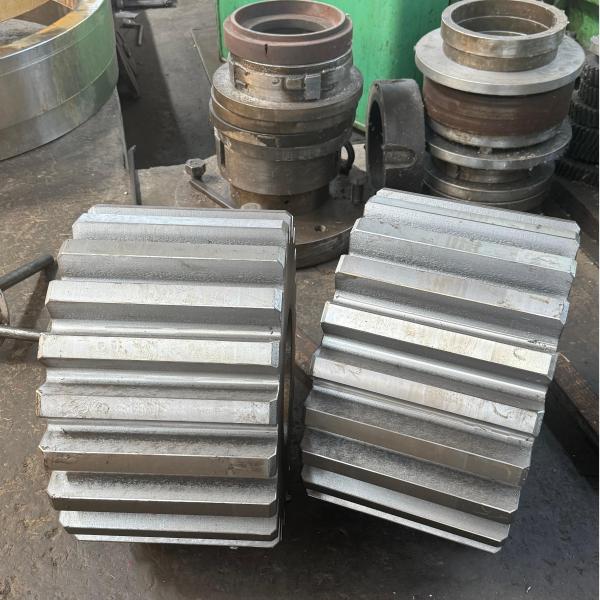

Custom Spur Gears with Rectangular Spline 220-260 HB Hardness
Custom Spur Gears with Rectangular Spline 220-260 HB Hardness
Specifications
Brand Name :
YIZGEAR
Place of Origin :
CHINA
MOQ :
1 Sets
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
30 Days
Packaging Details :
Plywood Crate
Spline Type :
Rectangular spline
Hradness :
220-260 HB
Manufacturing Type :
Gear Grinding
Production Time :
30 Days
Method :
Gear Hobbing
Dimension :
As sample or drawing
Description

1) Description of Spur Gear

Spur gears are cylindrical gears with teeth parallel to the axis, and the teeth are distributed along the busbar direction of the cylinder,

which is one of the most basic and common types of gear transmission.

2) Feature of Spur Gear

The structure is simple, the difficulty of tooth processing is low, and it is easy to understand and manufacture;

only radial force is generated during transmission, and there is no axial force, which requires low axial bearing capacity of the bearing;

The transmission ratio is stable, which can achieve accurate constant ratio transmission.

3) Working Principle

When the active spur gear rotates, its teeth meshed with the teeth of the driven spur gear in turn, and the torque is transmitted

from the driving shaft to the driven shaft through the thrust between the tooth surfaces.

4) Application of Spur Gear

It is suitable for equipment that requires simple transmission structure, such as the transmission mechanism inside the clock,
the power transmission system of small toys, and the transmission parts of household sewing machines.

Products Spur Gear
Custom Made √
Gear Profile Type Cylindrical Gears
Manufacturing Gear Hobbing
Teeth Grinding √
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Helix Angle (β) 0°
Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing
Surface Hardness 58-62 HRC

STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　
