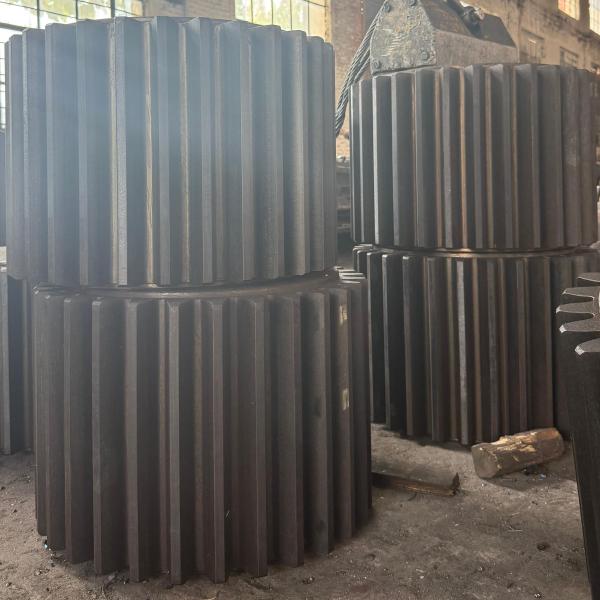

Custom Spur Gears for Automotive Industry - ISO 6-7 Grade
Custom Spur Gears for Automotive Industry - ISO 6-7 Grade
Specifications
Brand Name :
YIZGEAR
Place of Origin :
CHINA
MOQ :
1 Sets
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
30 Days
Packaging Details :
Plywood Crate
Manufacturing Process :
Gear Teeth Hobbing
Color :
Silver
Profile One :
Helical Gear
Gear Profile Type :
Cylindrical Gears
Size :
Standard
Application :
Automotive Industry
Description

1) Description of Spur Gear

From the perspective of manufacturing process and economy, spur gear is a gear with a simple processing process and low manufacturing cost,

and its tooth shape is regular, which can be mass-produced using a variety of conventional processing methods.

2) Feature of Spur Gear

a) The processing equipment is universal, no special spiral angle processing equipment is required, and ordinary milling machines

and hobbing machines can complete the processing;

b) High material utilization, symmetrical distribution of gear teeth, and small blank processing allowance;

c) The mass production cost is low, suitable for large-scale standardized production, and can effectively reduce the overall manufacturing cost of equipment.

3) Working Principle

During manufacturing, through conventional processes such as hobbing and shaping, the gear teeth parallel to the axis are processed on the cylindrical blank,

and there is no need to adjust complex helix angle parameters during the processing process, which reduces the risk of machining errors.

The cost advantage allows it to achieve basic transmission functions with low investment in scenarios where performance requirements are not extreme.

4) Application of Spur Gear

It is widely used in low-cost mechanical products, such as the transmission system of small blowers, the gearbox of agricultural irrigation pumps,

and the drive mechanism of simple conveying equipment.

Products Spur Gear
Custom Made √
Gear Profile Type Cylindrical Gears
Manufacturing Gear Hobbing
Teeth Grinding √
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Helix Angle (β) 0°
Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing
Surface Hardness 58-62 HRC

STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　
