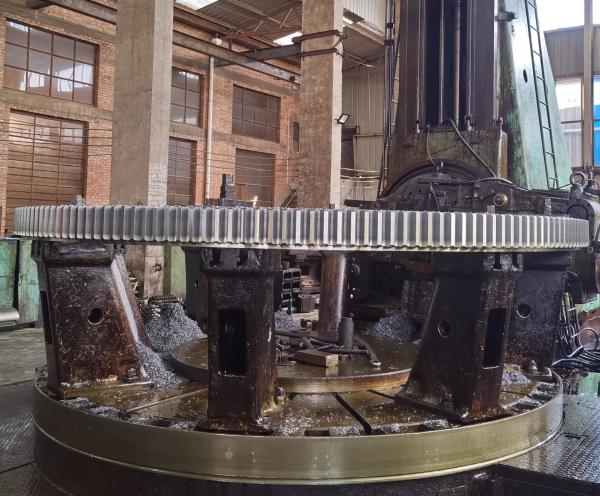

Customized Spur Gear For Machining Shaft In Industrial Applications
Customized Spur Gear For Machining Shaft In Industrial Applications
Specifications
Brand Name :
YIZGEAR
Place of Origin :
CHINA
MOQ :
1 Sets
Payment Terms :
L/C,T/T
Supply Ability :
500 Sets/Month
Delivery Time :
60 Days
Packaging Details :
Plywood Crate
Packing :
Plywood box
Manufacture :
Gear Milling
Type :
Machining Shaft
Tooth Profile :
Involute
Gear Profile :
Spur Gear
Teeth Number :
Custom
Description

1) Description of Spur Gear

A straight gear is a cylindrical gear whose teeth are parallel to the axis. Compared with other types of gears such as

helical gears and bevel gears, it has unique transmission characteristics.

2) Feature of Spur Gear

a) The meshing method is of line contact, with uniform force distribution.
b) There is no axial component force, and the requirements for the bearing are relatively low.
c) The structure is simple, and no additional axial force is generated.

3) Advantage of Spur Gear

a) Compared with helical gears, the manufacturing and assembly costs are lower.
b) Compared with bevel gears, it is more suitable for power transmission between parallel shafts.
c) During the transmission process, there will be no axial movement, and the running stability is good.

Products Spur Gear
Custom Made √
Gear Profile Type Cylindrical Gears
Manufacturing Gear Hobbing
Teeth Grinding √
Module (M) 1.5
Number of Teeth (Z) Custom
Pressure Angle (α) 20°
Helix Angle (β) 0
Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing
Surface Hardness 58-62 HRC

STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　
