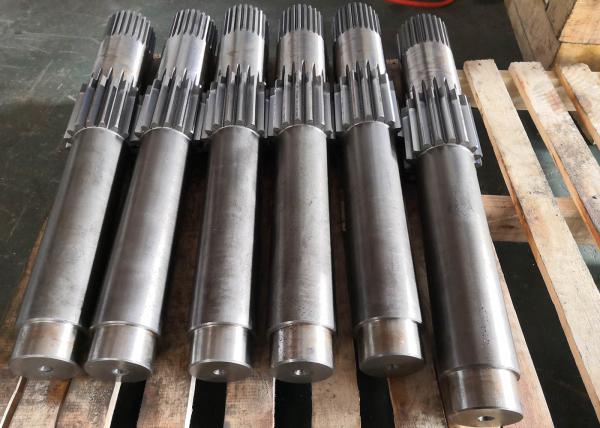

Transmission Parts Alloy Steel ANSI B92.1 Cylindrical Type Involute Spline Gear Shaft Spline Grinding
Transmission Parts Alloy Steel ANSI B92.1 Cylindrical Type Involute Spline Gear Shaft Spline Grinding
Specifications
Brand Name :
YIZGEAR
Model Number :
SS22090301
Place of Origin :
CHINA
MOQ :
5 Pieces
Price :
$50.0/Piece
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
1000 Pieces/Month
Delivery Time :
55 Days
Packaging Details :
Plywood Crate
Addendum :
1.5
Dedendum :
2.7
Hardness :
58-62 HRC
Major Diameter :
69
Minor Diameer :
60.03
Pressure angle :
30°
Description

Transmission Parts Alloy Steel ANSI B92.1 Spline Grinding Involute Spline Shaft

Measurement of Splines

Involute splines are available in several standard pressure angles.

The 30 degree pressure angle spline are the most commonly used pressure angle.

The pressure angle measurement of splines are similar to gears, and splines are generally inspected in the same ways

that external and internal gears are inspected, typically through measurement over or between pins.

Measurement over or between pins is when specific sized wires are placed in between gear teeth across from one another and

the distance between the outside of the wires is then measured with micrometers.

This measurement can also tell you if the gear has the proper gear tooth profile.

Transmission Parts Alloy Steel ANSI B92.1 Cylindrical Type Involute Spline Gear Shaft Spline Grinding

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Spline
Manufacturing Process Spline Milling & Spline Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
