24 Module ZG 40CrNiMo Steel Transmission Gears Girth Gear for Heavy-Duty Applications
24 Module ZG 40CrNiMo Steel Transmission Gears Girth Gear for Heavy-Duty Applications
Specifications
Brand Name :
YIZGEAR
Model Number :
GG22081001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
$1500/ Piece
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
20 Pieces/Month
Delivery Time :
90 Days
Packaging Details :
Wooden Crate/Pallte
Material :
ZG40CrNiMo
DP :
1.058
Width :
350mm
Production Time :
90 Days
Tip Diameter :
4238
Pitch :
75.398
Description

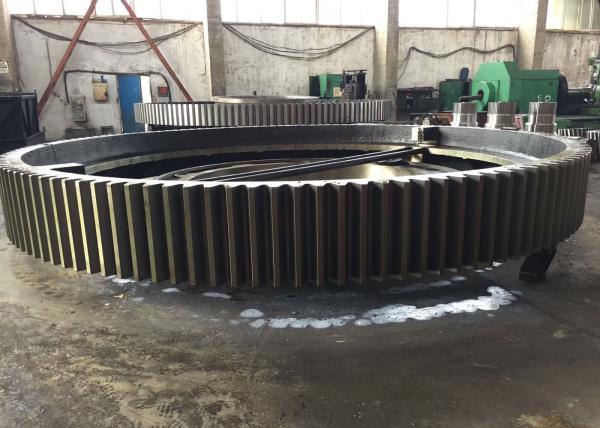

24 Module Casting Steel ZG 40CrNiMo Steel Transmission Gears Large Size Gear Wheel

1) Description of Girth Gear

Girth gears are used in several critical industries around the world, including mining, cement, and minerals.

Typically installed on the outside of horizontal mills, rotary mills, and kilns, ring gears provide the primary function of the system's rotation unit and, as such, must be robust, efficient, and built to last.

2) Application of Girth Gear

Girth gears are used in a range of mineral processing, cement and mining applications, including copper,

gold, silver, platinum and iron ore production where operational downtime is not an option.

Technical Specifications

Parameter Specification
Custom Made Available
Gear Profile Type Cylindrical Gears
Manufacturing Process Gear Milling/Gear Hobbing
Teeth Grinding Included
Module (M) 24
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching and Tempering
Surface Hardness 230-260 HB
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
