10 Module SAE 4340 Steel Helical Pinion Shaft For Heavy Duty Drive System
10 Module SAE 4340 Steel Helical Pinion Shaft For Heavy Duty Drive System
Specifications
Brand Name :
YIZGEAR
Model Number :
GS22082507
Place of Origin :
CHINA
MOQ :
5 Pieces
Price :
$50.0/Piece
Payment Terms :
L/C, D/P, Western Union, T/T
Supply Ability :
300 Pieces/Month
Delivery Time :
60 Days
Packaging Details :
Plywood Crate
Material :
AISI 8620
Module :
10
Helix angle :
12°
Manufacture :
Gear Hooing
Length :
2350
Pressure angle :
20°
Description

10 Module SAE 4340 Steel Helix Gear Shaft For Heavy Duty Drive System

1) Features of Helical Gear Shaft

The teeth of a helical gear shaft are set at an angle (relative to axis of the gear) and take the shape of a helix.

This allows the teeth to mesh gradually, starting as point contact and developing into line contact as engagement progresses.

One of the most noticeable benefits of helical gears over spur gears is less noise,

especially at medium- to high-speeds.

Also, with helical gears, multiple teeth are always in mesh, which means less load on each individual tooth.

This results in a smoother transition of forces from one tooth to the next, so that vibrations, shock loads, and wear are reduced.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Grinding
Teeth Grinding Included
Module (M) 10
Number of Teeth (Z) 12
Pressure Angle (α) 20°
Lead Angle 0°
Accuracy Grade ISO 6 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

10 Module SAE 4340 Steel Helical Pinion Shaft For Heavy Duty Drive System

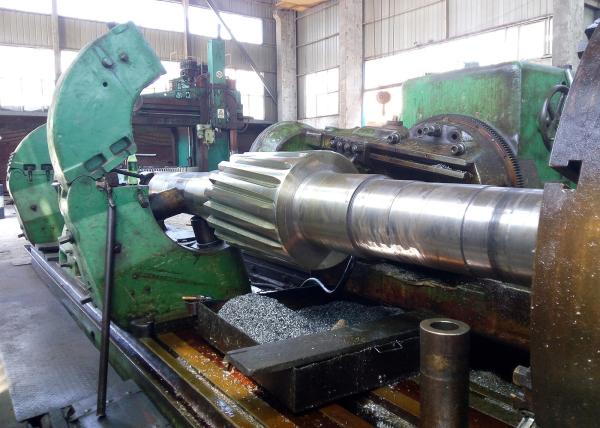

Manufacturing Process

10 Module SAE 4340 Steel Helical Pinion Shaft For Heavy Duty Drive System
