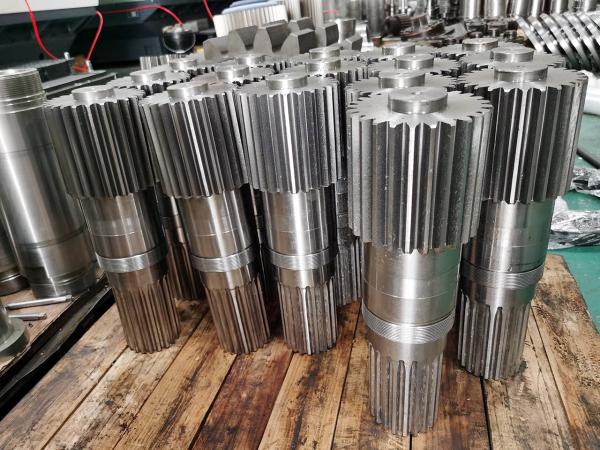

Transmission Gears Output Gear Shaft Output Spline Shaft For Planetary Gear
Transmission Gears Output Gear Shaft Output Spline Shaft For Planetary Gear
Specifications
Brand Name :
YIZGEAR
Model Number :
SS23051201
Place of Origin :
CHINA
MOQ :
5 Pieces
Price :
$150.0/Piece
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
1000 Pieces/Month
Delivery Time :
55 Days
Packaging Details :
Plywood Crate
Type :
Output Shaft
Material :
17CrNiMo6
Gear Module :
5
Spline Module :
3
Gear press angle :
20°
Spline press angle :
30°
Description

Transmission Gears Output Gear Shaft Output Spline Shaft For Planetary Gear

Output shaft of Planetary System

Gear Module: 5

Gear Teeth Grinding

Quality Grade: ISO 6-7 Grade

Material: Forging Steel
17CrNiMo6

Heat Treatment: Carburizing

Surface Hardness Hardness: 58-62 HRC

Core Hardness: 38 HRC

Spline Grinding

Roughness of Spline Teeth Ra 1.6

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Spline
Manufacturing Process Spline Milling & Spline Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

Transmission Gears Output Gear Shaft Output Spline Shaft For Planetary Gear

Manufacturing Process

Transmission Gears Output Gear Shaft Output Spline Shaft For Planetary Gear
