Specifications
Payment Terms :
T/T,L/C
Model :
SLX
Supply Ability :
800 PCS/Month
Name :
Swivel Joint
Model Number :
SLX
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
Rated Load :
5-250KN
Dia :
8-30mm
Packaging Details :
Plywood Case
Brand Name :
Suntech
Certification :
ISO
Place of Origin :
Ningbo
Description

Swivel Joint for Overhead Line Pulling Rated 5KN to 250KN


Product Overview

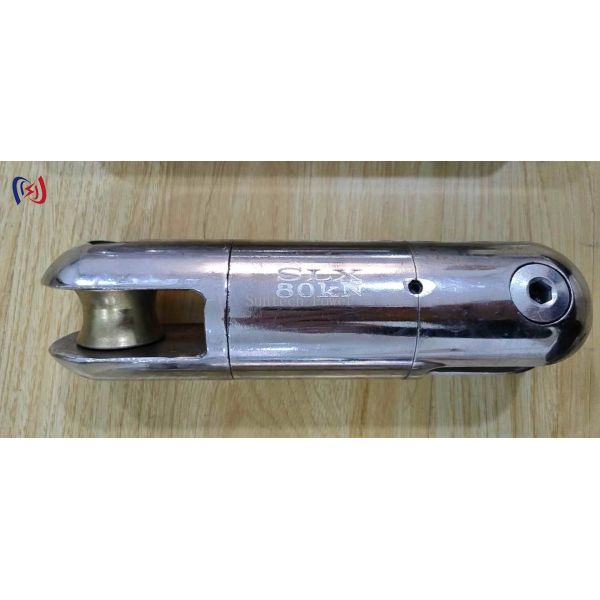

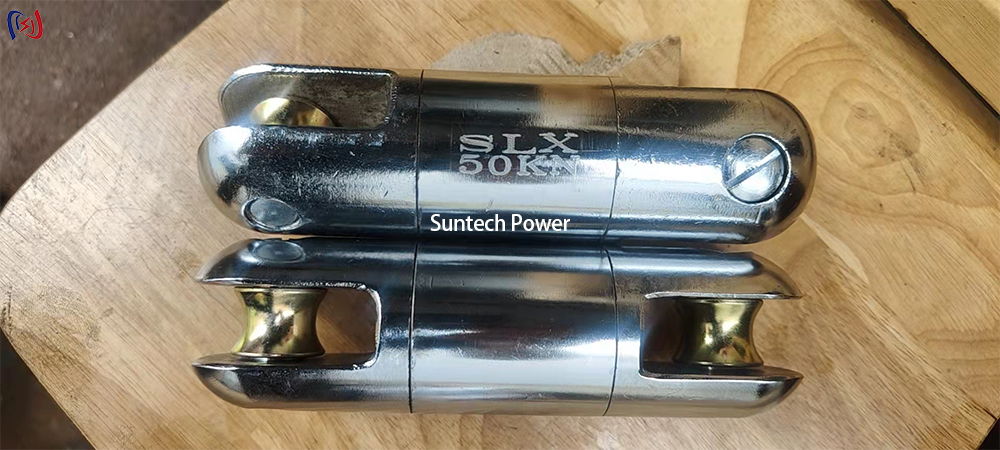

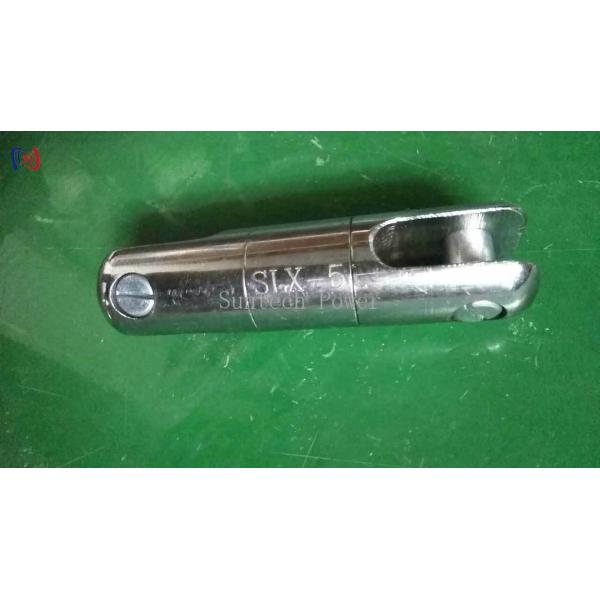

When a pulling crew drags a conductor around a corner or down into a duct, the load line twists unless something lets it rotate freely. That is the job of the SLX swivel joint: its body turns 360 degrees so the cable follows the route without kinking, while a forged steel housing and reinforced bearings carry working loads from 5KN to 250KN. A built-in lock stops accidental release and rounded profiles protect the cable surface, making the joint a standard fitting for overhead stringing, underground pulls and substation hook-ups.

Technical Specifications

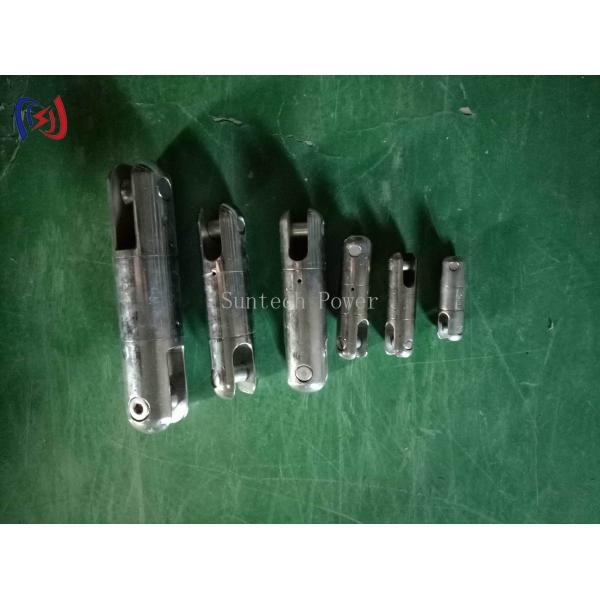

Item No.

Model

Rated Load (KN)

Main Size (mm)

Weight (kg)

17121

SLX-0.5

5

19

0.20

17122

SLX-1

10

30

0.40

17123

SLX-2

20

35

0.55

17124

SLX-3

30

37

0.65

17125

SLX-5

50

42

1.50

17126

SLX-8

80

57

2.40

17127

SL130

130

62

3.50

17128

SL180

180

75

7.20

17129

SL250

250

85

10.5

17130

SL250V

250

80

8.0

Applications

· Overhead conductor stringing and maintenance work

· Underground cable pulling through ducts and trenches

· Connecting equipment inside substations

· Routing cables around bends without twist buildup

Product Advantages

· Full 360 Degree Rotation — the joint spins freely to follow routing bends, cutting twist and keeping the conductor aligned through the whole pull.

· Forged Steel Housing with Reinforced Bearings — a solid forged body plus a heavy-duty bearing set carries loads up to 250KN without deformation.

· Cable-Friendly Radiused Edges — rounded contact profiles stop sheath scuffing and protect the conductor surface while pulling.

· Positive Locking and Low Maintenance — a locking mechanism prevents accidental release, high-visibility markings aid inspection, and self-lubricating bearings extend service life.
