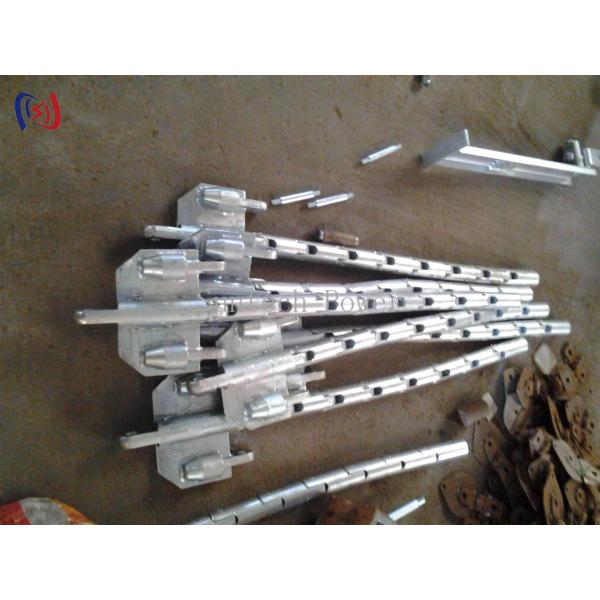

80-180KN Rated Load High-Strength Aluminum Alloy Pre-Assembled Head Board for Two Bundle Conductors
80-180KN Rated Load High-Strength Aluminum Alloy Pre-Assembled Head Board for Two Bundle Conductors
80-180KN Rated Load High-Strength Aluminum Alloy Pre-Assembled Head Board for Two Bundle Conductors
80-180KN Rated Load High-Strength Aluminum Alloy Pre-Assembled Head Board for Two Bundle Conductors
80-180KN Rated Load High-Strength Aluminum Alloy Pre-Assembled Head Board for Two Bundle Conductors
80-180KN Rated Load High-Strength Aluminum Alloy Pre-Assembled Head Board for Two Bundle Conductors
80-180KN Rated Load High-Strength Aluminum Alloy Pre-Assembled Head Board for Two Bundle Conductors
80-180KN Rated Load High-Strength Aluminum Alloy Pre-Assembled Head Board for Two Bundle Conductors
Specifications
Model Number :
SZ2
MOQ :
1 PCS
Delivery Time :
3-7days
Payment Terms :
L/C,T/T
Model :
SZ2
Price :
Negotiable
Rated Load :
80-180KN
Supply Ability :
800 PCS/Month
Name :
Head Boards for Two Bundle Conductors
Width :
75-120mm
Packaging Details :
Plywood Case
Certification :
ISO
Place of Origin :
Ningbo
Brand Name :
Suntech
Description

Two Bundle Conductor Head Board Rated 80-180KN for HV Stringing


Product Overview

When two conductors are strung together as a bundle, wind can push them into each other unless the spacing is held. The SZ2 head board takes care of this: it rides between the two conductors during the pull, keeping the gap constant so the pair cannot clash. The frame is high-strength aluminum alloy with reinforced lugs, anodized for outdoor life, and ships pre-assembled so riggers can hang it in minutes. Rated 80-180KN, it is the standard choice for HV bundle stringing.

Technical Specifications

Item No.

Model

Rated Load (KN)

Applicable Sheave Width (mm)

Weight (kg)

Feature

17220

SZ2-8

80

75

17

Conductors independent

17221

SZ2-8A

100

19

17222

SZ2-8B

110

19.5

17223

SZ2A-8

80

100

90

Poising sheave

17223T

SZ2A-8T

110

100

Poising sheave

17224

SZ2B-13

130

110

55

Conductors independent

17225

SZ2C-13

130

110

50

Conductors independent

17226

SZ2B-18

180

125

90

Conductors independent

Applications

· Stringing two bundle conductors on HV lines

· Holding the conductor gap steady during pulling

· Preventing clash between sub-conductors in wind

· Installing large cross-section bundles

Product Advantages

· Steady Twin-Conductor Spacing — the board holds the two sub-conductors apart through the whole pull, so they cannot clash even in gusty weather.

· Rugged Aluminum Alloy Frame — reinforced lugs and a high-strength frame carry rated loads of 80-180KN without fatigue.

· Anodized for Outdoor Life — the anodized finish resists corrosion in harsh climates and rough field conditions.

· Ships Pre-Assembled — color-coded, ready-to-rig components cut setup time; non-conductive spacer options and radiused edges protect insulation.
