Specifications
Payment Terms :
L/C,T/T
Model :
SLW
Supply Ability :
800 PCS/Month
Name :
Conductor Mesh Sock Joints
Model Number :
SLW

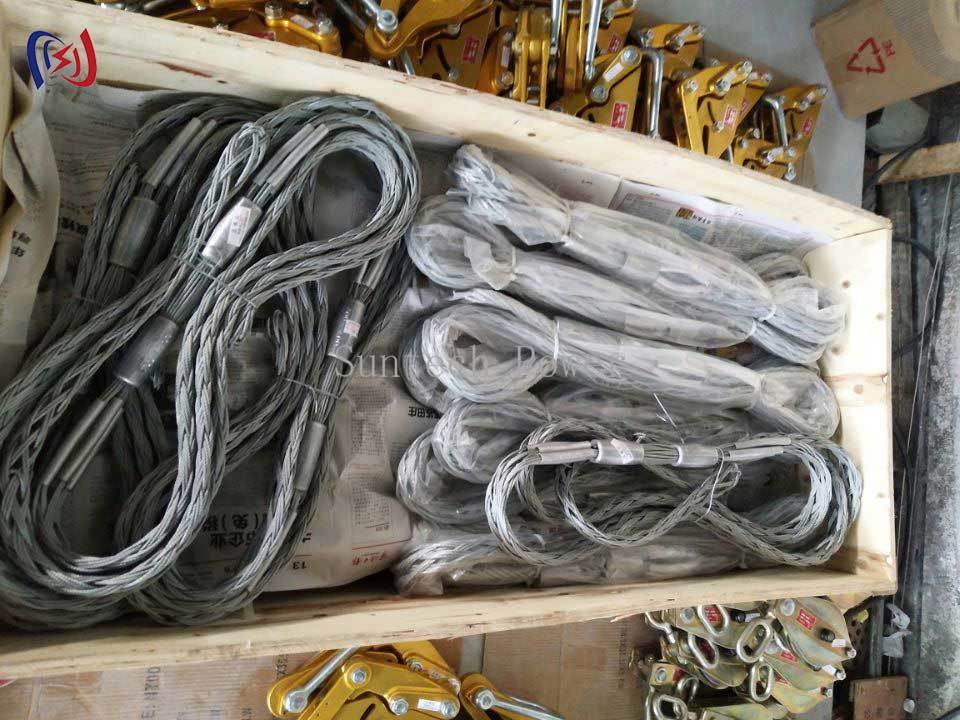

Packaging Details :
Plywood Case
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
LGJ :
70-1250
Rated Load :
15-120KN
Brand Name :
Suntech
Certification :
ISO
Place of Origin :
Ningbo
Description

Mesh Sock Connectors for ACSR70-1250 Conductors Rated 15-120KN


Product Overview

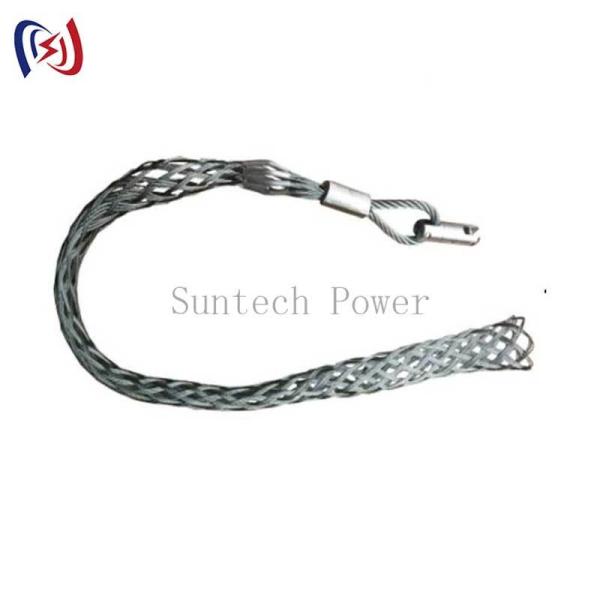

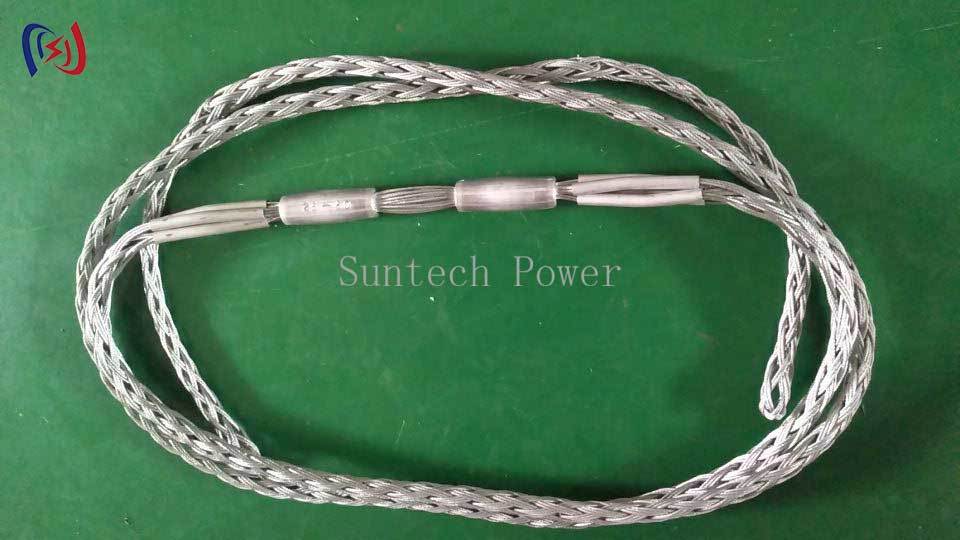

For crews who must grip a bare conductor quickly and firmly, the SLW(S) sock joint is the practical answer. Its stainless steel weave tightens evenly around ACSR conductors from 70 to 1250 sqmm, holding working loads of 15-120KN while breaking strength reaches 30-250KN. The interlocking mesh spreads clamping pressure around the whole circumference, and a zinc-nickel coating keeps the weave rust-free in humid air. Typical duties include line terminations, substation cable hook-ups and underground splices, plus rapid emergency repairs.

Technical Specifications

Item No.

Model

Applicable Conductor (ACSR)

Rated Load (KN)

17161

SLW(S)-1.5

ACSR70-95

15

17162

SLW(S)-2

ACSR120-150

20

17163

SLW(S)-2.5

ACSR185-240

25

17164

SLW(S)-3

ACSR300-400

30

17165

SLW(S)-4

ACSR500-600

40

17166

SLW(S)-5

ACSR720

50

17167

SLW(S)-7

ACSR900

70

17168

SLW(S)-8

ACSR1000-1120

80

17169

SLW(S)-12

ACSR1250

120

Applications

· Terminating overhead conductors at line ends

· Connecting cables inside substations

· Splicing underground cable runs

· Quick temporary fixing during repairs

Product Advantages

· Self-Tightening Interlocked Weave — the mesh grips the conductor from all sides with even pressure, delivering 40 percent stronger holding force than standard joints.

· High-Strength Stainless Weave — stress points are reinforced so the sock carries 15-120KN rated loads and breaking loads up to 250KN.

· Zinc-Nickel Anti-Corrosion Finish — the coating shrugs off humidity and salt air for dependable outdoor service.

· Color-Coded, Tool-Free Fitting — size is identified by color coding and the sock slips on by hand; an optional non-conductive version with an inspection window is available.
