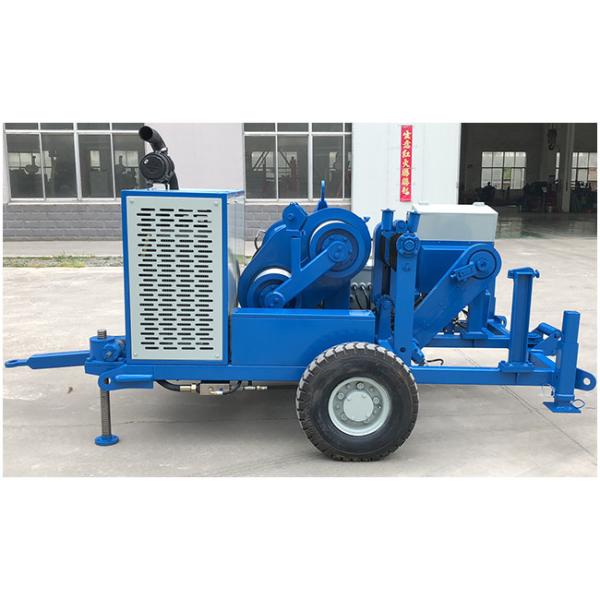

GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN
GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN
GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN
GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN
Specifications
Brand Name :
GALAXY
Model Number :
GP100
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per month
Delivery Time :
10-30days
Packaging Details :
Carton
Max pull force :
100kN
Diesel :
Yanmar Japan 49.2hp/36kw
Engine :
Yanmar Japan
Overall dimension (length*width*height) :
4000*2200*1800mm
Cooling system :
Water
Hydraulic valve :
Sun USA
Description

Cable Pulling Equipment GP100 Yanmar Japan Puller Max Pull Force: 100kN

Model GP100
Max pull force 100kN
Continuous pull effort 80kN
Max speed at Continuous pull 17m/min
Max speed 83m/min
Pull at max speed 15kN
Capstans 350x650mm
Maximum cable diameter 80 mm
Total weight 3350kg

Overall dimension

(length*width*height)

 4000*2200*1800mm
Diesel Yanmar Japan 49.2hp/36kw
Cooling system Water
Electrical system 12V
Engine Yanmar Japan
Hydraulic motor Rexroth German
Hydraulic pump Danfoss
Hydraulic meter German
Operating handle Bondioli & Pavesi Italy
Hydraulic valve Sun USA

Configuration

  • Control panel with instruments for hydraulic system and engine.
  • Hydraulic emergency brake operates automatically at the center of the instruction bar or in the case of hydraulic failure (not suitable for lifting)
  • Large channel steel capstan with anti-skid device
  • Hydraulic oil cooling system
  • In the case of over pull, the preset for maximum tension can stop the puller
  • The hydrostatic loop, which allows the puller to continue to change speed in two rotational modes, can operate only one command

Additional Devices

  • Lighting system for the trailer
  • Rear tension roller with hydraulic drive
  • Chassis, with damping shaft, tires, traction lever, Trailer for towing at max speed of 30 km/h
  • Digital speed and meter counter (extra charge)
