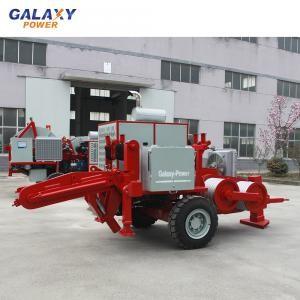

9T Hydraulic Cable Pulling 118kw Transmission Stringing Equipment

9Ton Transmission Stringing Equipment Description:

Product: 9T Cable Pulling Machine For Transmission Line

Pulling type Hydraulic Puller 40KN, 50KN, 60KN, 80KN, 90KN, 120KN,150KN, 180KN, 280KN, 380KN,etc.

A. They are widely used for stringing the conductors & cables(OPGW, ADSS, 500kv tractiong
Rope, ACSR series, etc. ) in the overhead voltage stringing construction.
B. This machine has a set of tension early warning system, which can automatically adjust the
Speed according to the undue load or friction produced on the line and can keep the tension
At setting value.
C. Tension or pulling force can be preset, spring applied brake, reliable overhead protection mechanism, easy to operate.

Remarks: All kinds of stringing equipment can be manufactured according to the customers's requirements.

9Ton Transmission Stringing Equipment Quick details:

1. 9T Cable Pulling Machine For Transmission Line Overhead Line Stringing Equipment

2. Hydraulic Tensioner

3. Diesel: Cummins 118kw(158hp)

4. Main pump and motor: German Rexroth

5. Operating handle: German Rexroth

6. Max rope diameter: 18mm

7. Max pull: 9T

8. Max conductor diameter: 40mm

9. Brand:GALAXY

9Ton Transmission Stringing Equipment Performance:

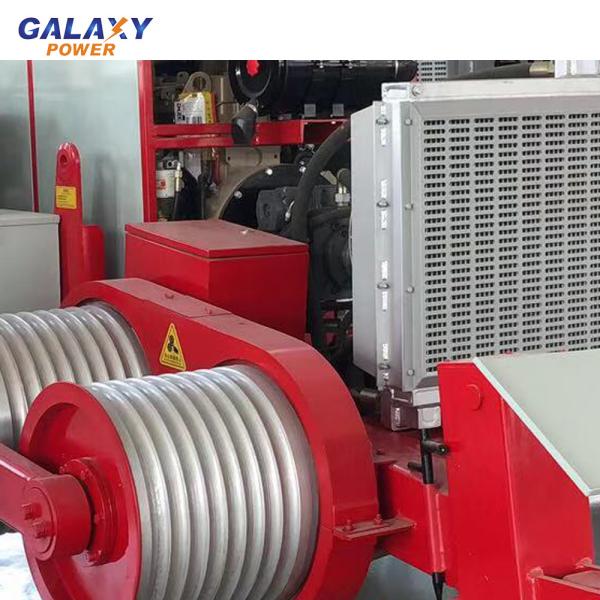

Bull-wheel diameter: 1500mm
Max rope diameter : 18mm
Max conductor diameter: 40mm
Total weight: 4600kg
Overall dimension (length*width*height): 4700×2300×2700mm

9Ton Transmission Stringing Equipment Main configuration:

1. Engine: Cummins
2. Main pump: German Rexroth
3. Main motor speed reducer: German Rexroth
4. Tail bracket hoisting motor: American Eton
5. Hydraulic meter: German
6. Operating handle: German Rexroth

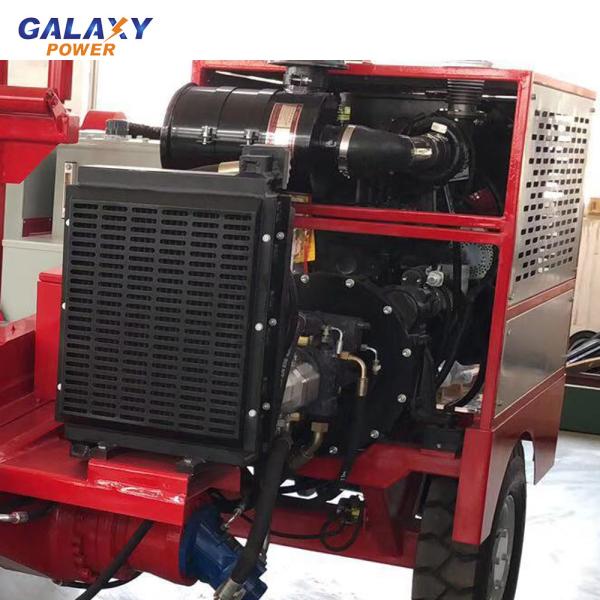

9Ton Transmission Stringing Equipment Engine:

Diesel 118kw(158hp)
Cooling system water
Electrical system 24V

9Ton Transmission Stringing Equipment Configuration:

Negative self-acting hydraulic brakes
Hydraulic dynamometers with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Digital meter counters
Control instruments for hydraulic system and diesel engine
Rigid axles for towing at max speed of 30km/h with mechanical parking brake
Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders with independent controls
Hydraulic front stabilizer
Grounding connection point

Additional Devices:

·Lighting system for the trailer
·Hydraulic brake system for the trailer(extra charge)
·2 hydraulic conductor clamps for drum change
operations (extra charge)
·Electronic pull and speed recorder

Hydraulic Transmission:

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with

2 pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by

automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Company History:

Galaxy power industry limited was established in 2016, a high-tech enterprise in China, We are specializing in R & D,

manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner,

underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical

service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China

which supply more than 200 varieties kinds of goods now.

Production Line:

We have five production lines.

Main configurations of our machine are from Germany and USA

Engine: American Cummins

Main pump: German Rexroth

Main motor: German Rexroth

Speed reducer: German Rexroth

Tail bracket hoisting motor: Amercian Eton

Hydraulic meter: German

Operating handle: German Rexroth

ODM&OEM :

We can do OEM/ODM .All of our products comply with international quality standards and are greatly appreciated

in a variety of different markets throughout the world.Our products sell in Australia, Turkey, Mexico, Panama, Peru,

Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in China.
