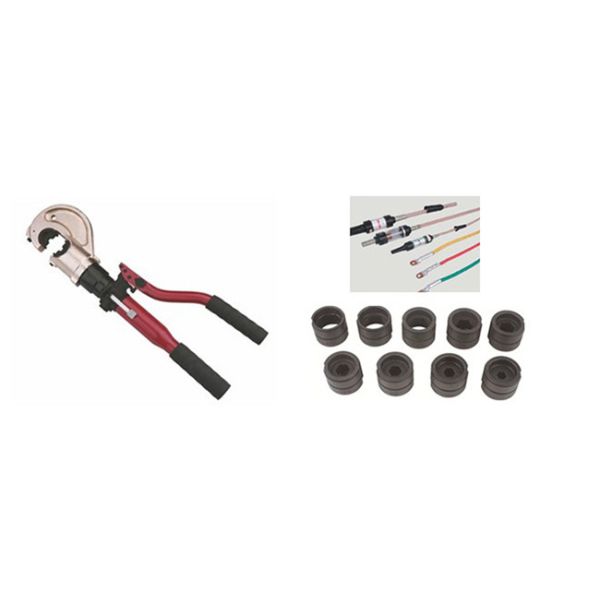

Lineman Tools HT-12030 Heavy Duty Hydraulic Cable Lug Crimping Tool
Lineman Tools HT-12030 Heavy Duty Hydraulic Cable Lug Crimping Tool
Lineman Tools HT-12030 Heavy Duty Hydraulic Cable Lug Crimping Tool
Lineman Tools HT-12030 Heavy Duty Hydraulic Cable Lug Crimping Tool
Specifications
Brand Name :
HANYU
Model Number :
HT-12030
Certification :
ISO9001
Place of Origin :
China
MOQ :
50pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000pieces/month.
Delivery Time :
15-35days
Packaging Details :
CASE
Type :
Hydraulic Cable Lug Crimping Tool
Crimping force :
120KN
Length :
545mm
Crimping type :
Hexagon
Crimping range :
16-300mm2
Stroke :
32mm
Description

Lineman Tools HT-12030 Heavy Duty Hydraulic Cable Lug Crimping Tool

Quick Details
  • Head Design: Crimping head, Rotates 180°, flip top style
  • Hand-load Button: Manual retract in case of need
  • Handle: High tensile aluminum alloy handiness
  • Handle grip: Prevent-slip handle
Model HT-12030
Crimping range 16-300mm2
Crimping force 120KN
Crimping type Hexagon
Stroke 32mm
Length 545mm
Weight 6.5kg
Package Aluminium alloy code case
Standard accessories 35, 50, 70, 95, 120, 150, 185, 240, 300mm2

General features
  • The tool has stages speed of the ram and automatically switches from a fast advancing speed of dies to a slower crimping speed.
  • For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees.
  • The tool is provided with max pressure valve, when the max pressure is activated and a “click” is heard to warn the operator stopping working.
  • With interchangeable crimping dies with multiple crimping geometry’s.

Lineman Tools HT-12030 Heavy Duty Hydraulic Cable Lug Crimping Tool

Other Model

Model HT-300 HT-12032 HT-12038 HT-13042
Crimping range 16-300mm2 16-400mm2 16-400mm2 16-400mm2
Crimping force 60KN 120KN 120KN 130KN
Crimping type Hexagon Hexagon Hexagon Hexagon
Stroke 17mm 32mm 38mm 42mm
Length 460mm 552mm 560mm 560mm
Weight 3.3kg 6.5kg 6.8kg 7.0kg
Package Aluminium alloy code case Aluminium alloy code case Aluminium alloy code case Aluminium alloy code case
Standard accessories 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 50, 70, 95, 120, 150, 185, 240, 300, 400mm2
