Powerline Tools TYQY YB-100 Hydraulic Compressors For Gasoline Pump
Powerline Tools TYQY YB-100 Hydraulic Compressors For Gasoline Pump
Powerline Tools TYQY YB-100 Hydraulic Compressors For Gasoline Pump
Powerline Tools TYQY YB-100 Hydraulic Compressors For Gasoline Pump
Specifications
Brand Name :
HANYU
Model Number :
YB-100
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pieces/month.
Delivery Time :
15-35days
Packaging Details :
Container
Type :
Hydraulic Compressors For Gasoline Pump
Max compression force :
100Mpa
Engine :
Gasoline
Flow :
1.6L/min
Tank capacity :
8L
Power :
5.5hp
Description

Powerline Tools TYQY YB-100 Hydraulic Compressors For Gasoline Pump

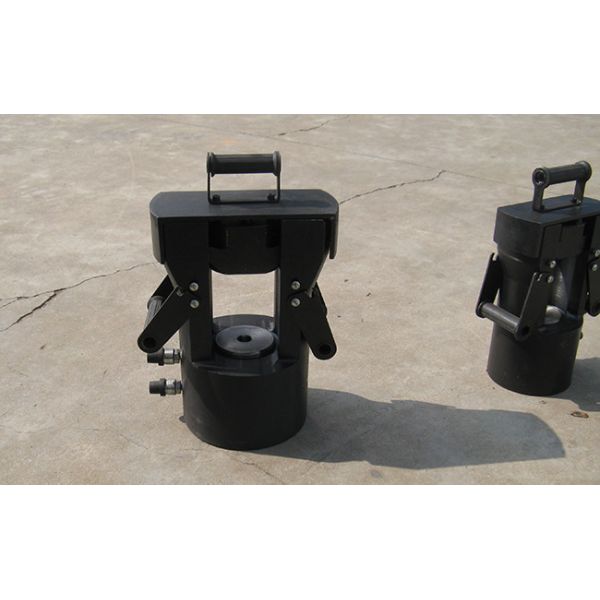

TYQY Hydraulic Compressors

The hydraulic compressors, mainly implemented in press forged steel, have the following characteristics: excellent weight/power ratio; very short pressing cycle (all the presses have an hydraulically-driven piston release); each power unit or manual hydraulic pump (and hoses) is interchangeable with any hydraulic press

For compressor

QY-35 work with hand pump or Single-tube electric pump; QY-65, QY-125, QY-200 work with hydraulic pump.
Model Max compression force (kN) Rated pressure (kN) Conductor size (mm) Max stroke (mm) Weight (kg)
QY-65 650 94 ≤500 25 25
QY-125 1250 94 ≤720 25 40
QY-200 2000 94 ≤1440 25 85
For Die
Model Compressor model Aluminum Dies Steel Dies Copper Dies
QYD-65 QY-65 26/28/30/32/34/36/38/40/45/50 12/14/16/18/20/22/24/26 16~800mm2
QYD-125 QY-125

26/28/30/32/34/36/38/40/45/50/

52/55/60

 12/14/16/18/20/22/24/26 16~800mm2
QYD-200 QY-200

26/28/30/32/34/36/38/40/45/50/

52/55/60/65/70/75/80

12/14/16/18/20/22/24/26/

28/30/32

 16~800mm2
For Gasoline pump
Model Max compression force Engine Flow Tank capacity Power Weight
YB-100 100Mpa Gasoline 1.6L/min 8L 5.5hp 83kg
YB-100D 100Mpa Diesel 1.6L/min 8L 4hp 100kg
YB-100M 100Mpa Motor 1.6L/min 8L 1.5hp 90kg

Powerline Tools TYQY YB-100 Hydraulic Compressors For Gasoline Pump
