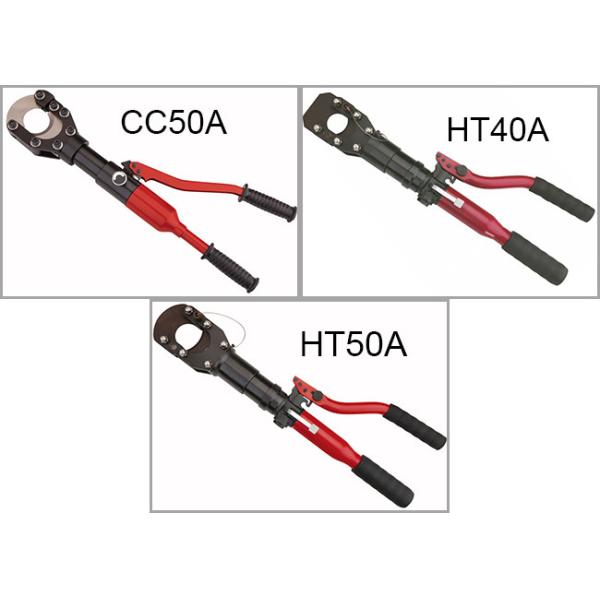

Lineman Tools Cable Cutter HT-50A Manual Hydraulic Wire Rope Cutter
Lineman Tools Cable Cutter HT-50A Manual Hydraulic Wire Rope Cutter
Lineman Tools Cable Cutter HT-50A Manual Hydraulic Wire Rope Cutter
Lineman Tools Cable Cutter HT-50A Manual Hydraulic Wire Rope Cutter
Specifications
Brand Name :
HANYU
Model Number :
HT-50A
Certification :
ISO9001
Place of Origin :
China
MOQ :
50pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000pieces/month.
Delivery Time :
15-35days
Packaging Details :
CASE
Type :
Hydraulic Wire Cutter Manual Hydraulic Wire Rope Cutter
Cutting force :
70KN
Cutting range :
Steel wire Φ30mm
Size :
755*130* 230mm
Weight :
6.2kg
Length :
620mm
Description

Lineman Tools Cable Cutter HT-50A Manual Hydraulic Wire Rope Cutter

General features
  • Hand operated hydraulic tool specifically designed to cut copper, aluminium and tel cables having a max overall diameter from 40 to 85mm.
  • The tool features a double speed action: a fast advancing speed for rapid approach of the blades to the cable and a slower more powerful speed for cutting.
  • The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
  • The head can be easily opened to allow the cutting of running cables.
Model HT-50A
Cutting force 70KN
Cutting range Steel wire Φ30mm
Al/Cu Cable Φ50mm
ACSR Φ50mm
Length 620mm
Weight 6.2kg
Package Plastic case or Steel case
Size

755*130*230mm

Lineman Tools Cable Cutter HT-50A Manual Hydraulic Wire Rope Cutter

Other Model
Model CPC-40A CPC-50A CPC-85A HT-40A CPC-50C CPC-20A CPC-30A CC-50A
Cutting force 70KN 70KN 70KN 70KN 70KN 40KN 70KN 80KN
Cutting range Steel wire Φ25mm Steel wire Φ30mm Armored Cu/Al cable Φ50mm Steel wire Φ25mm Electrical wire Φ50mm Steel wire Φ20mm Tel cable or Al/Cu Cable Φ30mm Electrical wire Φ50mm
Al/Cu Cable Φ40mm Al/Cu Cable Φ50mm Al/Cu Cable Φ85mm Al/Cu Cable Φ40mm Tel cable or Al/Cu Cable Φ50mm Tel cable or Al/Cu Cable Φ20mm Tel cable or Al/Cu Cable Φ50mm
ACSR Φ40mm ACSR Φ50mm ACSR Φ40mm ACSR Φ50mm ACSR Φ18mm ACSR Φ40mm
Length 650mm 660mm 710mm 650mm 570mm 420mm 525mm 610mm
Weight 6.0kg 6.0kg 7.5kg 6.0kg 6.0kg 3.0kg 4.0kg 6.0kg
Package Plastic case Plastic case Steel case Plastic case or Steel case Plastic case Steel case Steel case Steel case
Size

755*130

*230mm

755*130

*230mm

755*130

*230mm

755*130

*230mm

657*95

*170mm
