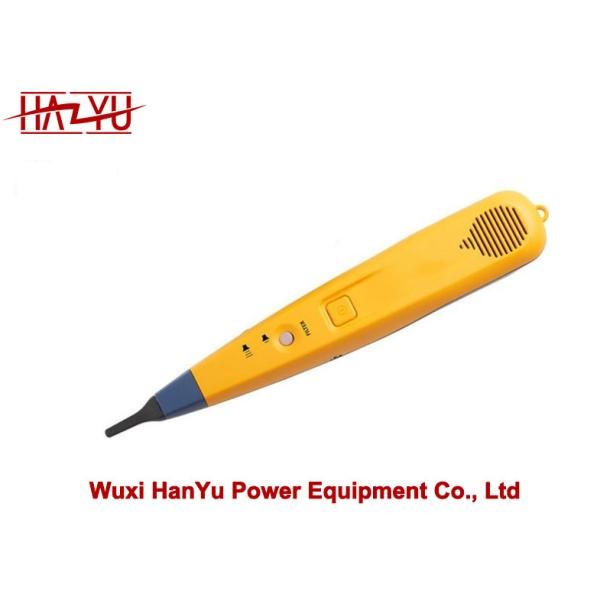

Powerline Tools Pro3000 Analog Probe Filter and Analog Tone Generator
Powerline Tools Pro3000 Analog Probe Filter and Analog Tone Generator
Powerline Tools Pro3000 Analog Probe Filter and Analog Tone Generator
Powerline Tools Pro3000 Analog Probe Filter and Analog Tone Generator
Specifications
Brand Name :
HANYU
Model Number :
Pro3000
Certification :
ISO9001
Place of Origin :
China
MOQ :
10set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000sets/month.
Delivery Time :
15-35days
Packaging Details :
Case
Type :
Analog Probe Filter and Tone Generator
Output Power in Tone Mode :
8 dbm into 600 ohms
Temperature :
Operating: -20°C to 60°C, Storage: -40° to 70° C
Over Voltage Protection :
60 Vdc in Toner/Polarity Mode
Alternating Frequency :
1000/1500 Hz nominal
Dimensions :
2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm)
Description

Powerline Tools Pro3000 Analog Probe Filter and Analog Tone Generator

Stop the Buzz.

Find Cables Faster with Clear, Precise Toning

• Clear - Innovative filter technology blocks interference (“buzz") that makes tracing difficult (T** models only)

• Precise - SmartTone™ technology provides five distinct tones for exact pair identification

• Sends loud tone up to 10 miles (16 kilometers) on most cables

• Loud speaker on probe makes the tone easier to hear through drywall, wood, and other enclosures

• Angled bed-of-nails clips allow easy access to individual pairs

• RJ-11 connector is ideal for use on telephone jacks

• Attach nylon pouch (included in kit) to your belt for easy

Pro 3000 Toner Specifications
User Interface

Slide Switch selects Continuity or Tone Mode Push button switch selects SOLID, ALT, or OFF Tone mode LED

Continuity/Polarity LED
Solid Frequency 1000 Hz nominal
Dimensions 2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm)
Alternating Frequency 1000/1500 Hz nominal
Over Voltage Protection 60 Vdc in Toner/Polarity Mode
Temperature Operating: -20°C to 60°C, Storage: -40° to 70° C
Output Power in Tone Mode 8 dbm into 600 ohms
Battery 9V alkaline
Output Voltage Level in Continuity Mode 8 Vdc with fresh battery
Feature Pro3000 Analog Tone and Probe Pro3000F60-KIT Pro3000F50-KIT Intellitone Pro 200 (MT-8200-60-KIT)
Analog Signal tracing X X X X
Digital Signal tracing X
SmartTone™ X X X X
Used on Inactive Networks X X X X
Used on Active Networks X
Frequency Filter 60 Hz 50 Hz
3.5 mm Jack X X X
Replacable Tip X X X
Auto-Off X (Probe - 5 minutes) X (Probe - 5 minutes) X (Toner= 2.5 hours, Probe = 1 hour)
Wiremap X
Signal Strength Indicator X

Features

  • Pro3000 Analog Toner Specifications:
  • Solid Frequency - 1000 HZ Nominal
  • Alternating Frequency - 1000/1500 HZ Nominal
  • Over Voltage Protection - 60 VDC om Toner/Polarity mode
  • Output Power in Tone Mode - 8 dbm into 600 ohms
  • Output Voltage Level in - 8 vdc with fresh battery
  • Battery type - 9v alkaline
  • Temperature - Operating -20 degree C to 60 degree C, storage : -40 degree C - 70 degree C
  • Pro3000 Analog Probe Specifications:
  • User Interface - On/Off push button, Volume Dial, Replaceable grip, 3.5mm earphone jack
  • Battery - 9V Alkaline
  • Temperature - Operating: -20 degree C to 60 degree C storage -40 degree C - 70 degree C
  • Signal Interference can be caused by multiple sources (I.e. power cables, fans, lighting, etc.) and can make tracing communication cabling almost impossible.
  • Analog Tone Generator and Probe Tracing Kit Network probe utilizes innovative filter technology to obstruct signal interference to make tracing your cable easier, regardless of the work environment. Depending on the region, signal interference may be at 60 Hz, which is most common in North America, or 50 Hz, which is more common in Europe and Asia. For this reason, there are 2 versions of Analog Tone Generator and Probe Tracing Kit Network Filtered Probe. Analog Tone Generator and Probe Tracing Kit Network60, which obstructs 60 Hz signals and its harmonics and Analog Tone Generator and Probe Tracing Kit Network50, which blocks interference at 50 Hz and its harmonics.
  • Technicians can also switch between filtered and unfiltered modes with a simple push of a button. The probe's loud speaker also allows for use in noisy locations and for tracing cable through drywall, wood and other enclosures. The probe also touts an auto-off feature that deactivates the probe after 5 minutes to conserve battery life.
