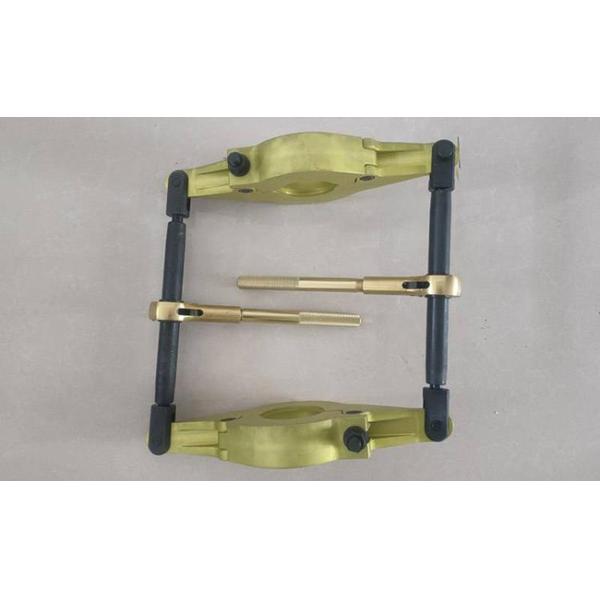

Load 70kN Insulator Replacement Tool Power Line Tools And Equipment
Load 70kN Insulator Replacement Tool Power Line Tools And Equipment
Load 70kN Insulator Replacement Tool Power Line Tools And Equipment
Load 70kN Insulator Replacement Tool Power Line Tools And Equipment
Specifications
Brand Name :
HANYU
Model Number :
TYDBK-30
Certification :
ISO9001
Place of Origin :
China
MOQ :
30pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
6000pieces/month.
Delivery Time :
15-35days
Packaging Details :
Case
Type :
Insulator Replacement Tool
Rated load (KN) :
30
Ordinary insulator type (KN) :
70
Voltage class (KV) :
10~35
Fixture center distance (mm) :
350~380
Screw stroke (mm) :
220
Description

Powerline Tools TYDBK-30 Rated Load 70kN Insulator Replacement Tool

Model

Rated load

(KN)

 Ordinary insulator type (KN)

Voltage class (KV)

Fixture center distance

(mm)

Screw stroke

(mm)

Main material
TYDBK-30 30 70 10~35 350~380 220 Aluminum alloy
TYDBK-36 36 100 35~110 380~400 220 Aluminum alloy
TYDBK-42 42 160 110~220 400~420 420~620 Aluminum alloy
TYDBK-46 46 210 110~220 420~440 450~720 Aluminum alloy
TYDBK-80 80 300 220~330 420~500 480~720 Aluminum alloy
TYDBK-100 100 400 220~500 480~520 480~720 Aluminum alloy
TYDBK-125 125 420 220~500 480~520 480~720 Aluminum alloy
TYDBK-150 150 550 500~1000 540~600 480~750 Aluminum alloy

The closed card is designed for 10-1000KV potential or power failure to replace the porcelain bottle. It is mainly used for any piece of porcelain bottle in the tension-resistant porcelain bottle string or straight-line porcelain bottom string. Tighten the broken porcelain bottle string on both sides, loosen the middle one and replace it at the same time, and then release the two tightened porcelain bottles. Either the job can be done or the end clamps can be produced.

Applicable: porcelain bottle insulator; glass insulator

Tools should be used when using: canceller (sold separately)

Front and rear hanging points: steel cap.
