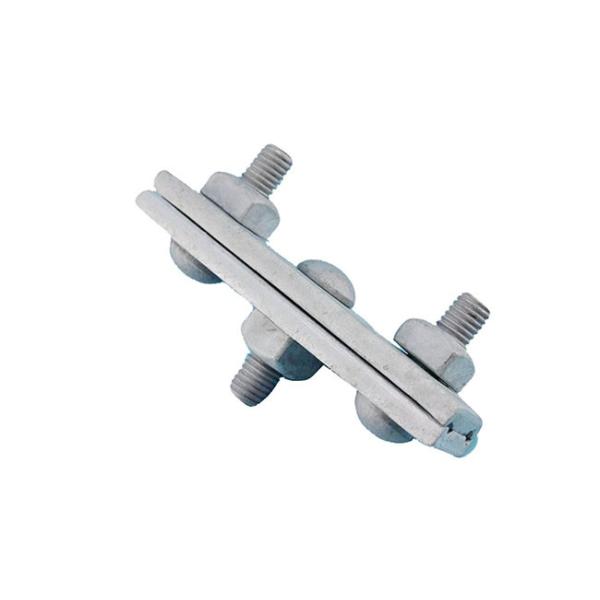

152mm Length Pole Line Hardware 3 Bolt Suspension Clamp
152mm Length Pole Line Hardware 3 Bolt Suspension Clamp
152mm Length Pole Line Hardware 3 Bolt Suspension Clamp
152mm Length Pole Line Hardware 3 Bolt Suspension Clamp
Specifications
Brand Name :
HANYU
Model Number :
P-*G0103-H2
Certification :
ISO9001
Place of Origin :
China
MOQ :
30pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
6000pieces/month.
Delivery Time :
15-35days
Packaging Details :
Case
Bolt Diameter :
5/8
Approximate Ship Weight :
122.00kg./100 pcs
Standard :
30Pkg.Qty./Carton
No.of Bolt :
3
Length :
152mm
Type :
Bolt Suspension Clamp
Description

Powerline Tools P-*G0103-H2 Pole Line Hardware 3 Bolt Suspension Clamp

Guy Clamp Manufacturing Process:
  • Our Guy Clamp manufacturing process consists of the following stages:
  • Firstly, hot rolling, where the blank gets cut, heated and rolled till it becomes of the needed size and form.
  • And then pressing hole on the carbon steel.
  • The final process is doing hot dip galvanizing.
Material:
  • Constructed of high quality steel, hot-dip galvanized. Guy clamps are rolled from premium quality carbon steel. So far, this is one of the best materials for making guy clamps and other power line fittings. The steel material is strong enough and has a high tensile strength to sustain mechanical forces.
Strength:
  • There are many factors that influence the strength of a loop type dead-end formed by a guy clamp. Such as guy clamp materials, guy strand type, the number of bolts, and clamp bolt torque.
Surface treatment:
  • The strength of the steel guy clamp is boosted through a hot-dip galvanization process. Since this pole line fitting is exposed to various elements of nature such as rain, high temperature, humidity, and chemicals, it needs ultimate protection. The galvanization process creates a coating that shields the steel material from all these elements.

Stock No. No.of Bolt Bolt Diameter Clamp Dimension Approximate Ship Weight Standard
Length Width Thickness
Inch mm kg./100 pcs Pkg.Qty./Carton
Heavy Duty-Drop Forged
P-*G0101-H1 1 1/2 42 44 9.1 30.50 50
P-*G0101-H2 1 5/8 50 44 9.1 35.00 50
P-*G0102-H1 2 1/2 62 44 9.1 60.00 50
P-*G0102-H2 2 5/8 70 44 9.1 64.50 50
P-*G0103-H1 3 1/2 100 44 9.1 103.50 40
P-*G0103-H2 3 5/8 152 44 9.1 122.00 30
Light Duty-Press Forged
P-G0101-L1 1 1/2 42 44 8.3 24.40 50
P-G0101-L2 1 5/8 50 44 8.3 28.50 50
P-G0102-L1 2 1/2 62 44 8.3 48.40 50
P-G0102-L2 2 5/8 70 44 8.3 52.00 50
P-G0103-L1 3 1/2 100 44 8.3 83.00 40
P-G0103-L2 3 5/8 152 44 8.3 97.50 30

Used to secure figure 8 cable to telephone poles.

Each Suspension Clamp is comprised of two aluminum plates, two 1/2" carriage bolts, and two square nuts.

The plates are extruded and stamped from 6063-T6 Aluminum.

Center hole accommodates 5/8" bolts.

Figure 8 Three-Bolt Suspension Clamps are 6" long.

Carriage bolt and nuts are formed from Grade 2 Steel.

Carriage bolts and square nuts are hot dip galvanized to meet ASTM Specification A153.

A nut and square washer is used between the clamp and pole to provide proper spacing.
