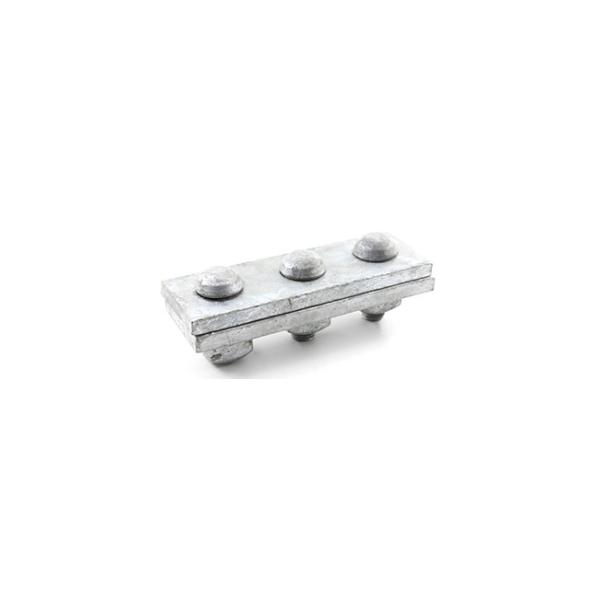

Heavy Duty Drop Forged Cable Clamps 152mm 3 Bolt Suspension Clamp
Heavy Duty Drop Forged Cable Clamps 152mm 3 Bolt Suspension Clamp
Heavy Duty Drop Forged Cable Clamps 152mm 3 Bolt Suspension Clamp
Heavy Duty Drop Forged Cable Clamps 152mm 3 Bolt Suspension Clamp
Specifications
Brand Name :
HANYU
Model Number :
P-*G0103-H2
Certification :
ISO9001
Place of Origin :
China
MOQ :
30pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
6000pieces/month.
Delivery Time :
15-35days
Packaging Details :
Case
Type :
3 bolt suspension clamp
Length :
152mm
Bolt Diameter :
5/8
Standard :
30Pkg.Qty./Carton
No.of Bolt :
3
Approximate Ship Weight :
122.00kg./100 pcs
Description

Powerline Tools P-*G0103-H2 Heavy Duty-Drop Forged Wire Clamp Bolt Suspension Clamp

Stock No. No.of Bolt Bolt Diameter Clamp Dimension Approximate Ship Weight Standard
Length Width Thickness
Inch mm kg./100 pcs Pkg.Qty./Carton
Heavy Duty-Drop Forged
P-*G0101-H1 1 1/2 42 44 9.1 30.50 50
P-*G0101-H2 1 5/8 50 44 9.1 35.00 50
P-*G0102-H1 2 1/2 62 44 9.1 60.00 50
P-*G0102-H2 2 5/8 70 44 9.1 64.50 50
P-*G0103-H1 3 1/2 100 44 9.1 103.50 40
P-*G0103-H2 3 5/8 152 44 9.1 122.00 30

Stock No. No.of Bolt Bolt Diameter Clamp Dimension Approximate Ship Weight Standard
Length Width Thickness
Inch mm kg./100 pcs Pkg.Qty./Carton
Light Duty-Press Forged
P-G0101-L1 1 1/2 42 44 8.3 24.40 50
P-G0101-L2 1 5/8 50 44 8.3 28.50 50
P-G0102-L1 2 1/2 62 44 8.3 48.40 50
P-G0102-L2 2 5/8 70 44 8.3 52.00 50
P-G0103-L1 3 1/2 100 44 8.3 83.00 40
P-G0103-L2 3 5/8 152 44 8.3 97.50 30

Product Description
  • Three Bolt Guy clamp, also called 3 bolt suspension clamp, rolled from carbon steel with straight parallel grooves that will not damage the strand.
  • 3 Bolt Guy Clamp is mainly used on communication line, together with the stay wire and anchor rod to make the pole stable. When the stay wire goes across the anchor rod, the 3 bolt clamp bites the end of the stay wire to prevent the stay wire from creeping down. The grooves of the guy clamp clad the stay wire, and the bolt will fasten two pieces of guy clamp clamping the stay wire.
  • In another installation way, the 3 bolt guy clamp is replaced by the wire rope clip or guy grip. Some types of guy clamps have curved ends, protecting the wire from damage.
  • The guy clamp consist of two plates with three bolts equipped with nuts. The clamping bolts have special shoulders to prevent turning when the nuts are tightened.
  • Guy clamp is a type of suspension clamp for overhead power line and communication line, it can be used in loop type guy dead-ends. Guy clamp is also called guy wire clamp, parallel groove clamp or straight cable suspension clamp.
  • According to the number of clamping bolts used on the clamp, there are 1 bolt guy clamps, 2 bolt guy clamps and 3 bolt guy clamps. Guy clamps are designed and manufactured for optimum performance levels.
  • In terms of the design and the structural appearance, these guy clamps are straight and have parallel grooves. This design ensures that the guy strands are not damaged during the installation process. The design also ensures that the guy clamps have the maximum holding strength.
  • Guy clamps come in different sizes. The size is determined by the length, width, and diameter of the groove. This means that some guy clamps are longer or wider than others. At the same time, the groove of some guy clamps can support wider strands than others.
  • The plate halves of the guy clamp are aligned evenly hence easing the installation process. You will not make any mistake when it comes to installing the strands through the guy clamp.
  • If you would like to get more information about this overhead line fitting, including the guy clamp price, just contact us. We will give you all the technical information that you need to know about the guy clamp.
