• Bull-wheel diameter: 1500mm

• Max rope diameter : 18mm

• Max conductor diameter: 40mm

• Groove number: 10

• Overall dimension (length*width*height): 4700×2300×2700mm

• Total weight: 6800kg

• Max pull: 90kN

• Speed at max pull: 2.4km/h

• Pull at max speed: 44kN

• Max speed: 5km/h

• Max tension: 90kN

• Max speed: 5km/h

• Diesel 118kw(158hp)

• Cooling system water

• Electrical system 24V

• Engine: Cummins

• Operating handle: German Rexroth

• Hydraulic meter: German WIKA

• Main motor: German Rexroth

• Hydraulic pump: German Rexroth

• Speed reducer: German Rexroth / Italy Bonfiglioli

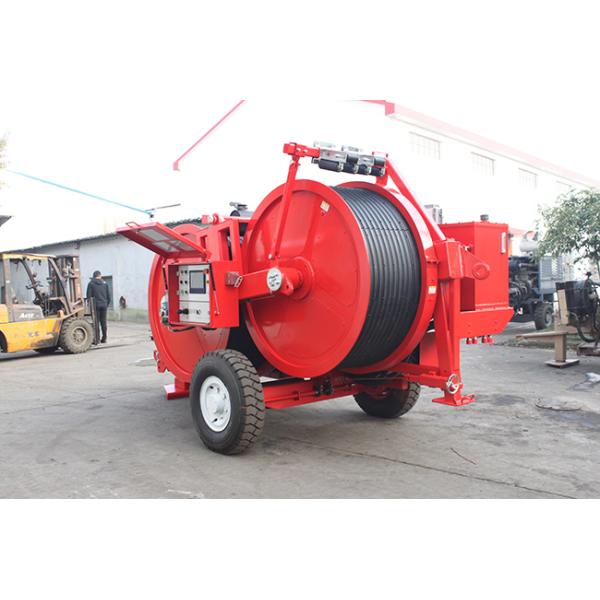

TY90TP Hydraulic Puller-Tensioner

• The machine is suitable to string one or two ropes or bundled conductors.

• The bull-wheel grooves are made of high resistance interchangeable nylon sectors.

• The machine is completely electronically controlled.

Configuration

• Negative self-acting hydraulic brakes

• Control instruments for hydraulic system and diesel engine

• Hydraulic oil cooling system

• Digital meter counters

• Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders

• Rigid axles for towing at max speed of 15km/h with mechanical parking brake

• Grounding connection point

• Hydraulic front stabilizer

• Hydraulic dynamometers with set-point and automatic control of maximum pull

• Closed hydraulic circuit for step less speed variation in both rotating directions.

• This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices

• Lighting system for the trailer

• Digital speed and meter counter

• 2 hydraulic rope/conductor clamp(extra charge)

• Trailer for towing at max speed of 15 km/h

• Swivel guide rope roller
