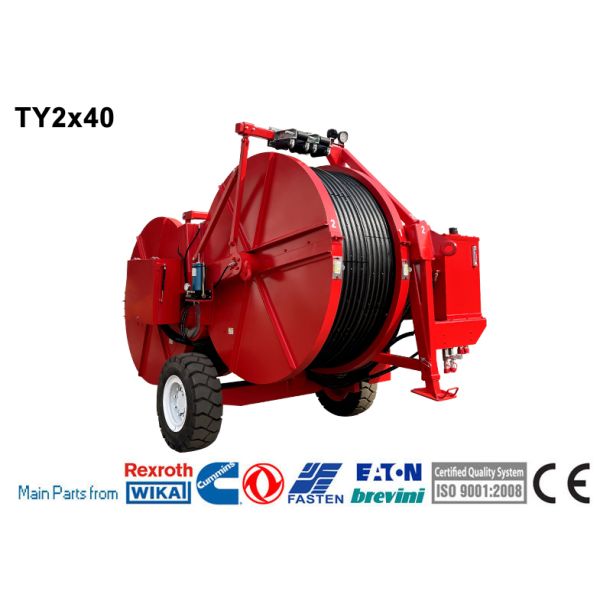

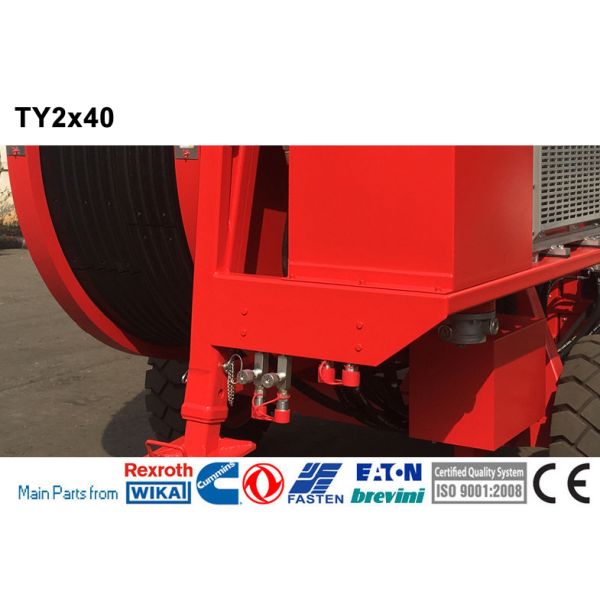

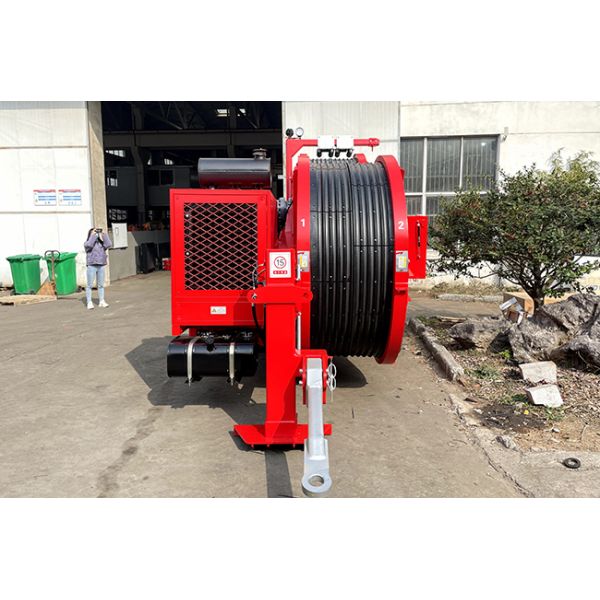

Max Continuous Tension 2x40kN Stringing Equipment Cable Hydraulic Tensioner
Max Continuous Tension 2x40kN Stringing Equipment Cable Hydraulic Tensioner
Max Continuous Tension 2x40kN Stringing Equipment Cable Hydraulic Tensioner
Max Continuous Tension 2x40kN Stringing Equipment Cable Hydraulic Tensioner
Specifications
Brand Name :
HANYU
Model Number :
TY2x40-1800
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD57,500-61,000/set
Supply Ability :
10Sets/Month
Delivery Time :
15-35days
Packaging Details :
Container
Max intermittent tension :
2x45kN
Max continuous tension :
2x40kN
Engine :
Cummins
Groove number :
2x5
Bull-wheel diameter :
1800mm
Type :
Stringing Equipment Hydraulic Cable Tensioner
Description

Max Continuous Tension 2x40kN Stringing Equipment Cable Hydraulic Tensioner

TY2x40-1800 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics
  • Bull-wheel diameter: 1800mm
  • Max conductor diameter: 40mm
  • Groove number: 2x5
  • Total weight: 7790kg
  • Overall dimension (length*width*height): 4600×2250×2700mm

Performance
  • Max intermittent tension: 2x45kN
  • Max continuous tension: 2x40kN
  • Speed at max tension: 2.5km/h
  • Max speed: 5km/h
  • Pull at max speed: 2x20kN
  • Max reverse pulling force: 2x35kN
  • Max reverse pulling speed: 5km/h
Main configuration
  • Engine: Cummins
  • Hydraulic pump: German Rexroth/Dnish Danfoss
  • Main motor:German Rexroth/French Leduc
  • Speed reducer: German Rexroth / Italy Bonfiglioli
  • Main hydraulic valves: USA Sun / Italy ATOS
Engine
  • Diesel: 77kw(103hp)
  • Cooling system: water
  • Electrical system: 24V

Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.

Configuration
  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Digital speed and meter counter
  • Hydraulic front stabilizer
  • Grounding connection point
  • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Additional Devices
  • Lighting system for the trailer
  • 2 hydraulic rope/conductor clamp(extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 15 km/h
  • Digital speed and meter counter
