FODM217DR2 1 Channel Integrated Circuits Transistor Output Optocouplers
FODM217DR2 1 Channel Integrated Circuits Transistor Output Optocouplers
FODM217DR2 1 Channel Integrated Circuits Transistor Output Optocouplers
FODM217DR2 1 Channel Integrated Circuits Transistor Output Optocouplers
Specifications
Brand Name :
original
Model Number :
FODM217DR2
Certification :
ISO9001:2015standard
Place of Origin :
original
MOQ :
10pcs
Price :
Contact us to win best offer
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
10000pcs/months
Delivery Time :
1-3 workdays
Packaging Details :
Standard
Mounting Style :
SMD/SMT
Package / Case :
SOP-4
Number of Channels :
1 Channel
Isolation Voltage :
3750 Vrms
Output Type: :
NPN Phototransistor
Packaging :
Cut Tape
Description

FODM217DR2 1 Channel integrated circuits transistor output optocouplers 4 PIN TRANSISTOR OUTPUT MFP SR2835ESKG

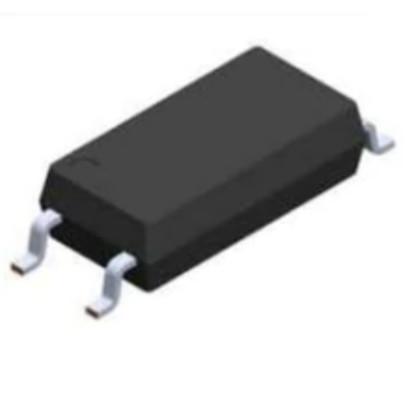

The FODM217 series consist of a gallium arsenide infrared emitting diode driving a phototransistor. The FODM214 series consist of two gallium arsenide infrared emitting diodes connected in inverse parallel for AC operation. Both were built in a compact, half−pitch, mini−flat, 4−pin package. The lead pitch is 1.27 mm

Features

• Current Transfer Ratio Ranges from 20 to 600% at IF = ±1 mA, VCE = 5 V, TA = 25°C

♦ FODM214 − 20 to 400%

♦ FODM214A − 50 to 250% at IF = 5 mA, VCE = 5 V, TA = 25°C

♦ FODM217A − 80 to 160%

♦ FODM217B − 130 to 260%

♦ FODM217C − 200 to 400%

♦ FODM217D − 300 to 600%

• Safety and Regulatory Approvals:

♦ UL1577, 3750 VACRMS for 1 min

♦ DIN EN/IEC60747−5−5, 565 V Peak Working Insulation Voltage

• Applicable to Infrared Ray Reflow, 260°C Typical Applications

• Primarily Suited for DC−DC Converters

• For Ground Loop Isolation, Signal to Noise Isolation

• Communications – Adapters, Chargers

• Consumer – Appliances, Set Top Boxes

• Industrial – Power Supplies, Motor Control, Programmable Logic Control

FODM217DR2 1 Channel Integrated Circuits Transistor Output Optocouplers

FODM217DR2 1 Channel Integrated Circuits Transistor Output Optocouplers

FODM217DR2 1 Channel Integrated Circuits Transistor Output Optocouplers

Product Category: Transistor Output Optocouplers
SMD/SMT
SOP-4
1 Channel
3750 Vrms
NPN Phototransistor
300 %
50 mA
1.4 V
80 V
50 mA
0.4 V
3 us
3 us
6 V
150 mW
- 55 C
+ 110 C
FODM217D
Reel
Cut Tape
MouseReel
Configuration: 1 Channel
Product Type: Transistor Output Optocouplers
3000
Subcategory: Optocouplers
Unit Weight: 0.002822 oz
