HV Transformer Coiling Winder Automatic Coil Winding Machine
HV Transformer Coiling Winder Automatic Coil Winding Machine
Specifications
Brand Name :
STT
Model Number :
ZPX1200
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T,L/C
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
seaworthy packing
Name :
automatic coil winding machine
Winding width :
1200mm, maximum
Rotating motor :
5.5kw
Winding speed :
0 ~ 80rpm
Servo motor :
0.75kw
Wire guide :
1 pc
Machine color :
as requested
Warranty :
12 months
Description

Factory Direct Sales HV Transformer Coiling Winder Automatic Coil Winding Machine


Description of automatic coil winding machine ZPX1200

Automatic coil winding machine ZPX1200 is a special wire coiling winding machine. The coil winding machine is mainly used to wind wire to make transformer coils and other similar products. The coil winding machine is provided with a wire guide, which make the coil winding machine lay the wire automatically. The coil winding machine’s control system is based on PLC. With PLC and HMI, the automatic coil winding machine can be operated very easily.


Features of automatic coil winding machine ZPX1200

· slow starting

· smooth running

· optional color

· big power

· high automation

· 12 months warranty



Main Parameters of automatic coil winding machine ZPX1200

The following is the standard specifications of automatic coil winding machine ZPX1200 and the machine can also be manufactured as requested.

Center Height From Floor:

900mm

Winding Square Shaft Size:

50x50mm

Maximum Winding Width:

1200mm

Winding Power:

5.5kw

Winding Speed:

0 ~ 160 rpm

Max. Flat Wire Size:

5X12mm

Round Wire Diameter:

Φ0.3mm ~ Φ5.0mm

Maximum wound Coil OD.:

Φ800mm

Maximum Capacity:

800kg

Counting Mode:

5-digit counting

Counting Range:

0 ~ 9999.9

HV Transformer Coiling Winder Automatic Coil Winding Machine

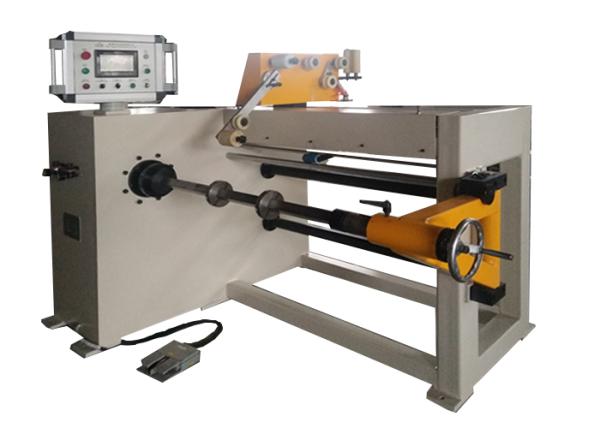

Fig 1: Automatic coil winding machine ZPX1200's front view

HV Transformer Coiling Winder Automatic Coil Winding Machine
Fig 2: Automatic coil winding macihne ZPX1200's side view
