LV Transformer Foil Sheet Winder Copper Foil Winding Machine
LV Transformer Foil Sheet Winder Copper Foil Winding Machine
Specifications
Brand Name :
STT
Model Number :
BRJ600-2
Certification :
CE, etc
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T,L/C
Supply Ability :
100 sets per year
Delivery Time :
45 days
Packaging Details :
seaworthy packing
Name :
transformer foil winding machine
Function :
winding foil coil
Cu foil thickness :
0.2 ~ 2.0mm
Al foil thickness :
0.3 ~ 3.0mm
Control system :
PLC
Foil decoiler :
2 set
Deburring :
2 set
Power supply :
3-phase 380V 50Hz
Description

LV Transformer Foil Sheet Winder Copper Foil Winding Machine


Description of copper foil winding machine BRJ600-2

Copper foil winding machine BRJ600-2 is a professional coiling winding machine, which can wind both copper foil and aluminium foil to make transformer coils and other similar products. With two foil decoilers and two insulation decoilers, the copper foil winding machine can hold one or two layers of foil and one or two layers of insulation paper at once. The copper foil winding machine is provided with a TIG welding unit for welding foil and bus bar together. With a touch screen and PLC control system, the copper foil winding machine can be operated very easily.


Quick details of copper foil winding machine BRJ600-2

  • Maximum 600mm foil width
  • Winding both copper foil and aluminium foil
  • Foil conductor ID 500mm, Maximum OD 1000mm
  • TIG welding unit
  • Pressing roller
  • Customized color


Technical parameters of copper foil winding machine BRJ600-2

Typical standard specifications of copper foil winding machine BRJ600-2 are shown below and the copper foil winding machine can also be manufactured as requested.

Foil width:

200 ~ 600mm

Maximum Finished Coil OD:

Ø800mm

Finished Coil Shape:

oval, circle and rectangular

Conductor Foil Material OD.:

Ø1,000mm, maximum

Conductor Foil Material ID.:

Ø500mm

Foil Decoiler Number:

2 pcs

Winding Mandrel Size:

80×80×950 mm

Power:

11kw

Maximum Winding Speed:

26rpm

Welding Mode:

TIG

Insulation Decoiler Number:

2 pcs

Insulation Decoiler Shaft:

Expandable (pneumatic open/close action)

End-fill Strip Feeder:

6 pcs

Edge Alignment System:

Photoelectric sensing

Control System:

PLC

User Interface:

10inch (254mm) touch screen

Counting Range:

0 ~ 9999.9


LV Transformer Foil Sheet Winder Copper Foil Winding Machine

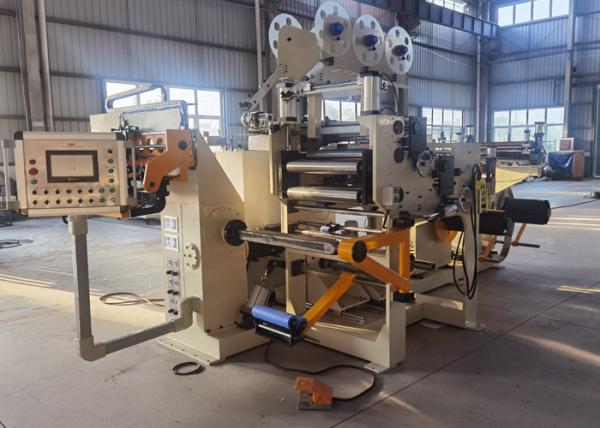

Fig 1: Copper foil winding machine BRJ600-2's front view


LV Transformer Foil Sheet Winder Copper Foil Winding Machine

Fig 2: Copper foil winding machine BRJ600-2's insulation decoiler


LV Transformer Foil Sheet Winder Copper Foil Winding MachineLV Transformer Foil Sheet Winder Copper Foil Winding MachineLV Transformer Foil Sheet Winder Copper Foil Winding MachineLV Transformer Foil Sheet Winder Copper Foil Winding Machine
