HV Winder Automatic Coiling Transformer Coil Winding Machine
HV Winder Automatic Coiling Transformer Coil Winding Machine
Specifications
Brand Name :
STT
Model Number :
ZPX800
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T,L/C
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
seaworthy packing
Product name :
transformer coil winding machine
Usage :
winding wire coil
Winding width :
800mm, maximum
Rotating speed :
0 ~ 160rpm
Control system :
PLC
Warranty time :
12 months
Rotating power :
4kw
Machine color :
as requested
Description

HV Winder Automatic Coiling Winding Machine Transformer Coil Winding Machine



Description of transformer coil winding machine ZPX800

Transformer coil winding machine ZPX800 is a professional coiling winding machine. The coil winding machine is mainly used to wind copper wire or aluminium wire to make transformer coils or other similar products. With a wire guide, the transformer coil winding machine can lay the wire automatically when winding the wire. The coil winding machine can stop or start the machine and switch the rotating direction through the foot pedal. The transformer coil winding machine is provided with PLC, which guarantees the coil winding machine can be operated easily.


Main features of transformer coil winding machine ZPX800

l Slow starting

l Smooth running

l Full function

l High automation

l Automatic laying wire

l Counting turns

l Adjustable winding speed

l Optional color


Main parameters of transformer coil winding machine ZPX800

The standard specification of transformer coil winding machine ZPX800 are as following and the coil winding machine can also be manufactured as requested.

Center height:

900mm

Shaft mounting mode:

Welding on flange

Max. Winding Width:

800mm

Winding Motor Power:

4kw

Winding Speed:

0 ~ 160 rpm

Max. Flat Wire Size:

5X12mm

Round Wire Diameter:

Ø0.3 ~ 5.0mm

Max. Wound Coil OD.:

Ø800mm

Max. Capacity:

700kg

Counting Range:

0 ~ 9999.9

Power Supply:

3-phase 380V 50Hz


HV Winder Automatic Coiling Transformer Coil Winding Machine

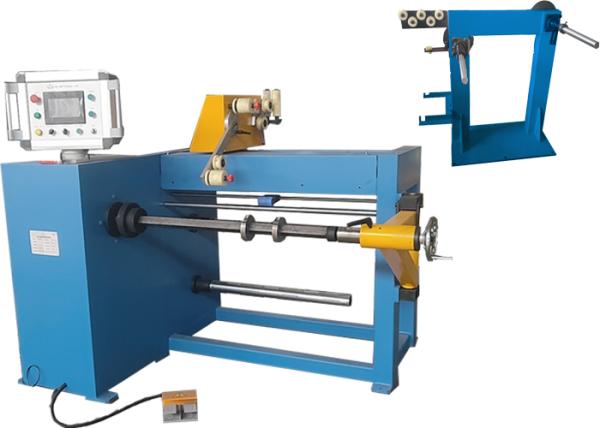

Fig 1: Transformer coil winding macihne's front view

HV Winder Automatic Coiling Transformer Coil Winding Machine

Fig 2:Transformer coil winding machine's wire guide

HV Winder Automatic Coiling Transformer Coil Winding MachineHV Winder Automatic Coiling Transformer Coil Winding MachineHV Winder Automatic Coiling Transformer Coil Winding MachineHV Winder Automatic Coiling Transformer Coil Winding Machine

HV Winder Automatic Coiling Transformer Coil Winding Machine
