Semi Automatic Copper Coiling Winder Transformer Coil Winding Machine
Semi Automatic Copper Coiling Winder Transformer Coil Winding Machine
Specifications
Brand Name :
STT
Model Number :
GDY-3T
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T,L/C
Supply Ability :
100 sets per year
Delivery Time :
20 days
Packaging Details :
seaworthy packing
Product name :
Transformer Coil Winding Machine
Counter :
Digital
Function :
winding wire coil
Motor power :
7.5KW
Operation mode :
Semi Automatic
Power supply :
as requested
Rotating speed :
0 ~ 40rpm
Warranty period :
12 months
Description

Semi Automatic Copper Coiling Winder Transformer Coil Winding Machine


Description of transformer coil winding machine GDY-3T

Transformer coil winding machine GDY-3T is a professional coiling winder equipment. The transformer coil winding machine is a kind of semi automatic winder and the coil winding machine is provided with a counter to count the number of turns when the coil winding machine is winding wire. The foot pedal of the coil winding machine can be used to stop and start running the transformer coil winding machine and switch the rotating direction. The transformer coil winding machine features slow starting, smooth running, big torque, easy operation, etc.


Main components of transformer coil winding machine GDY-3T

o Main frame

o Square shaft

o Split tailstock

o Foot pedal

o Counter

o Control board


Main parameters of transformer coil winding machine GDY-3T

Typical standard specifications of transformer coil winding machine GDY-3T are shown below and the coil winding machine can also be manufactured as requested.

Central Height:

1000mm

Distance Between Ends:

2000mm

Square Shaft Size:

50x50mm

Winding Speed:

0 ~ 40rpm

Maximum Transverse Length:

1800mm

Counting Range:

0 ~ 9999.9

Maximum Loading Capacity:

3000KG

Motor Power:

7.5KW

Power Supply:

3-phase 380V 50Hz

Machine Dimension(LxWxH):

3600x900x1400mm


Semi Automatic Copper Coiling Winder Transformer Coil Winding Machine

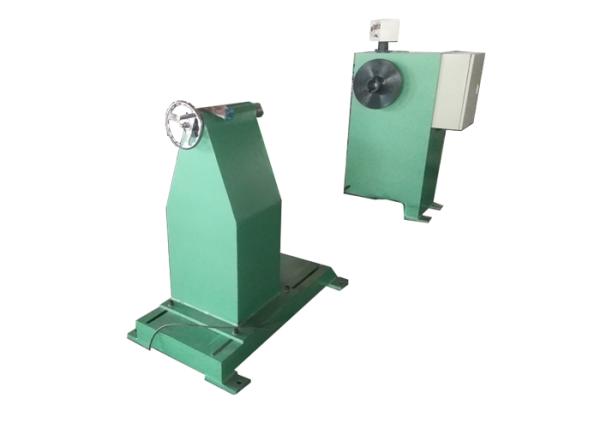

Fig 1: Transformer coil winding machine GDY-3T's full view


Semi Automatic Copper Coiling Winder Transformer Coil Winding Machine

Fig 2: Transformer coil winding machine GDY-3T's control panel
