Customized Transformer Foil And Coil Winding Machine
Customized Transformer Foil And Coil Winding Machine
Specifications
Brand Name :
STT
Model Number :
BRJ600-2
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T,L/C
Supply Ability :
100 sets per year
Delivery Time :
45 days
Packaging Details :
seaworthy packing
Product name :
transformer foil winding machine
Foil width :
150 ~ 600mm
Foil decoiler :
2 pcs
Rotataing speed :
0 ~ 26 rpm
Machine color :
as requested
Warranty period :
12 months
Insulation decoiler :
2 pcs
Foil cutter :
electric rolling scissor
Description

Factory Supplier Customized Transformer Foil And Coil Winding Machine


Quick details of transformer foil winding machine BRJ600-2

l Maximum foil width 600mm

l Maximum winding width 600mm

l Foil material ID 500mm

l Maximum foil material OD 1000mm

l Maximum winding speed 26rpm

l Winding power 11kw

l Automatic TIG welding

l Two foil decoilers


Description of transformer foil winding machine BRJ600-2

Transformer foil winding machine BRJ600-2 is a special coiling winding machine. The transformer foil winding machine is for winding both conductor foil and wire to make transformer coils. The foil winding machine can wind one or two layers of foil and one or two layers of insulation paper and the foil winding machine can also wind copper or aluminium wire. The transformer foil winding machine is provided with TIG welding unit, which can be used to weld foil and bus bar together. With HMI and PLC, the transformer foil winding machine can be operated easily and intuitively. The foil winding machine features slow starting, smooth winding, high torque and so on.

Main parameters of transformer foil winding machine BRJ600-2

Typical standard specifications of transformer foil winding machine BRJ600-2 are shown below and the foil winding machine can also be manufactured as requested.

Maximum Foil Width:

600mm

Conductor Foil Material OD.:

Ø1,000mm, maximum

Conductor Foil Material ID.:

Ø500mm

Number of Conductor Decoiler:

2 pcs

Winding Power:

11KW

Winding Shaft Size:

80×80×950 mm

Max. Winding Speed:

26 Rpm

Insulation Decoiler:

2 pcs

Insulation Material OD.:

≤Ø400mm

Insulation Material ID.:

Ø76mm

End-fill Strip Feeder:

6 pcs

Edge Alignment System:

Photoelectric sensing

Counting Turns Range:

0 ~ 9999.9

Power Supply:

3-phase 380V 50Hz




Customized Transformer Foil And Coil Winding Machine

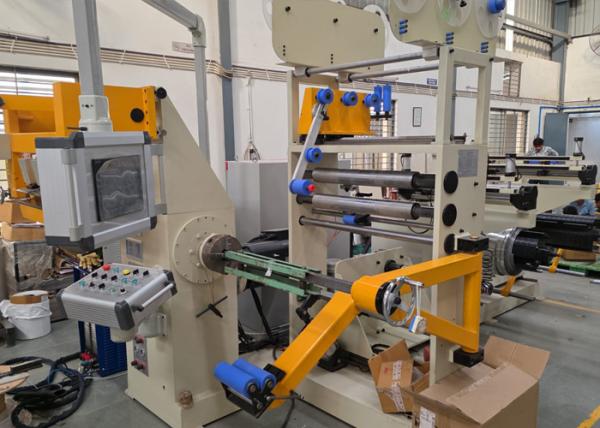

Fig 1: Transformer foil winding machine BRJ600-2's front view

Customized Transformer Foil And Coil Winding Machine
Fig 2 :Transformer foil winding machine BRJ600-2

Customized Transformer Foil And Coil Winding MachineCustomized Transformer Foil And Coil Winding MachineCustomized Transformer Foil And Coil Winding Machine


Customized Transformer Foil And Coil Winding Machine

Customized Transformer Foil And Coil Winding Machine
