Automatic Winding Machines Sheet Winder Copper Foil Winding Machine
Automatic Winding Machines Sheet Winder Copper Foil Winding Machine
Specifications
Brand Name :
STT
Model Number :
BRJ300-2
Certification :
CE, etc
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
45 days
Packaging Details :
seaworthy packing
Name :
transformer foil winding machine
Usage :
winding foil coil
Cu Foil Thickness :
0.2 ~ 2.0mm
Al Foil Thickness :
0.3 ~ 3.0mm
Control System :
PLC
Display System :
Touch Screen
Max. Width :
300mm
Speed :
0 ~ 35rpm
Power :
5.5kw
Warranty :
1 Year
Description

Automatic Winding Machines Sheet Winder Copper Foil Winding Machine

Description of foil winding machine BRJ300-2

Copper foil winding machine BRJ300-2 is a professional conductor foil winder. This kind of foil winding machine can be used to wind both copper foils and aluminium foils. The wound foil coils can be used in cast resin transformers and other similar products. The copper foil winding machine is provided with TIG welding unit to weld foil and busbar together. The copper foil winding machine can hand one or two layers of foils and handle one or two layers of insulation paper. With PLC control system and HMI, it is very easy to operate the copper foil winding machine.

Main components of copper foil winding machine BRJ300-2

1. Main steel welded frame

2. Two foil decoilers

3. Two foil feeder

4. Pressing roller

5. Winding unit

6. PLC based control system

7. Pneumatic system

8. TIG welding unit

Technical parameters of copper foil winding machine BRJ300-2

Typical standard specifications of copper foil winding machine BRJ300-2 are shown below and the copper foil winding machine can also be manufactured as requested.

Foil width: 100 ~ 300mm
Finished Coil Shape: Oval, circle and rectangular
Conductor Foil Material: Copper or Aluminum
Al Foil Thickness: 0.3 ~ 3.0 mm
Cu Foil Thickness: 0.2 ~ 2.0 mm
Foil Decoiler: 2 pcs
Foil Decoiler Length: 350 mm
Foil Decoiler Diameter Range: Ø400 ~ 520mm
Maximum Coil Weight: 750 KG
Pressing Roller: 2 set
Adjusting Speed Mode: Stepless adjustable
Rotating Speed: 0 ~ 35 rpm
Winding Power: 5.5KW
Insulation Decoiler Number: 2 pcs
Insulation Decoiler Length: 350mm
Insulation Decoiler Shaft: Expandable (pneumatic open/close action)
Programming Type: PLC
Touch Screen: 10inch (254mm)
Counting Range: 0 ~ 9999.9

Automatic Winding Machines Sheet Winder Copper Foil Winding Machine

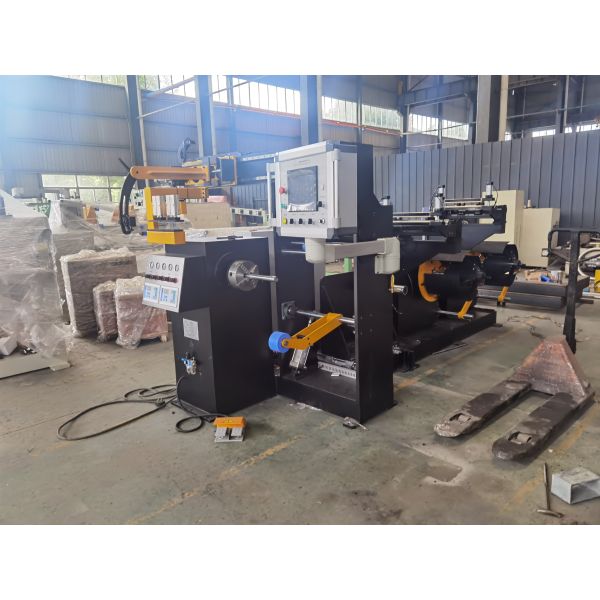

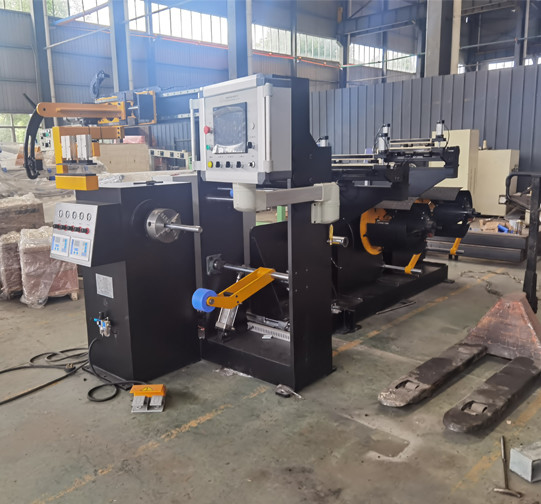

Fig 1: Copper foil winding machine BRJ300-2's front view

Automatic Winding Machines Sheet Winder Copper Foil Winding Machine

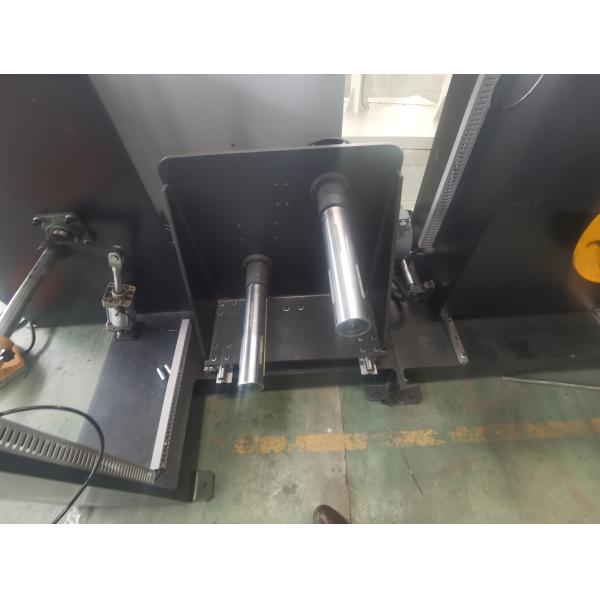

Fig 2: Copper foil winding machine BRJ300-2's insulation decoiler

Automatic Winding Machines Sheet Winder Copper Foil Winding MachineAutomatic Winding Machines Sheet Winder Copper Foil Winding MachineAutomatic Winding Machines Sheet Winder Copper Foil Winding MachineAutomatic Winding Machines Sheet Winder Copper Foil Winding MachineAutomatic Winding Machines Sheet Winder Copper Foil Winding MachineAutomatic Winding Machines Sheet Winder Copper Foil Winding MachineAutomatic Winding Machines Sheet Winder Copper Foil Winding MachineAutomatic Winding Machines Sheet Winder Copper Foil Winding MachineAutomatic Winding Machines Sheet Winder Copper Foil Winding Machine
