Transformer Making Machine PLC Control Automatic Coil Winding Machine
Transformer Making Machine PLC Control Automatic Coil Winding Machine
Specifications
Brand Name :
STT
Model Number :
ZPX1200
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
seaworthy packing
Product name :
automatic coil winding machine
Winding width :
1200mm, maximum
Motor power :
5.5kw
Speed :
0 ~ 80rpm
Servo motor :
0.75kw
Wire guide :
1 pc
Color :
as requested
Warranty :
12 months
Description

Transformer Making Machine PLC Control Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX1200

Transformer coil winding machine is a specialized transformer making machine, which is mainly used to wind wire coils. These wound coils can be used in transformers or other similar products. The automatic coil winding machine can wind both copper wires and aluminium wires. The coil winding machine is provided with one servo motor to drive wire guide to move for laying wire. The automatic coil winding machine is also provided with PLC and a touch screen, which makes the coil winding machine have high automation. It is very easy to operate the coil winding machine.

Features of automatic coil winding machine ZPX1200

  • slow starting
  • smooth running
  • optional color
  • big power
  • high automation
  • 12 months warranty

Main Parameters of automatic coil winding machine ZPX1200

The following is the standard specifications of automatic coil winding machine ZPX1200 and the machine can also be manufactured as requested.

Center Height From Floor: 900mm
Winding Square Shaft Size: 50x50x1500mm
Maximum Winding Width: 1200mm
Winding Power: 5.5kw
Winding Speed: 0 ~ 160 rpm
Regulation: stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: Φ0.3mm ~ Φ5.0mm
Maximum wound Coil OD.: Φ800mm
Maximum Capacity: 800kg
Counting Mode: 5-digit counting
Max. Numbers of Turns Preset: 9999.9
Counting Turn Range: 0 ~ 9999.9


Transformer Making Machine PLC Control Automatic Coil Winding Machine

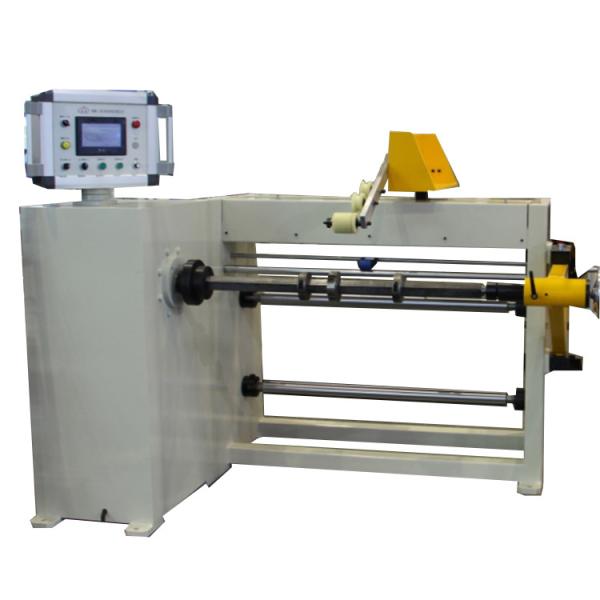

Fig 1: Automatic coil winding machine ZPX1200's front view

Transformer Making Machine PLC Control Automatic Coil Winding Machine
Fig 2: Automatic coil winding macihne ZPX1200's side view
