Hydraulic Driven Transformer Core Stacking Table with Hand Held Controller and Stepless Speed Regulating for 1500x1200mm Table Size
Hydraulic Driven Transformer Core Stacking Table with Hand Held Controller and Stepless Speed Regulating for 1500x1200mm Table Size
Hydraulic Driven Transformer Core Stacking Table with Hand Held Controller and Stepless Speed Regulating for 1500x1200mm Table Size
Hydraulic Driven Transformer Core Stacking Table with Hand Held Controller and Stepless Speed Regulating for 1500x1200mm Table Size
Specifications
Brand Name :
STT
Model Number :
FZT-3T
Place of Origin :
China
MOQ :
1 set
Price :
USD7000~8000
Payment Terms :
T/T,L/C
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
seaworthy packing
Product name :
transformer core stacking table
Function :
stacking silicon steel sheet
Table size :
1500x1200mm
Working height :
1000mm
Maximum loading capacity :
3000kg
Tilting :
hydraulic driven
Machin color :
as requested
Warranty period :
12 months
Description

Transformer Core Assembly Tilting Table Core Stacking Table


Description of transformer core stacking table FZT-3T

Transformer core stacking table FZT-3T is one kind of professional transformer core assembly equipment for stacking transformer iron core, then tilting the stacked core for taking it away from the table easily. The transformer core stacking table is provided with two beams, and the distance between the beams can be adjusted for being suitable for different sizes of cores. A hydraulic station for the core stacking table provides big force to tilt the stacked core up to 90°. With a hand held controller, The transformer core stacking table can be operated easily.


Quick details of transformer core stacking table FZT-3T

l The table size:1500×1200mm

l Table height:1000mm

l Power: 2.2kw

l Color: optional

Main components of transformer core stacking table FZT-3T

l Main frame

l Hydraulic station

l Linear guide

l Control panel

Main Parameters of transformer core stacking table FZT-3T

Typical standard specifications of transformer core stacking table FZT-3T are shown below and the transformer core stacking table can also be manufactured as requested.

No.

Item

FZT-3T

1

Table Size(LxW):

1500×1200mm

2

Table Height:

1000mm

3

Max. Capacity:

3000Kg

4

Max. Stacking Thickness:

900mm

5

Tilting Mode:

Hydraulic

6

Tilting Speed:

90°/Min(Stepless speed regulating)

7

Distance Between Columns:

Adjustable

8

Main Power:

2.2KW

9

Warranty:

12 months


Hydraulic Driven Transformer Core Stacking Table with Hand Held Controller and Stepless Speed Regulating for 1500x1200mm Table Size

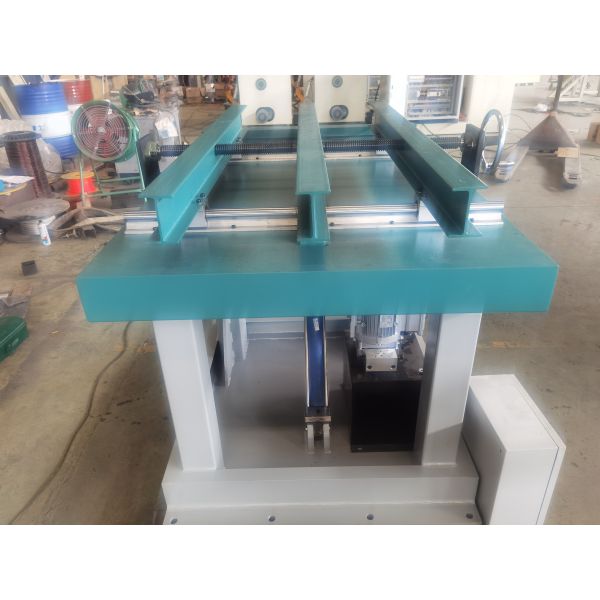

Fig 1: Transformer core stacking table FZT-3T's full view


Hydraulic Driven Transformer Core Stacking Table with Hand Held Controller and Stepless Speed Regulating for 1500x1200mm Table Size

Fig 2: Transformer core stacking table FZT-3T's hand wheel
