Automatic Coil Winding Machine with 600mm Max Winding Width 5X12mm Flat Wire and Ø0.3 ~ 5.0mm Round Wire for Transformer Coils
Automatic Coil Winding Machine with 600mm Max Winding Width 5X12mm Flat Wire and Ø0.3 ~ 5.0mm Round Wire for Transformer Coils
Specifications
Brand Name :
STT
Model Number :
ZPX600
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD8000-15000
Payment Terms :
T/T,L/C
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
seaworthy packing
Product ame :
coil winding machine
Usage :
making wire coil
Motor power :
4kw
Rotating speed :
0 ~ 200rpm
Wire material :
cu wire or al wire
Wire type :
flat or round wire
Color :
as request
Warranty :
12 months
Description

Automatic Wire Coiling Machine Transformer Coil Winding Machine



Introduction of automatic coil winding machine ZPX600

Automatic coil winding machine ZPX600 is a professional wire coil winder equipment. This kind of coil winding machine is widely used to wind transformer coils and other similar products. The automatic coil winding machine can be used to winding both copper wire and aluminium wire. The automatic coil winding machine’s wire guide is driven by a servo motor, which guarantees the wire guide move precisely. With the wire guide, the automatic coil winding machine can lay the wire automatically when winding wire. With PLC and HMI, the coil winding machine is with high automation and easy operation. The coil winding machine features slow starting, smooth running and so on.


Main features of automatic coil winding machine ZPX600

· slow starting

· smooth running

· strong pulling force

· high reliability

· high accuracy

· full function

Main parameters of automatic coil winding machine ZPX600

The standard specifications of automatic coil winding machine ZPX600 is as following and the coil winding machine can also be manufactured as requested.

Center Height:

900mm

Square Shaft Size:

40x40x900mm

Winding Width:

600mm max.

Servo Motor Power:

0.75kw

Winding Speed:

0 ~ 200 rpm

Max. Flat Wire Size:

5X12mm

Round Wire:

Ø0.3 ~ 5.0mm

Finished Coil OD.:

Ø600mm max

Counting Mode:

5-digit counting

Counting Turn Range:

0 - 9999.9

Automatic Coil Winding Machine with 600mm Max Winding Width 5X12mm Flat Wire and Ø0.3 ~ 5.0mm Round Wire for Transformer Coils

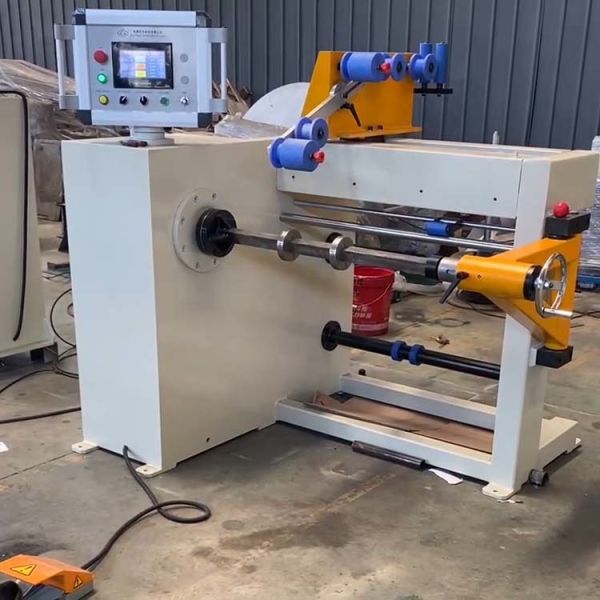

Fig 1: Automatic coil winding machine ZPX600's front view


Automatic Coil Winding Machine with 600mm Max Winding Width 5X12mm Flat Wire and Ø0.3 ~ 5.0mm Round Wire for Transformer Coils

Fig 2: Automatic coil winding machine ZPX600's wire guide
