Automatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding Power
Automatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding Power
Automatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding Power
Automatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding Power
Automatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding Power
Automatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding Power
Specifications
Brand Name :
STT
Model Number :
BRJ300-2
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T,L/C
Supply Ability :
100 sets per year
Delivery Time :
45 days
Packaging Details :
seaworthy packing
Name :
foil winding machine
Foil Width :
200 ~ 1300mm
Winding Speed :
0 ~ 16 rpm
Foil Thickness :
0.2 ~ 3.0mm
Winding power :
22KW
Foil Decoiler :
Two sets
Machine Color :
as requested
Warranty period :
12 months
Description

Automatic Cold Pressure Welding Automatic Foil Winding Machine


Description of foil winding machine BRJ1300-2

Automatic foil winding machine BRJ1300-2 is a professional foil sheet winder equipment. The foil winding machine is with two servo motors to drive two winding heads, which can assure the two winding heads wind synchronously. With a cold pressure welding unit, the foil winding machine can weld foil with busbar together. With two sets of foil decoilers, the foil winding machine can wind one or two layers of foil. With PLC and HMI, the foil winding machine features slow starting, smooth running, precise action and so on.


Main components of copper foil winding machine BRJ1300-2

1. Main steel welded frame

2. Two foil decoilers

3. Two foil feeder

4. Pressing roller

5. Winding unit

6. PLC based control system

7. Pneumatic system

8. Cold pressure welding unit

Technical parameters of copper foil winding machine BRJ1300-2

Typical standard specifications of copper foil winding machine BRJ300-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.

Foil width:

1300mm, max

Finished Coil Shape:

Oval, circle and rectangular

Conductor Foil Material:

Copper or Aluminum foil

Al Foil Thickness:

0.3 ~ 3.0 mm

Cu Foil Thickness:

0.2 ~ 2.0 mm

Foil Decoiler:

2 pcs

Foil Decoiler Length:

1350 mm

Foil Decoiler Diameter Range:

Ø480 ~ 520mm

Maximum Coil Weight:

750 KG

Pressing Roller:

2 set

Adjusting Speed Mode:

Stepless adjustable

Rotating Speed:

0 ~ 16 rpm

Insulation Decoiler Number:

2 pcs

Insulation Decoiler:

1350mm

Insulation Decoiler Shaft:

Expandable (pneumatic open/close action)

Programming Type:

PLC

Touch Screen:

10inch (254mm)

Counting Range:

0 ~ 9999.9

Winding Power:

22KW

Automatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding Power

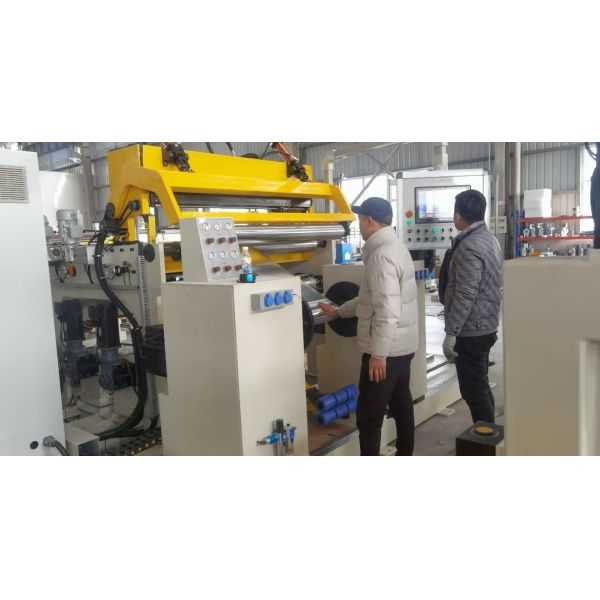

Fig 1: Copper foil winding machine BRJ1300-2's front view

Automatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding Power

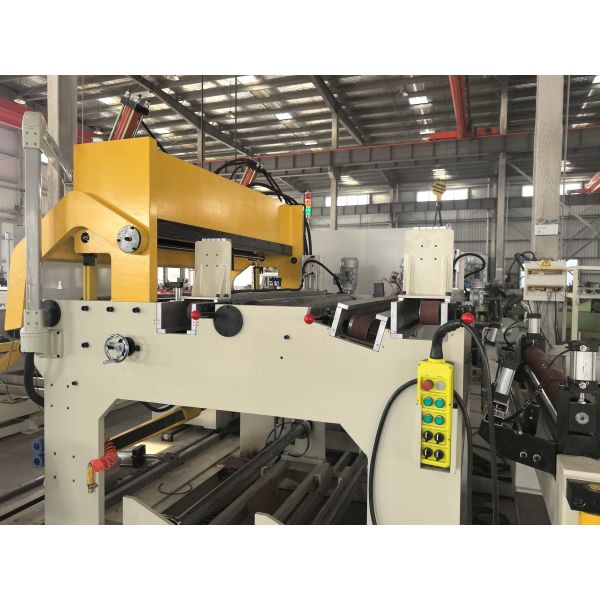

Fig 2: Copper foil winding machine BRJ1300-2's grinding unit

Automatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding PowerAutomatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding PowerAutomatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding PowerAutomatic Copper Foil Winding Machine with Cold Pressure Welding, Two Servo Motors, and 22KW Winding Power
