Automatic Coil Winding Machine with 1000mm Winding Width 5.5kw Power and 0 ~ 160rpm Speed for Transformer Coils
Automatic Coil Winding Machine with 1000mm Winding Width 5.5kw Power and 0 ~ 160rpm Speed for Transformer Coils
Automatic Coil Winding Machine with 1000mm Winding Width 5.5kw Power and 0 ~ 160rpm Speed for Transformer Coils
Automatic Coil Winding Machine with 1000mm Winding Width 5.5kw Power and 0 ~ 160rpm Speed for Transformer Coils
Automatic Coil Winding Machine with 1000mm Winding Width 5.5kw Power and 0 ~ 160rpm Speed for Transformer Coils
Automatic Coil Winding Machine with 1000mm Winding Width 5.5kw Power and 0 ~ 160rpm Speed for Transformer Coils
Specifications
Brand Name :
STT
Model Number :
ZPX1000
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD5000 ~ 15000
Payment Terms :
T/T,L/C
Supply Ability :
100 sets per year
Delivery Time :
35 days
Packaging Details :
seaworthy packing
Name :
coil winding machine
Winding Width :
1000mm, maximum
Winding Power :
5.5kw
Winding Speed :
0 ~ 160rpm
Wire Guide :
driven by servo motor
Warranty Period :
12 months
Power Supply :
AC 3-phase 380V 50Hz
Wire Diameter :
0.3 ~ 5.0mm
Description

Wire Winder Automatic Laying Wire Transformer Coil Winding Machine


Description of automatic coil winding machine ZPX1000

Automatic coil winding machine ZPX1000 is a special coiling winder equipment. This kind of automatic coil winding machine is provided with main winding motor, servo motor, PLC, and so on. The coil winding machine is mainly used to wind copper wire or aluminium wire. The wound coils can be used to make transformer or other similar products. With a wire guide driven by a servo motor, the automatic coil winding machine can lay wire automatically when winding wire.With HMI and PLC control system, the automatic coil winding machine features slow starting, smooth running, high automation and easy operation, etc.


Features of automatic coil winding machine ZPX1000

· slow starting

· smooth running

· accurate control

· big torque

· easy operation

· 12 months warranty


Main parameters of automatic coil winding machine ZPX1000

The following is the standard specifications of the automatic coil winding machine ZPX1000 and the automatic coil winding machine can also be manufactured as requested.

Winding Shaft Center Height:

900mm

Winding Shaft Size:

40x40x1300mm

Maximum Winding Width:

1000mm

Winding Power:

5.5kw

Rotating Speed:

0 ~ 160 rpm

Max. Flat Wire Size:

5mm x 12mm

Round Wire Diameter:

Φ0.3mm ~ Φ5.0mm

Maximum wound Coil OD.:

Φ800mm

Maximum Capacity:

800kg

Minimum Spread Pitch:

0.01mm

Counting Mode:

5-digit counting

Counting Range:

0 ~ 9999.9

Winding Shaft Center Height:

900mm

Winding Shaft Size:

40x40x1300mm

Maximum Winding Width:

1000mm

Winding Power:

5.5kw

Rotating Speed:

0 ~ 160 rpm

Max. Flat Wire Size:

5mm x 12mm

Round Wire Diameter:

Φ0.3mm ~ Φ5.0mm

Maximum wound Coil OD.:

Φ800mm

Maximum Capacity:

800kg

Minimum Spread Pitch:

0.01mm

Counting Mode:

5-digit counting

Counting Range:

0 ~ 9999.9


Automatic Coil Winding Machine with 1000mm Winding Width 5.5kw Power and 0 ~ 160rpm Speed for Transformer Coils

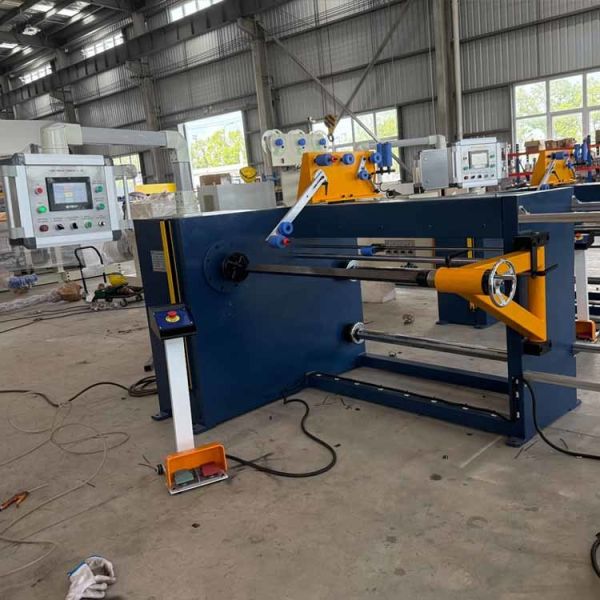

Fig 1: Automatic coil winding machine ZPX1000's front view


Automatic Coil Winding Machine with 1000mm Winding Width 5.5kw Power and 0 ~ 160rpm Speed for Transformer Coils

Fig 2: Automatic coil winding machine ZPX1000's wire guide




Automatic Coil Winding Machine with 1000mm Winding Width 5.5kw Power and 0 ~ 160rpm Speed for Transformer CoilsAutomatic Coil Winding Machine with 1000mm Winding Width 5.5kw Power and 0 ~ 160rpm Speed for Transformer Coils

Automatic Coil Winding Machine with 1000mm Winding Width 5.5kw Power and 0 ~ 160rpm Speed for Transformer Coils

Automatic Coil Winding Machine with 1000mm Winding Width 5.5kw Power and 0 ~ 160rpm Speed for Transformer Coils
