Automatic Core Cutting Machine with 120m/min Cutting Speed for 0.23 ~ 0.5mm Silicon Steel Strip and PLC Control
Automatic Core Cutting Machine with 120m/min Cutting Speed for 0.23 ~ 0.5mm Silicon Steel Strip and PLC Control
Specifications
Supply Ability :
100 sets per year
Strip cut width :
25 ~ 400mm
Power :
12.5kw
Delivery Time :
90 days
Function :
cutting silicon steel sheet
Model Number :
DHJ400
Warranty :
12 months
Price :
negotiable
Packaging Details :
seaworthy packing
Color :
customizable
Payment Terms :
T/T,L/C
Strip cut thickness :
0.23 ~ 0.5mm
Cutting speed :
120m/min
Product name :
reactor core cutting machines
Brand Name :
STT
Place of Origin :
China
MOQ :
1 set
Description

Mould Type Reactor Core Making Cut To Length Line Automatic Core Cutting Machine

Description of automatic core cutting machine DHJ600

Automatic mould type core cutting machine DHJ600 is a professional cutter, which can be used to cut silicon steel strip for making reactor cores. Up to 600mm width silicon steel strip can be cut with this kind of automatic core cutting machine, moreover, holes also can be punched as requested too. The automatic core cutting machine is provided with servo motors to drive cutting and punching actions. Servo motors can guarantee the accuracy of the actions. The cutter and shearing blade of the automatic core cutting machine adopts carbide cutter knife with HRC88 ~ 90 hardness. This kind of blade only need regrind after cutting more than 5 million times. With PLC control , it is very easy to operate the automatic core cutting machine through a touch screen.

Quick details of automatic core cutting machine

l Cutting sheet thickness 0.23 ~ 0.35mm

l Cutting sheet width 25 ~ 400mm

l Cutting sheet length 10 ~ 9999mm

l Feeding speed 180m/min

l Total power 12.5kw

l One year warranty

Main components of automatic core cutting machine DHJ600

1.Dereeler for placing steel material

2.Main frame

3.Feeding sheet unit

4.Hole punching device

5.Shearing unit

6.Stacking table

7.Control system

Main Parameters

Typical standard specifications of DHJ600 are shown below and the machine can also be manufactured as requested.

1

Working Platform Height:

900mm

2

Dereeler:

Hydraulic expanding

3

Dereeler Expanding Range:

Φ470 ~ Φ508mm

4

Cutting Sheet Thickness:

0.23 ~ 0.35mm

5

Cutting Sheet Width:

25 ~ 600mm

6

Cutting Sheet Length:

10 ~ 9999mm

7

Feeding Sheet Speed:

180m/min

8

Feeding Tolerance:

±0.05mm/m

9

Height of Burr After Cutting:

Less than 0.02mm

10

AC Power:

13kw


Automatic Core Cutting Machine with 120m/min Cutting Speed for 0.23 ~ 0.5mm Silicon Steel Strip and PLC Control

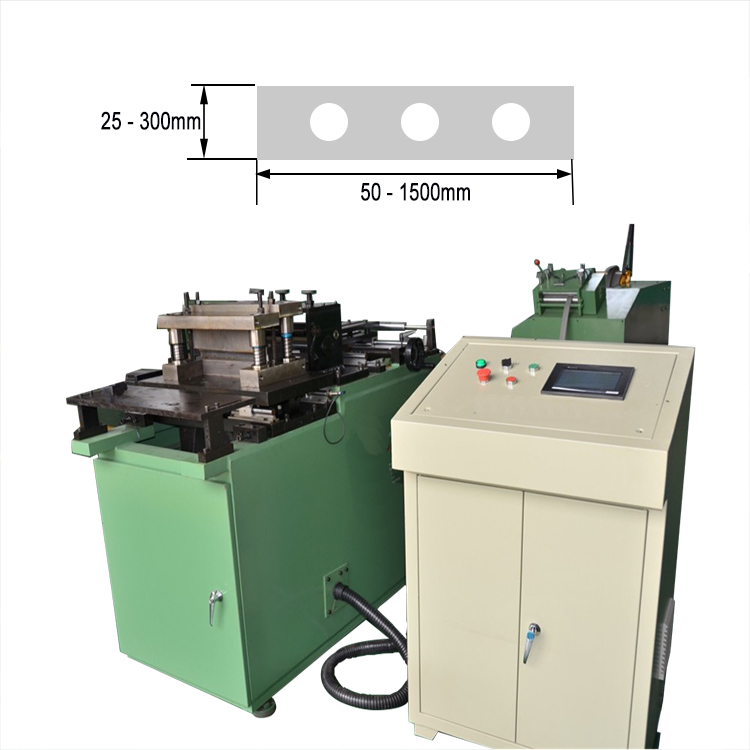

Fig 1: Core cutting machine DHJ600's full view


Automatic Core Cutting Machine with 120m/min Cutting Speed for 0.23 ~ 0.5mm Silicon Steel Strip and PLC Control

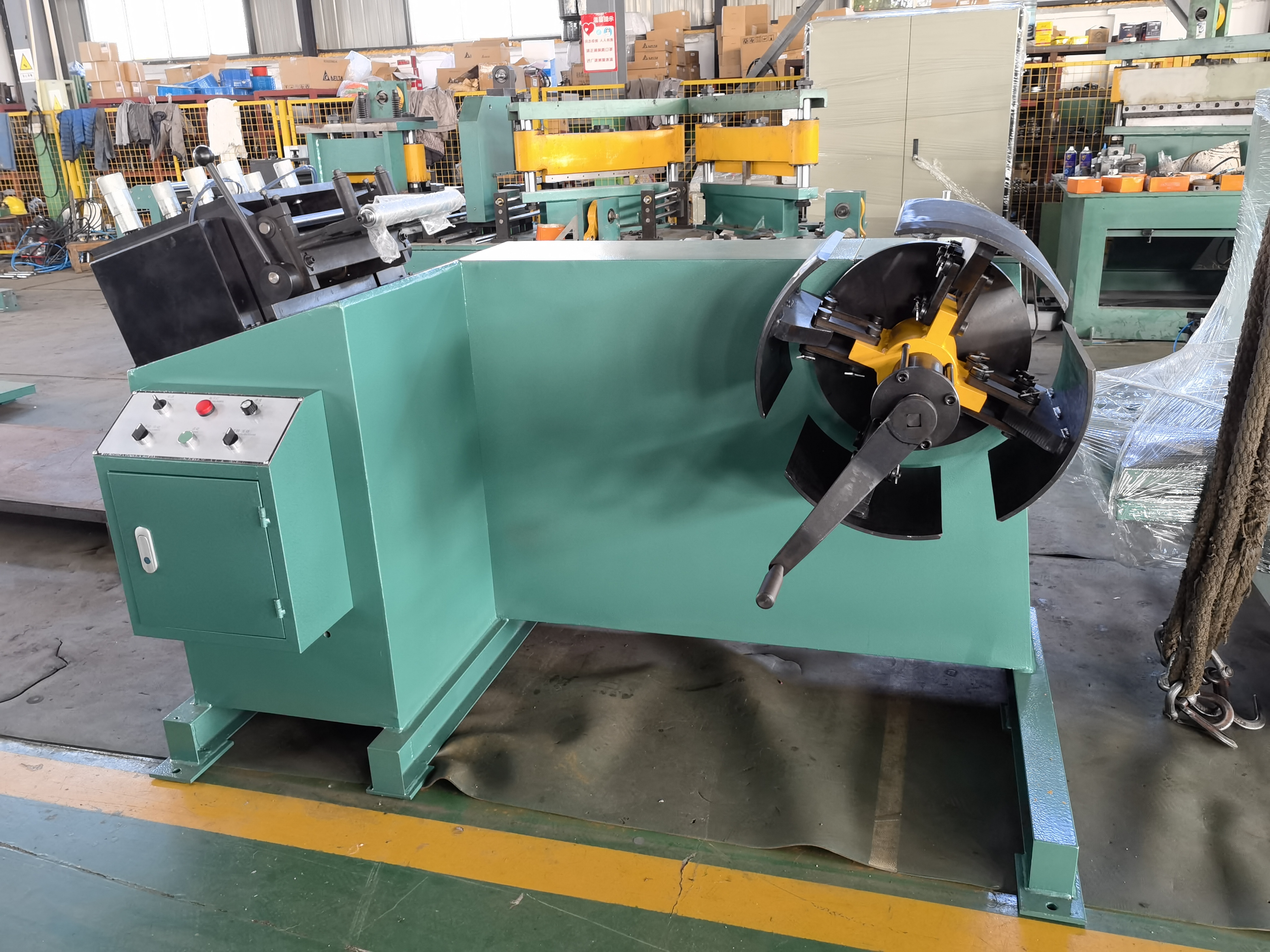

Fig 2: Core cutting machine DHJ600's decoiler
